Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX 2Ball Bearing Smart Fan

$14.99

100 in stock

SKU: NFD1270155B-1M Category: Brand:

Description

Manufacturer: Y.S.Tech
Model: Smart Fan NFD1270155B-1M

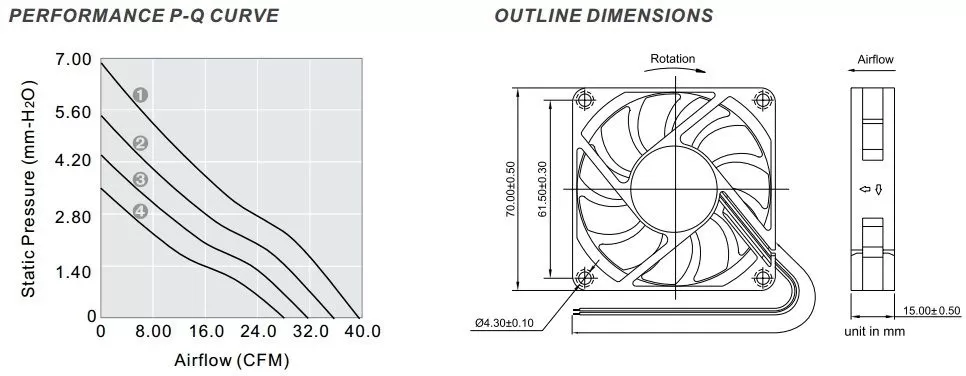

Size: 70mm X 70mm X 15mm (2.76 x 2.76 x 0.59 inches)
Bearing: Double Ball Bearing (lasts longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 65,000 hours MTBF (mean time between failures)
Built-in Tempurature Sensor (thermostat / thermister)
Speed: up to 5500 RPM (temperature dependent)
Airflow: up to 39.7 CFM (1.12 m3/min) (temperature dependent)
Air Pressure: up to 6.8 mmAq (66.68Pa, 0.268inAq) (temperature dependent)
Noise Level: up to 45.5 dBA (tempurature dependent)
Voltage: 12VDC
Operating range: from 7V to 13.2V
Amperage: up to 0.4 Amps (temperature dependent)
Wattage: up to 4.8 Watts (tempurature dependent)
Power Connector: 3pin Standard ATX
Wire Conductors: 3wire
Wire Length: 8inch (.32cm)

Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX  2Ball Bearing Smart Fan

Y.S.Tech NFD1270155B-1M 12VDC 3pin ATX  2Ball Bearing Smart Fan

Additional information

Quantity

1

Current

0.40 Amp

Startup Voltage

7V

Max. Air Flow Volume

40 CFM

UPC

Does not apply

Voltage Operating Range

7V to 13.2V

MPN

NFD1270155B NFD1270155B-1M NFD1270155B1M 7015

Model

Smart Fan

Connector Type

3pin Standard ATX

Noise

45.5dBA

Power Connection

3-Pin

Brand

Y.S. Tech

Bearing Type

Ball

Fan Diameter

70mm

Air Pressure

6.8mmH2O

Type

Cooling Fan

Fan Thickness

15mm

Voltage

12V

Max. Fan Speed

5500RPM
