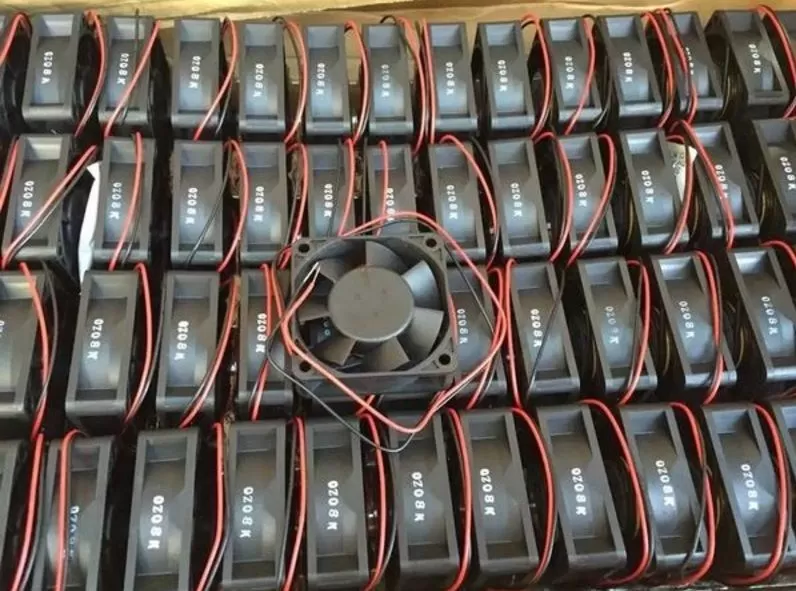

Delta AFB0605MD 5VDC 2wire Industrial Double Ball Bearing Fan

$12.99

25 in stock

SKU: AFB0605MD Category: Brand:

Description

Manufacturer: Delta
Model: AFB0605MD

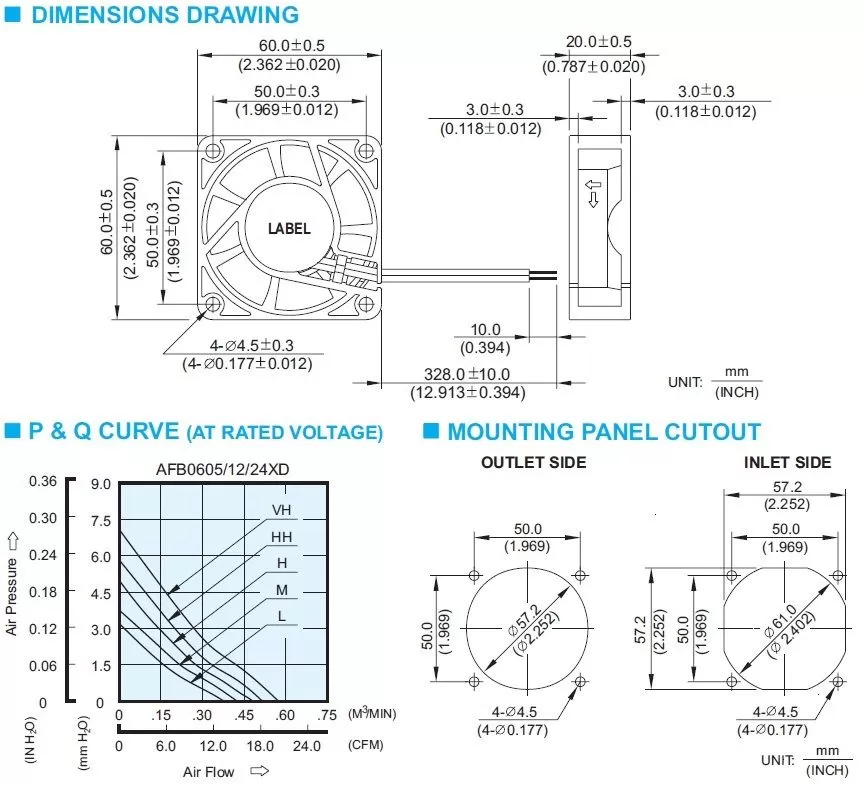

Size: 60mm X 60mm X mm (2.36 x 2.36 x 0.79 inches)
Bearing: Double Ball Bearing = twice the balls than regular ball bearing for less friction (lasts longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: will last longer than fan with regular Ball, Sleeve or Rifle Bearings because it has less friction
Speed: 3600 RPM
Airflow: 14.83 CFM (0.42 m3/min)
Air Pressure: 3.83 mmAq (37.56Pa, 0.151inAq)
Noise Level: 26 dBA
Voltage: 5VDC
Operating range: from 4.5V to 5.5V
Amperage: 0.29 Amps
Wattage: 1.5 Watts
Power Connector: tinned end (no connector)
Wire Conductors: 2wire
Wire Length: 18inch (45.72cm)

Delta AFB0605MD 5VDC  2wire Industrial Double Ball Bearing Fan

Delta AFB0605MD 5VDC  2wire Industrial Double Ball Bearing Fan

Delta AFB0605MD 5VDC  2wire Industrial Double Ball Bearing Fan

Additional information

Current

0.29Amps

Air Pressure

3.83mmH2O

Fan Thickness

20mm

Voltage Operating Range

4.5V to 5.5V

Quantity

1

Noise

26dBA

UPC

Does not apply

Voltage

5V

Max. Air Flow Volume

15 CFM

Type

Cooling Fan

Brand

Delta

MPN

AFB0605MD AFB0605 6025

Fan Diameter

60mm

Max. Fan Speed

3600RPM

Bearing Type

Ball

Model

6025
