NMB 2410ML-01W-B39-XA1 5VDC/5V 3pin/Wire Ball Bearing Fan

$14.60

25 in stock

SKU: 2410ML-01W-B39 Category: Brand:

Description

Manufacturer: NMB Minebea by Panaflow
Model: 2410ML-01W-B39 aka 2410ML-01W-B39-XA1

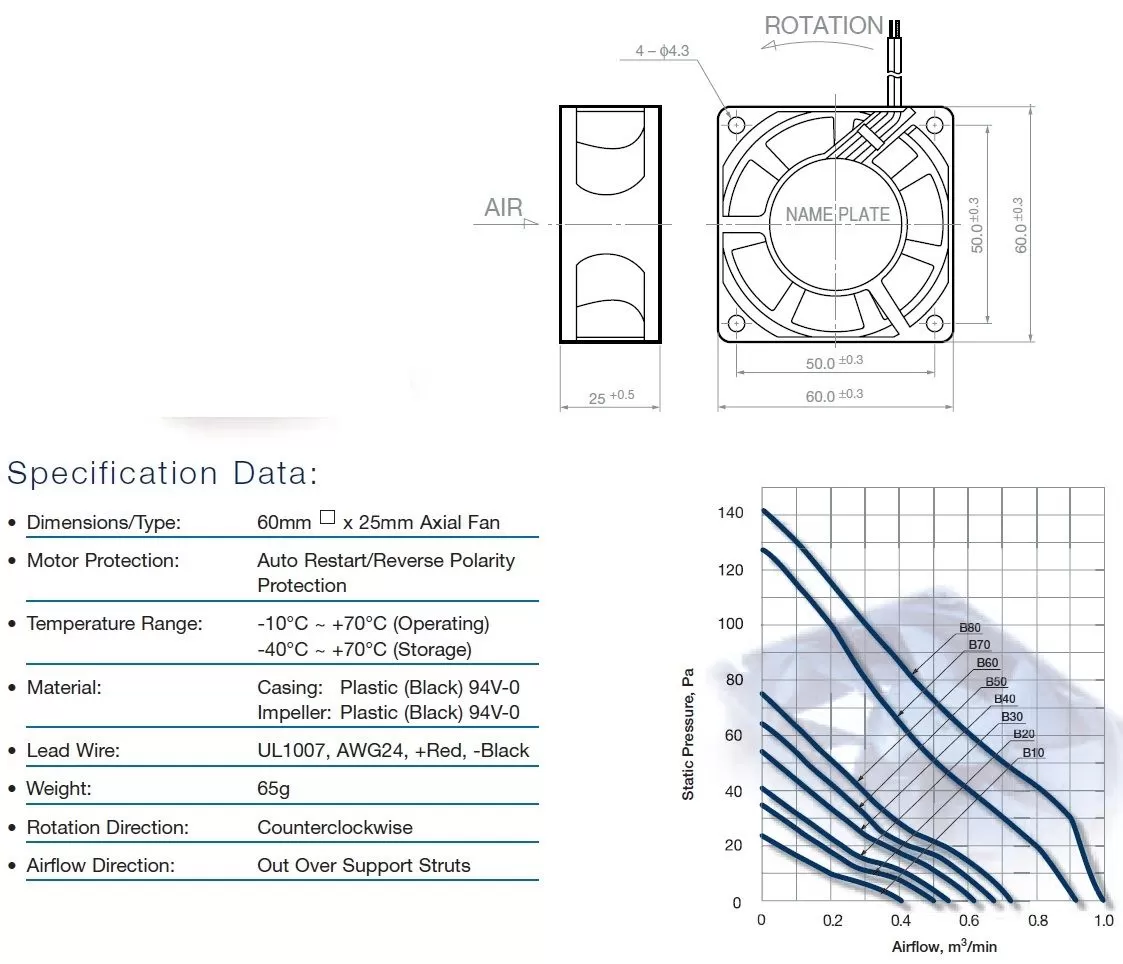

Size: 60mm X 60mm X 25mm (2.36 x 2.36 x 0.98 inches)
Bearing: Ball Bearing (lasts longer and is quieter than Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: 50,000 hours MTBF (mean time between failures)
Speed: 4550 RPM
Airflow: 21.54 CFM (0.61 m3/min)
Air Pressure: 5.29 mmAq (51.9Pa, 0.8inAq)
Noise Level: 45 dBA
Voltage: 5VDC
Operating range: from 4.5V to 5.5V
Amperage: 0.59 Amps
Wattage: 2.95 Watts

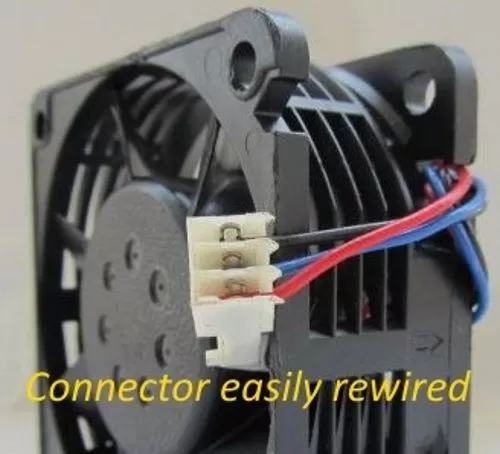

Power Connector: 3pin (Red=+DC, Blue=Sensor, Black=-DC)
Wire Conductors: 3wire
Wire Length: 3inch (7.62cm)

NMB 2410ML-01W-B39-XA1 5VDC/5V 3pin/Wire Ball Bearing Fan

NMB 2410ML-01W-B39-XA1 5VDC/5V 3pin/Wire Ball Bearing Fan

NMB 2410ML-01W-B39-XA1 5VDC/5V 3pin/Wire Ball Bearing Fan

Additional information

Power Connection

3-Pin

Current

0.16Amps

Noise

45dBA

UPC

Does not apply

Air Pressure

5.29mmH2O

Voltage Operating Range

4.5V to 5.5V

Conductor

3wire

Connector Type

3pin

Quantity

1

Fan Thickness

25mm

Max. Fan Speed

4550RPM

Type

Cooling Fan

Brand

NMB Minebea

Voltage

5V

Bearing Type

Ball

Model

6025

Max. Air Flow Volume

21.54 CFM

Fan Diameter

60mm

MPN

2410ML-01W-B39 2410ML-01W-B39-XA1 6025
