Description

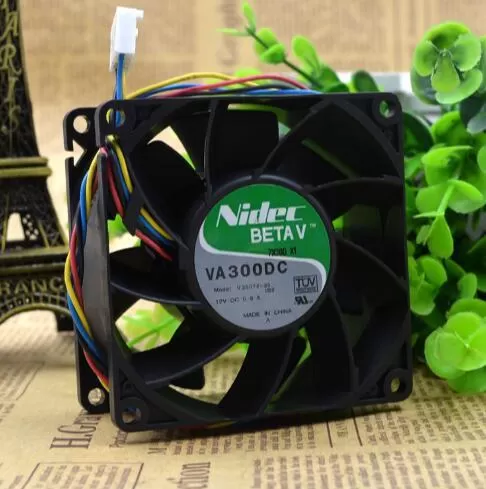

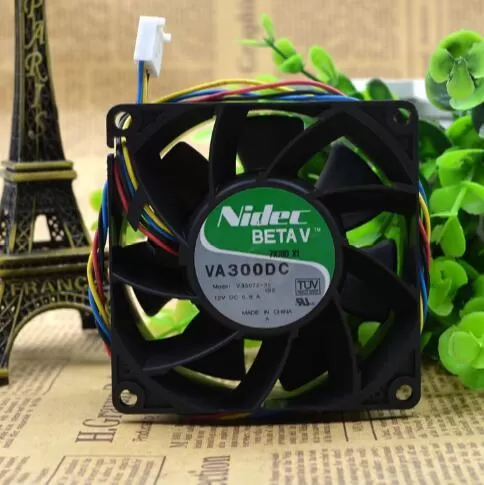

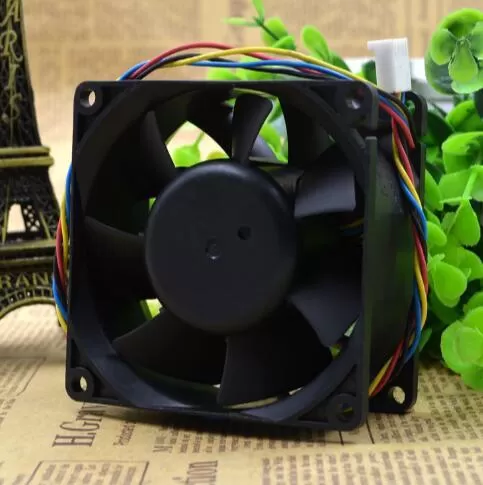

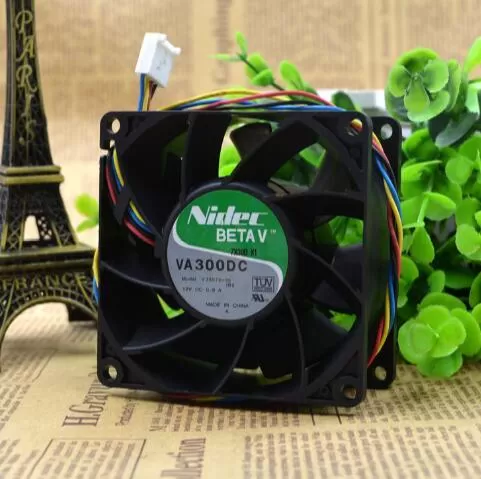

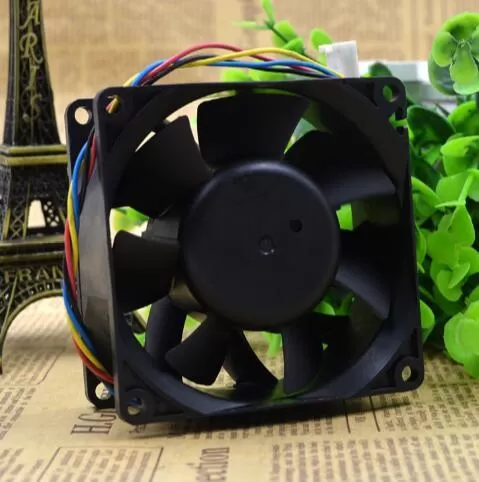

Brand: NIDEC
Appearance size: 80 x 80 x 38mm
Rated voltage: DC12V
Voltage range: DC7.0V-13.6V
Input power: 0.9A (nominal current)
Rated speed: r.p.m 1800-5600
Temperature range: -10.. 70 degrees C
Life expectancy: 25 L10 C is expected to be 50000 hours
Bearing structure: maintenance free double ball bearings
Connection mode: + Red – black, blue, blue
Maximum air volume: 61.8 CFM
Minimum wind pressure: 0.. 57.2 Pa
Noise indicators: dB 23-48.0 (A)
Function Description: electronic switch to rotor DC fan, complete electronic commutation parts
