Sale!

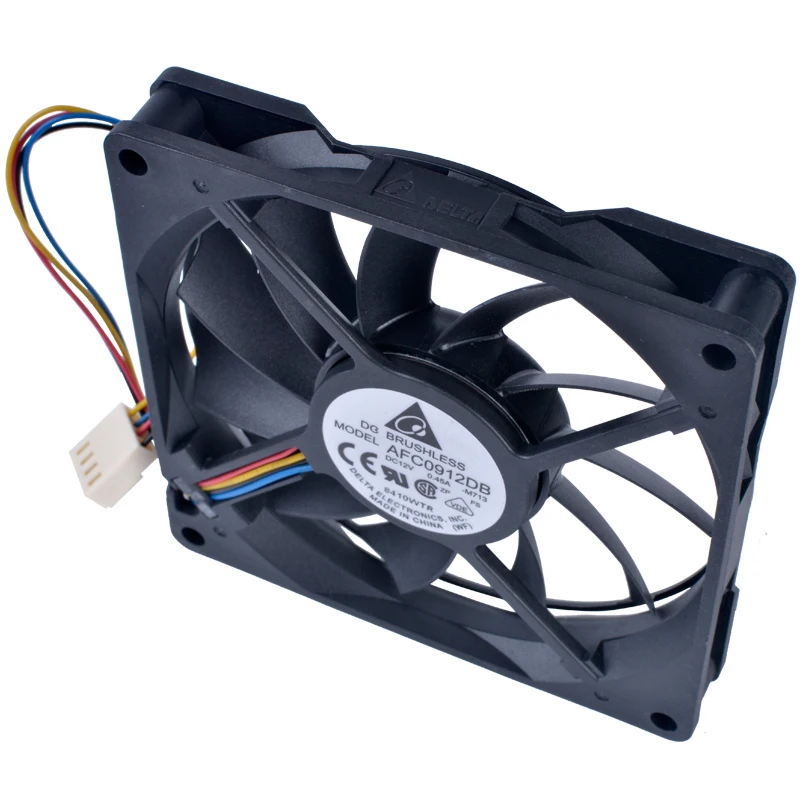

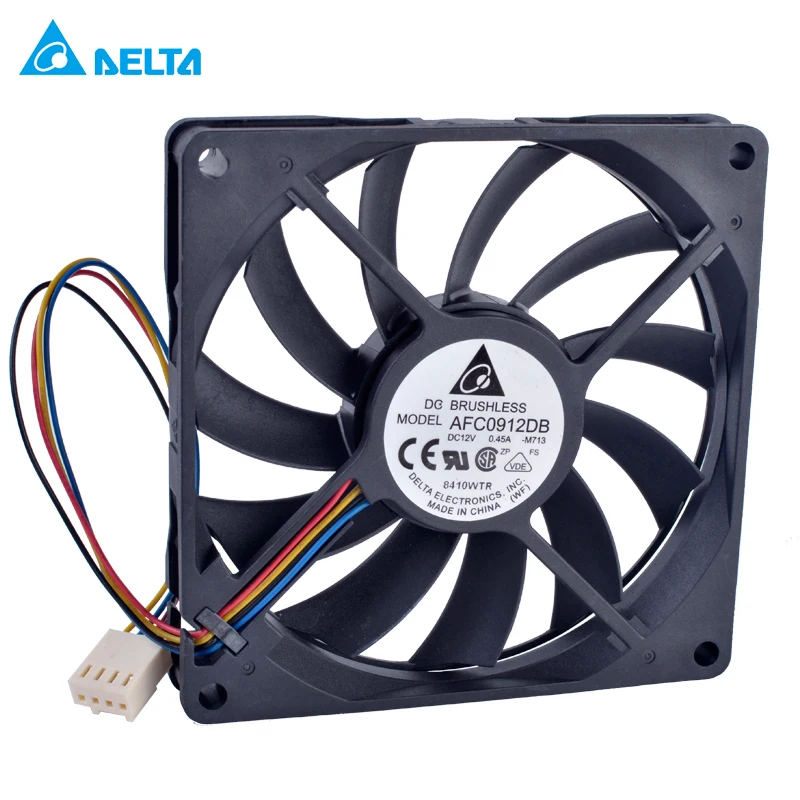

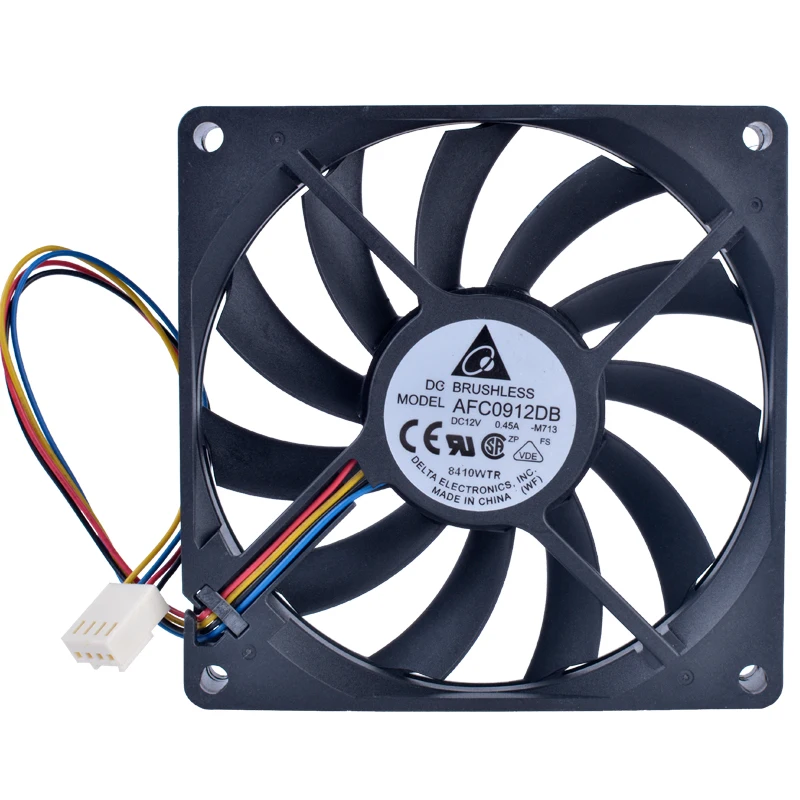

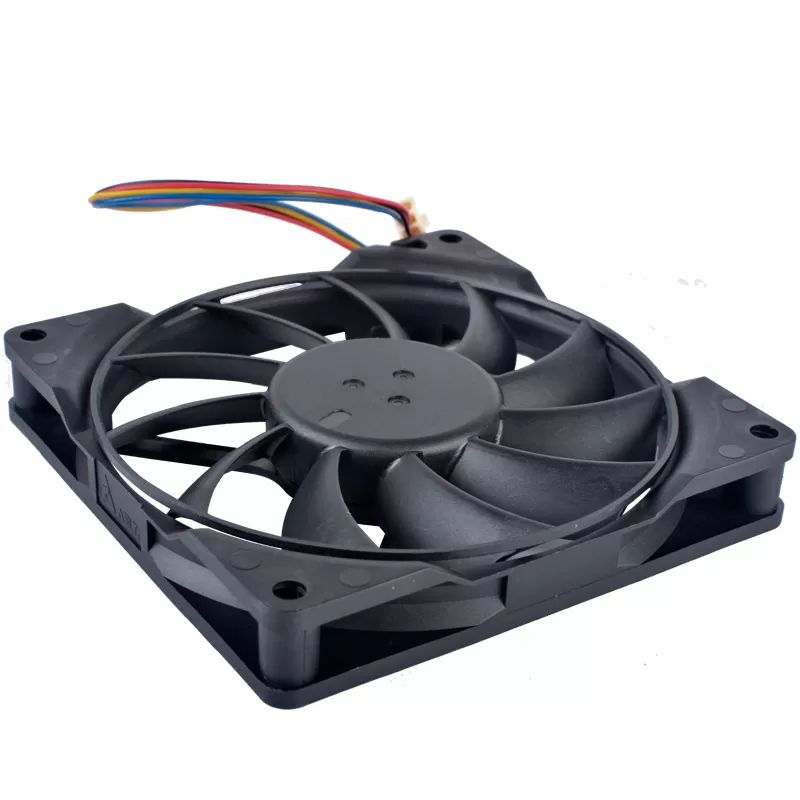

DELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fan

$10.00 $9.40

576 in stock

SKU: 32856480773 Category: Tag: Brand:

Description

Brand: Taiwan DELTA.

Producer: Delta Electronics Public Co., Ltd.

Model number: AFC0912DB

Size: 92 x 92 x 15mm.

Rated voltage: DC12V.

Voltage range: DC7.0to13.8V.

Motor power: 0.45a (nominal current) temperature sensing.

Rated revolution: 3700rpm.

Maximum air volume: 1.11 m³37.61 CFM/min

Noise indicator: 37.5 dB(A)

Temperature range: -30…+ 75 ° c.

Bearing structure: no maintenance double ball bearing.

Fan frame: injection molding, PBT+ 30% glass fiber +VO flame retardant.

Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.

Fan rotation: the direction of the fan blade is counterclockwise.

Power supply range: plus or minus 15% of rated power supply.

Insulation resistance: greater than 500 megohm.

Working life: 100, 000 hours when the ambient temperature is 25.

DELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fanDELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fanDELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fanDELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fanDELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fanDELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fan

Additional information

Brand Name

Delta

Power Interface

4PIN

Fan Life

100000 hrs

Fan Size

Other

Type

Fan

Noise

Other

Package

No

Bearing

Two Ball Bearing

Application

Computer Case

Fan Speed Control

3500RPM

Model Number

AFC0912DB

Lines

4 Lines

Power

3.6W

Air Volume

38CFM
