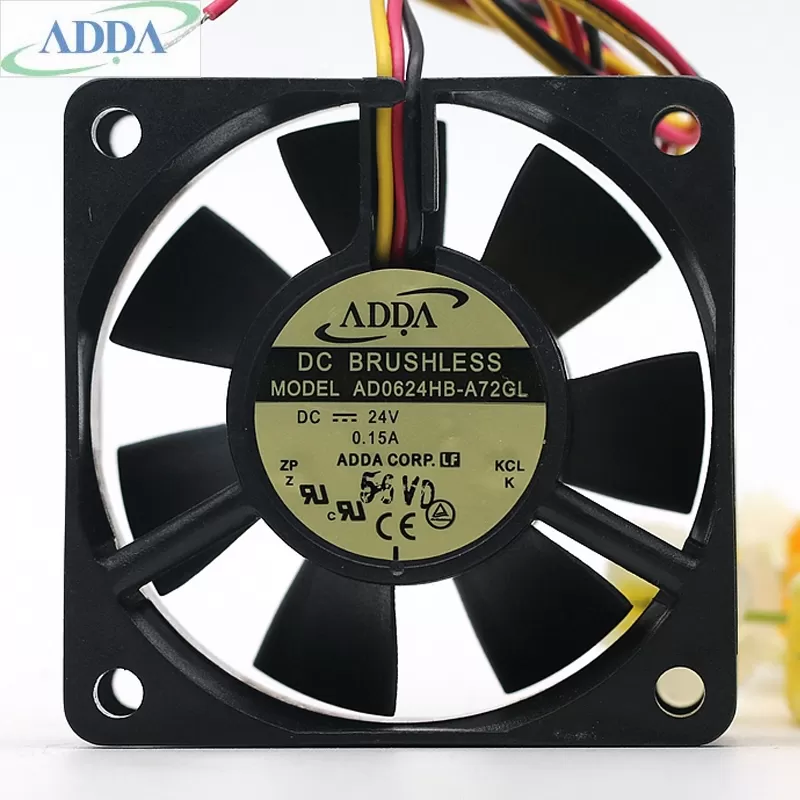

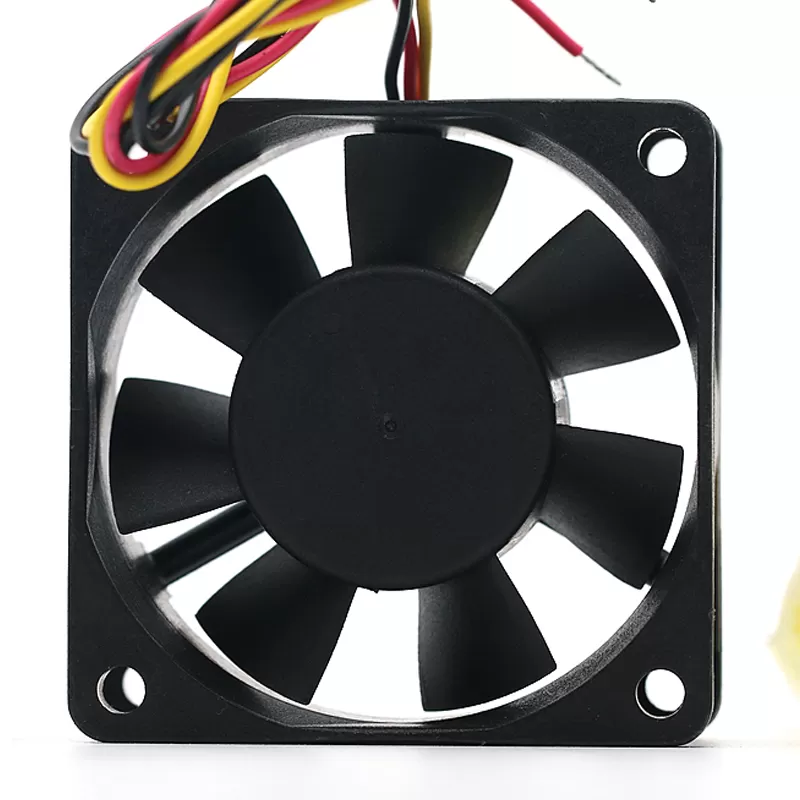

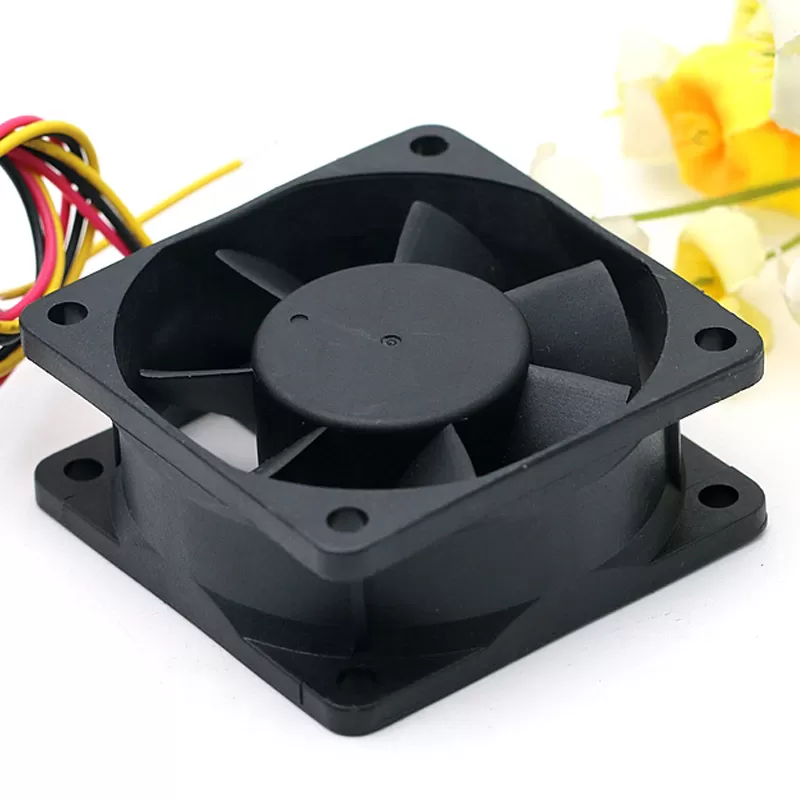

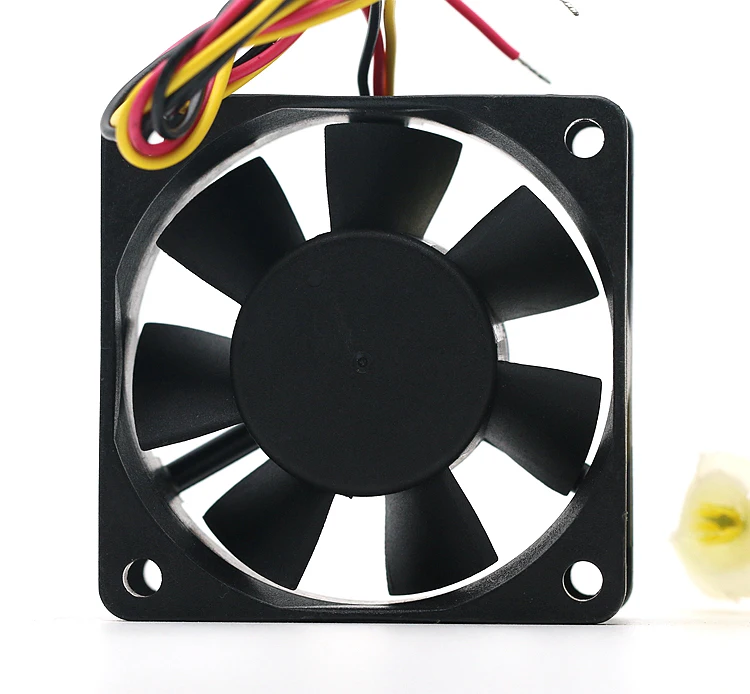

Original ADDA AD0624HB-A72GL 6025 24V 0.15A 6CM three line inverter server cooling fan 23.98CFM 4500 rpm

$12.99 $9.87

67 in stock

SKU: 32813066043 Category: Tag: Brand:

Description

[rated current] 0.15A
[exterior size] 60 x 60 x 25mm
[voltage range] DC16.0-28.0V
[input power] 3.6W
[rated speed] 4500 rpm
[range of temperature] -10… 70 degrees C
[life expectancy] At 25 degrees C, L10 is expected to live 40000 hours
[bearing structure] Maintenance free double ball bearing
[direction of rotation] The wind is expelled from the support and rotates counter clockwise against the rotor
[wiring mode] Red black signal yellow
[motor protection] Off grade protection and blocking and lock flow protection
[maximum air volume] 23.98CFM
[minimum wind pressure] 0.43 Pa
[noise indicators] 33.9 dbA
[material] Fiberglass reinforced plastic, PBT case, PA blade

Original ADDA AD0624HB-A72GL 6025 24V 0.15A 6CM three line inverter server cooling fan 23.98CFM 4500 rpm

Original ADDA AD0624HB-A72GL 6025 24V 0.15A 6CM three line inverter server cooling fan 23.98CFM 4500 rpm

Additional information

Heatsink Material

Copper & Aluminum

Bearing

Two Ball Bearing

Type

Fan

Fan Life

50000 hrs

Fan Size

Other

Application

Computer Case

Model Number

AD0624HB-A72GL

Brand Name

ADDA

Compatible CPU

yes

Lines

3 Lines

Power Interface

3PIN

Package

Yes
