Description

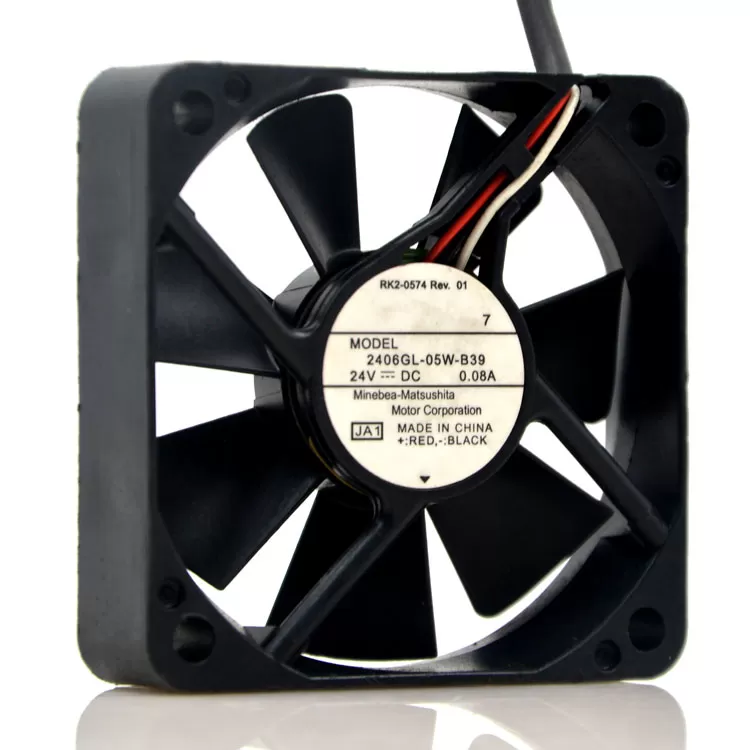

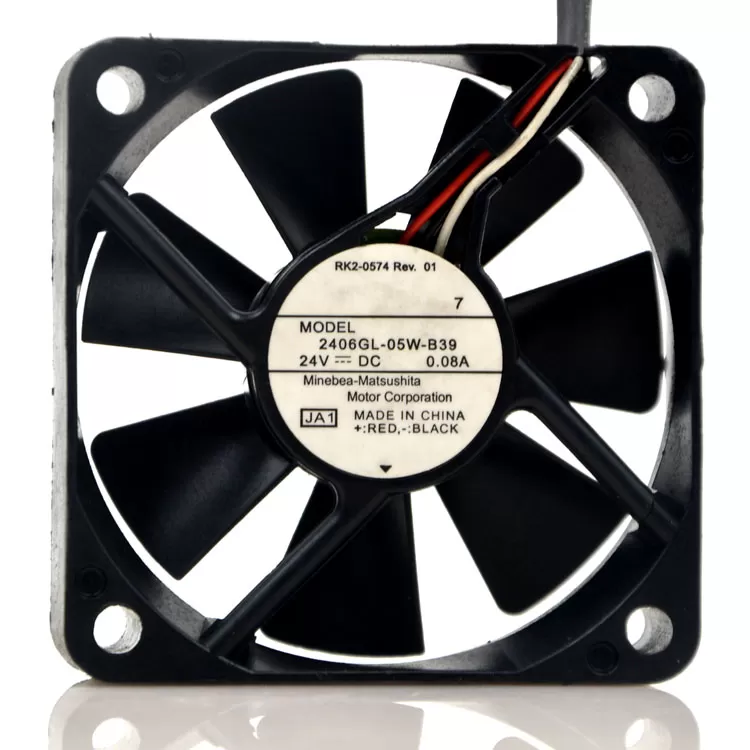

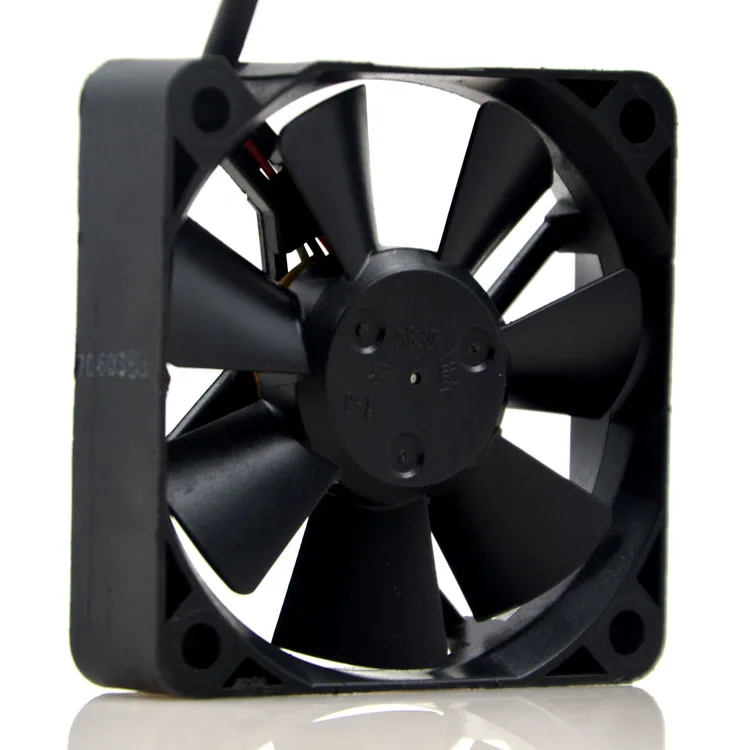

New original 6015 24V 0.08A 6cm 3-wire double ball frequency converter fan 2406GL-05W-B39
Model: 2406GL-05W-B29
Size: 60 * 60 * 15MM
Voltage: 24V
Current: 0.08A
Power: 3.12W
Speed: 4600RPM
Air volume: 18.3CFM 0.52 cubic meters / minute
Wind pressure: 51.2pa
Noise: 34DBA
Ambient temperature: -20 ~ 75 °
Life: 80000 hours (25 ℃, 45 ~ 85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80,000 hours
