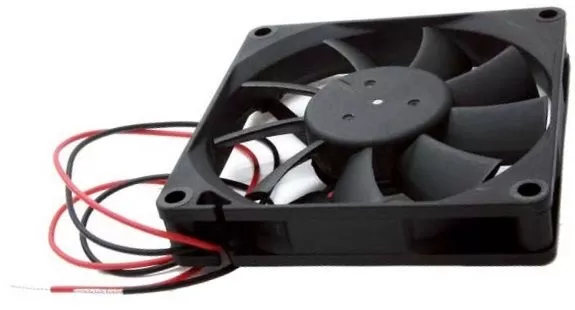

Delta AFB0812HB DC12V 2wire 0.20A Ball Bearing Fan

$13.60 $9.99

18 in stock

SKU: AFB0812HB Category: Tag: Brand:

Product Description

Manufacturer: Delta
Model: AFB0812HB

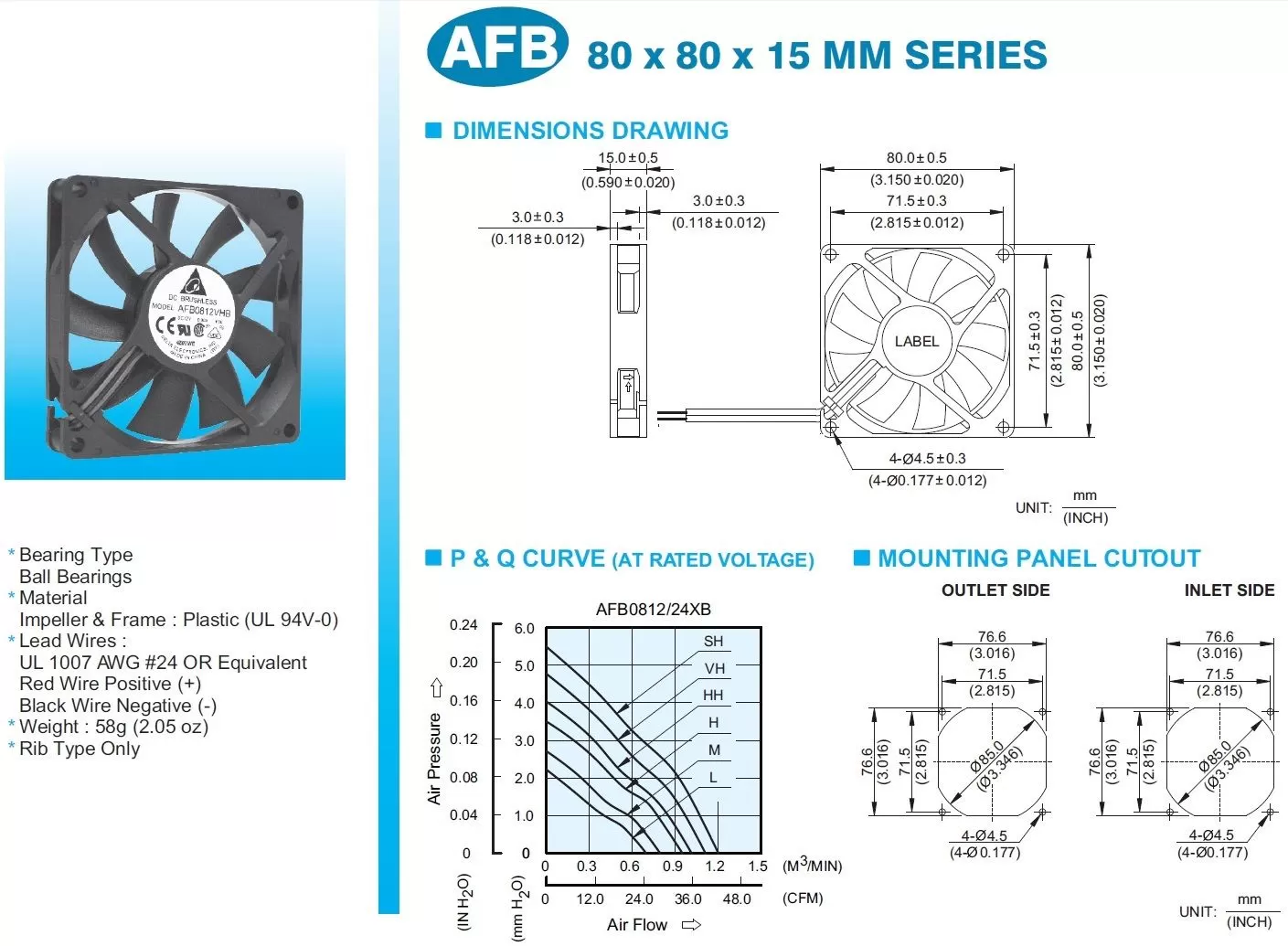

Size: 80mm X 80mm X 15mm (3.15 x 3.15 x 0.59 inches)
Bearing: Double Ball Bearing = twice the balls than regular ball bearing for less friction (lasts

longer and is quieter than regular Ball, Sleeve or Rifle Bearings with similar RPM/CFM)
Life Expectancy: will last longer than fan with regular Ball, Sleeve or Rifle Bearings because it has less friction
Speed:  3100 RPM
Airflow: 33.55 CFM (0.95 m3/min)
Air Pressure:  3.5 mmAq (34.32Pa, 0.138inAq)
Noise Level:  34 dBA
Voltage: 12VDC
Operating range:  from  7V~13.8V
Amperage: 0.2 Amps
Wattage: 2.4 Watts
Power Connector: tinned end (no connector)
Wire Conductors:  2wire
Wire Length: 12inch (30.48cm)

Delta AFB0812HB DC12V 2wire 0.20A  Ball Bearing Fan

Delta AFB0812HB DC12V 2wire 0.20A  Ball Bearing Fan

Delta AFB0812HB DC12V 2wire 0.20A  Ball Bearing Fan

Additional Information

Max. Air Flow Volume

34 CFM

Current

0.20 Amp

Startup Voltage

6V

UPC

Does not apply

Voltage Operating Range

7V to 13.8V

Connector Type

Tinned bare end

MPN

AFB0812HB 8015

Model

8015

Quantity

1

Noise

34dBA

Fan Diameter

80mm

Brand

Delta

Bearing Type

Ball

Air Pressure

3.5mmH2O

Type

Cooling Fan

Max. Fan Speed

3100RPM

Fan Thickness

15mm

Voltage

12V

Power Connection

No Connector
