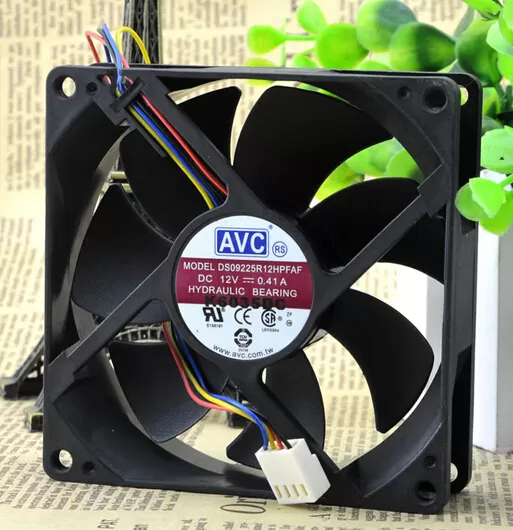

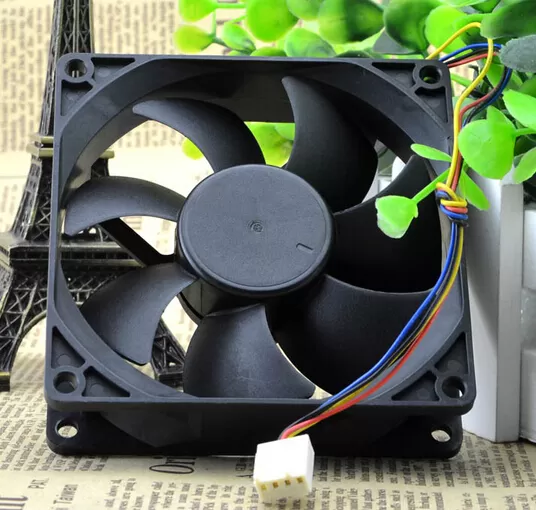

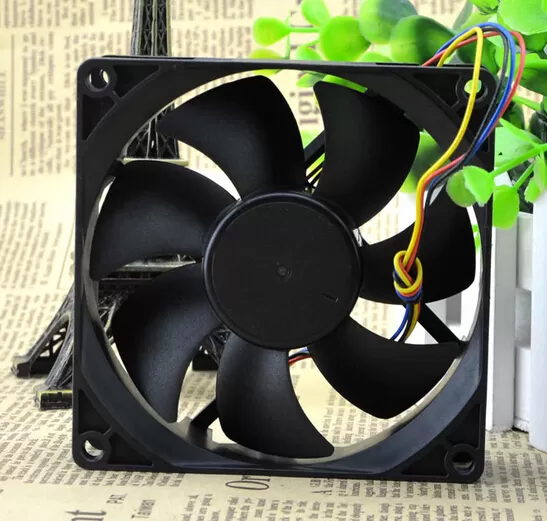

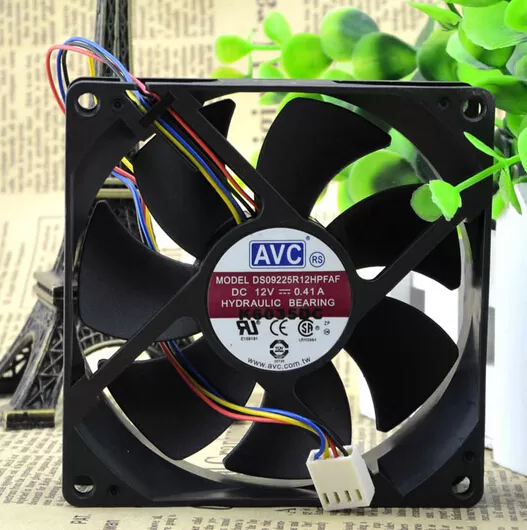

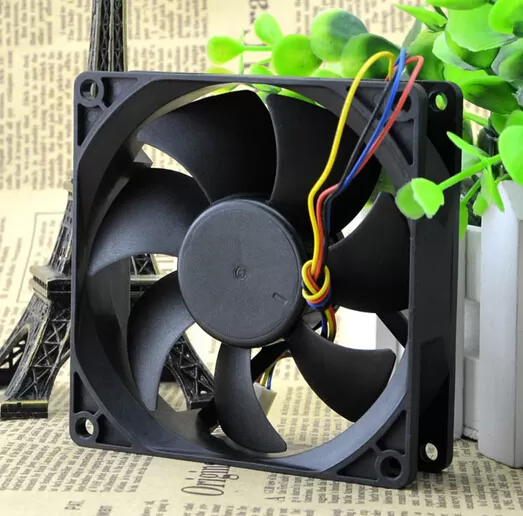

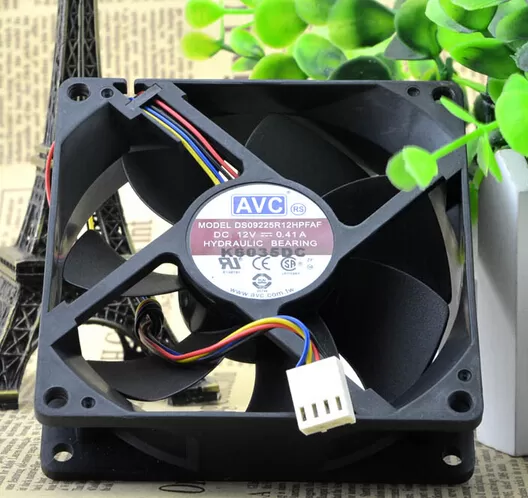

Wholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fan

$16.00

818 in stock

SKU: 2046530678 Category: Tag: Brand:

Description

100% AVC

Fan adopts the hydraulic bearing (different from the hydraulic oil hydraulic, very durable), the official parameters are as follows:

Size: 90*90*25mm

Pitch: 8.3cm

Rated voltage: 12V

Rated current: 0.41A

Input power: 4.9W

Speed: 0-3800RPM + 5% 4 line temperature controlled speed

The maximum air volume: 63CFM

The maximum static pressure: 58Pa

Noise: 0-28DB

Weight: 88g

Fan connector: Standard 4-Pin connector

Recommended use: chassis cooling heat sink, CPU modification, high reliable server applications. Commonly used to replace the radiator and brand machine or server chassis fan.

Please note, this is the PWM temperature control fan 4P, need to be in the 4P interface of the mainboard and the opening speed control function, according to the speed of the different temperature. If the motherboard interface 3 needle or not open the timing function condition, the fan will run at full speed, full sound is 28db. Speed very quiet.
Wholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fanWholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fanWholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fanWholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fanWholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fanWholesale: AVC 9025 9cm DS09225R12HPFAF 12V 0.41A 4 wire PWM CPU cooling chassis fan

Additional information

Fan Size

9025 inch

Lines

4 Lines

Package

Yes

Model Number

DS09225R12HPFAF

Application

Computer Case

Bearing

Two Ball Bearing

Heatsink Material

Copper

Type

Fan

Brand Name

AVC
