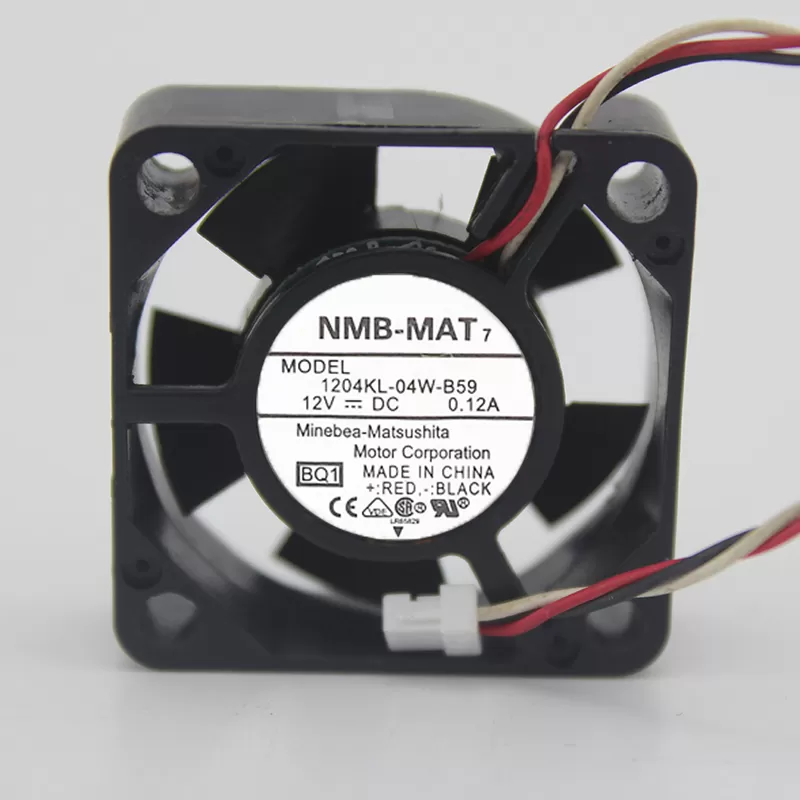

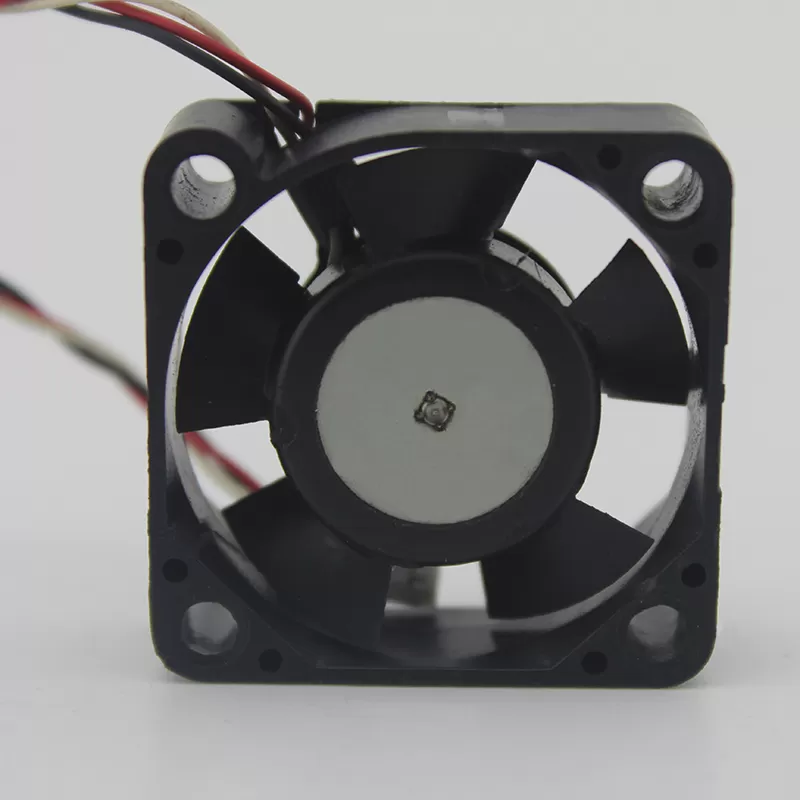

Original 1204KL-04W-B59 3010 12V 0.12A 3CM inverter fan

$10.00

10 in stock

SKU: 32798602644 Category:

Product Description

Manufacturer Part Number: 1204KL-04W-B59-B00
Description: FAN DC AXIAL 30X10 12V LOCK RTR
Minimum order quantity: 1
Series: 1204KL
Voltage – rated: 12VDC
Size / Size: Square – 30mm long x 30mm high x 10mm wide
Airflow: 3.8 CFM (0.108 m / min)
Static pressure: 0.216 inch water column (53.8 Pa)
Bearing Type: Ball
Fan type: tube axis type
Features: Lock the rotor sensor
Noise: 27 dB
Power (W): 0.96W
RPM: 10500 RPM
Termination: 3 leads
Weight: 0.019 lbs (8.62 g)
Operating temperature: 14 ~ 158 ° F (-10 ~ 70 ° C)Original 1204KL-04W-B59 3010 12V 0.12A 3CM inverter fanOriginal 1204KL-04W-B59 3010 12V 0.12A 3CM inverter fan

Additional Information

Power

1.2W

Air Volume

45CFM

Package

Yes

Bearing

Two Ball Bearing

Power Interface

3pin/4pin

Fan Speed Control

2500RPM

Fan Life

50000 hrs

Fan Size

80x80x25mm

Noise

17dBA

Lines

3 Lines

Application

Computer Case

Model Number

fans

Type

Fan

Compatible CPU

cpu

Heatsink Material

Plastic

Brand Name

HUAERXINDIAN
