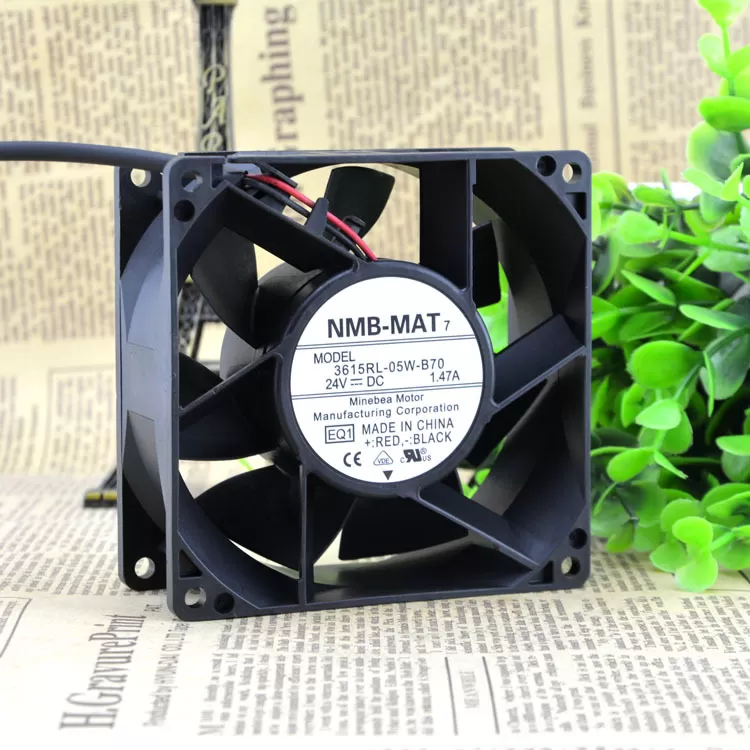

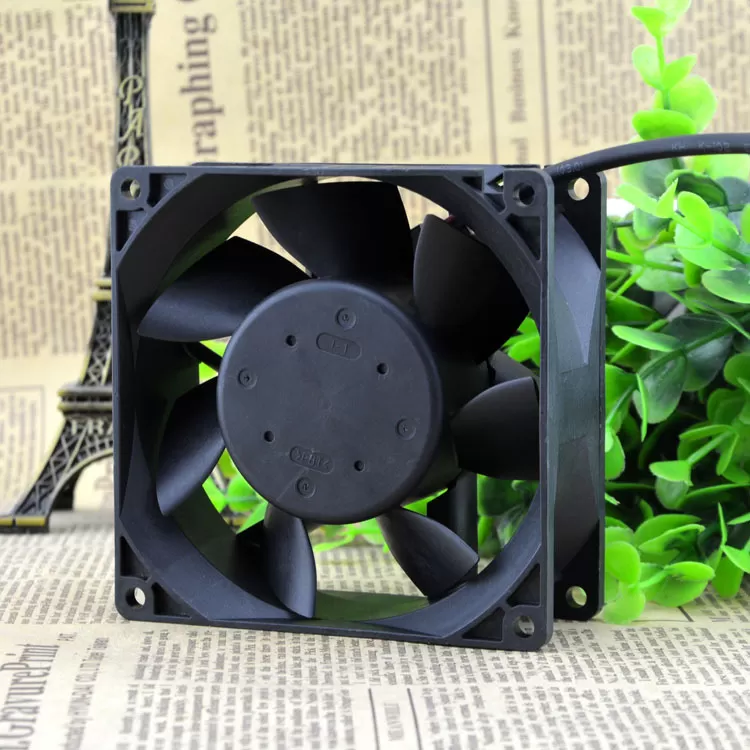

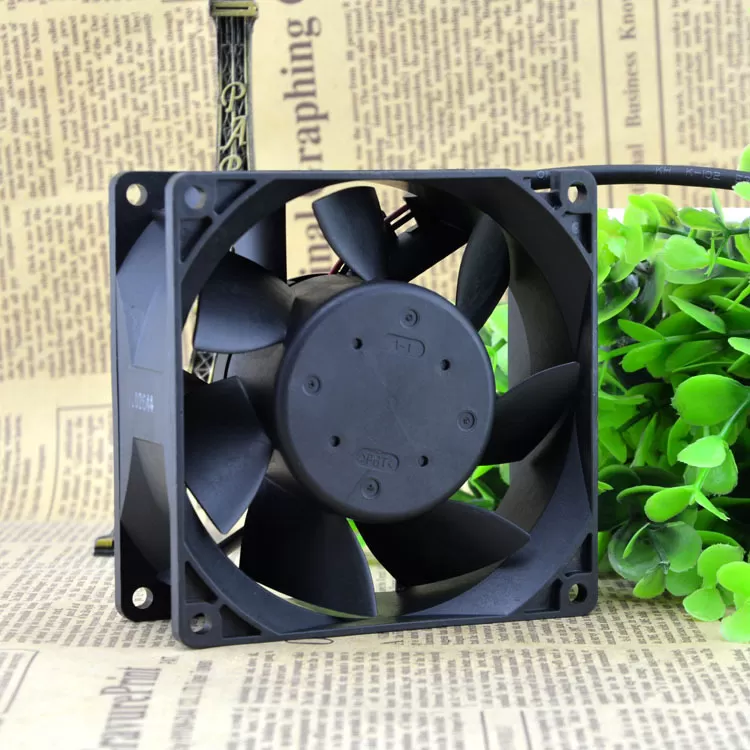

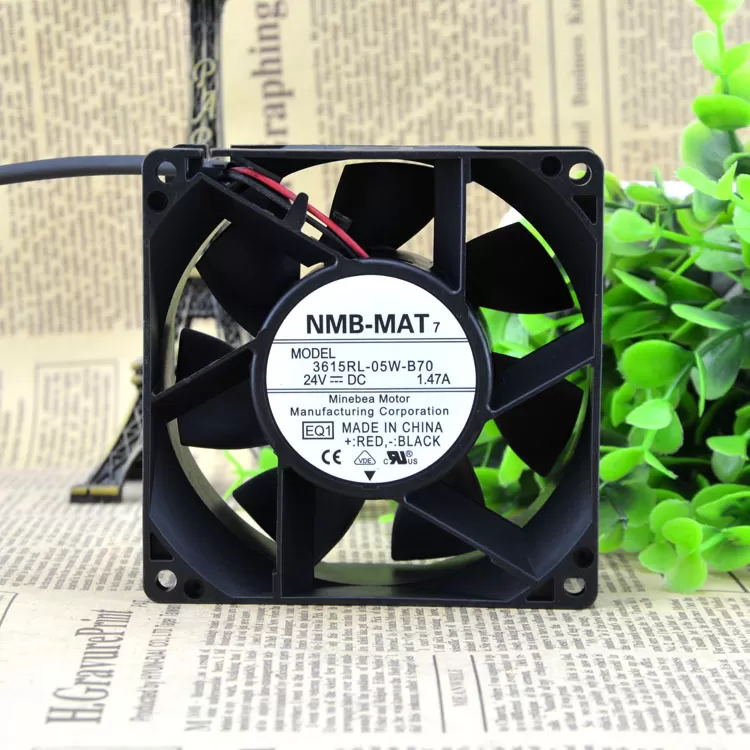

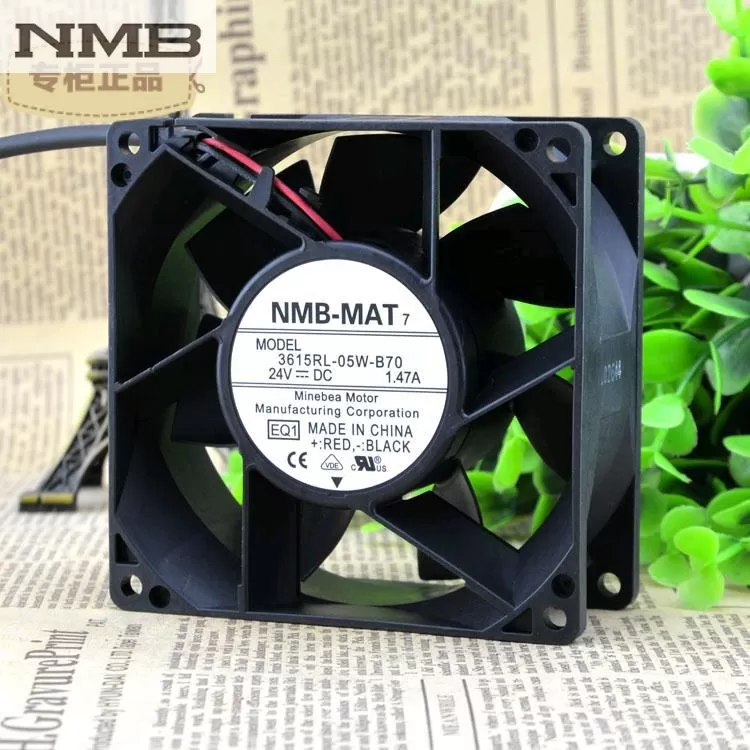

NMB 3615RL-05W-B70 -E00 DC Brushless fan 24VDC 1.47A 92X38.4MM 90mm 9cm 70RPM

$84.99 $63.74

707 in stock

SKU: 32251425930 Category: Tag: Brand:

Description

Voltage – Rated 24VDC
Size / Dimensions Square – 92mm long x 38.4mm wide x 92mm high
Airflow 152.5 CFM (4.32m3 / min)
Static pressure 1.0 inches of water column (298.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Property
Noise 62.5 dB (A)
Power (W) 27.1W
RPM 70 RPM
Termination 2 lead
Weight 0.507 pounds (229.97g)
Working temperature 14 ~ 158 ° F (-10 ~ 70 ° C)
Rated current 1.13A
Voltage Range 14 ~ 26.4VDC
Life expectancy 100,000 hours at 25 ° C

Additional information

Heatsink Material

Copper & Aluminum

Model Number

3615RL-05W-B70

Compatible CPU

Yes

Type

Fan

Package

Yes

Noise

Low

Fan Size

9 cm

Application

Computer Case

Brand Name

NMB

Lines

Other
