Description
“Nidec UltraFlo” series and the standard cooling fan cooling fan series; green, high air flow, high static pressure, high efficiency and low noise, low vibration.
Brand Nidec Nidec
Manufacturer Nidec Corporation (NIDEC CORPORATION)
Manufacturer headquarters Kyoto Prefecture Kyoto City Town Hall of Nam Kuze 338 gu
made in China
Dimensions: 60 * 60 * 25mm

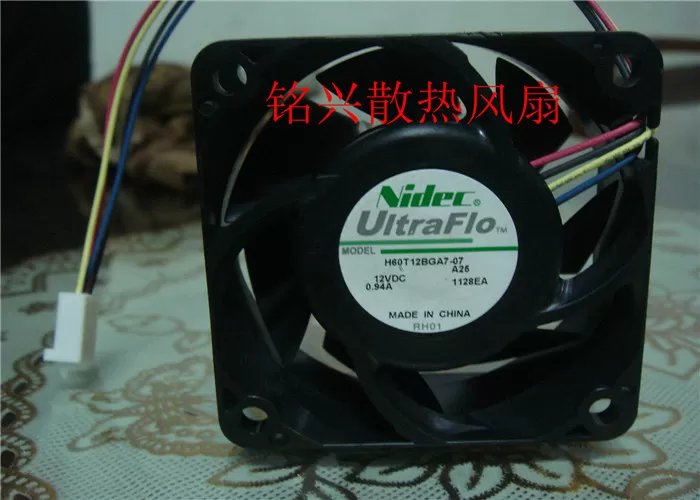

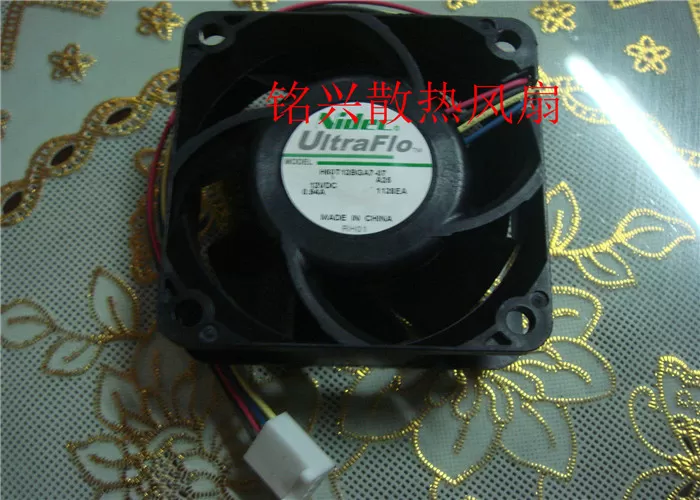

Model: H60T12BGA7-07
Rated voltage: 12V 0.94A 3Y12DA
Operating voltage: 10.2-13.8V
Current Rating: 0.94A
Plug: 4P standard computer interfaces, line 15 cm long
Fan Frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise as viewed from the direction of the blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: precision double ball bearing;
Power range: plus or minus 15% of the rated power;
Insulation resistance: greater than 500 megohms;
Withstanding voltage: Meeting the leakage current 0.5mA 500V / 1 min;
Working life: ambient temperature of 25 degrees 80,000 hours.
