Description
Product Feature :
1. HVL031 heater 100W -400w
2. Have the CE.ROSH
3. Compact
4. Flat design
5. High air through-flow
6. Temperature safety cut-out
7. Clip fixing
The compact high-performance fan heater prevents formation of
condensation in control or switch systems and provides an evenly
distributed interior air temperature in enclosures. This fan heater

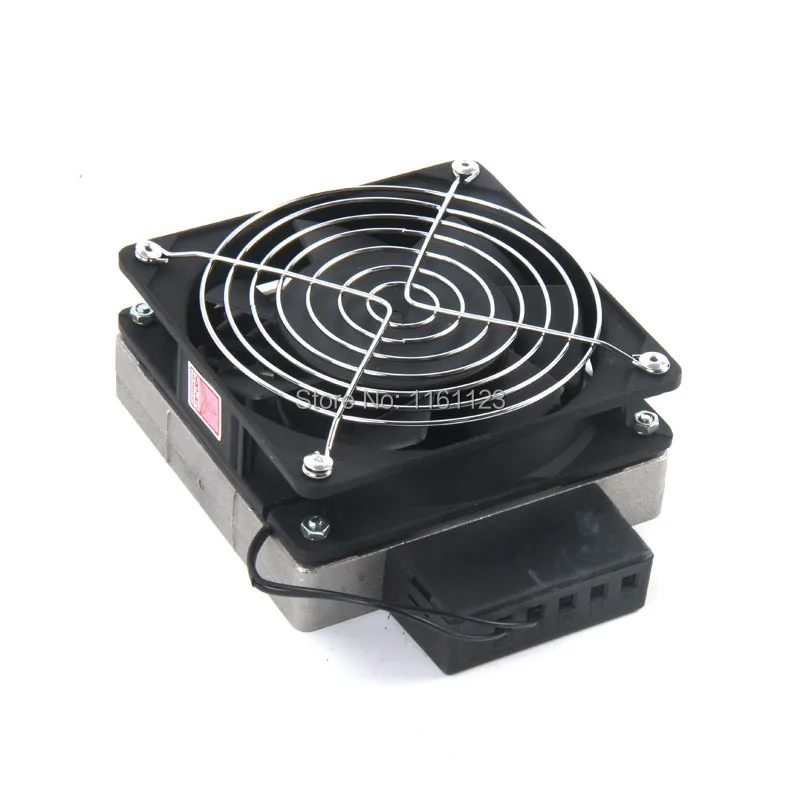

is available with fan (HVL 031) as well as without fan (HV031).
Important : Heater may only be operated together with fan.
Danger of overheating!
Technical Datas :
| HV 031 | Heater without fan (fan mounting kit included) |
| HVL 031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm2,clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 50022 |
| Fitting position | horizontal |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type / Protection calss | IP20 / I (earthed) |
| Connection (axial fan) | 2-pole screw connector 2.5mm2(L2/N2) |
| HVL 031 only: | |
| Axial fan, ball bearing | airflow see table service life 50,000h at 25°C (77°F) |
Note : all the heater voltage has 120VAC and 230VAC ,
when you place the order , pls note the voltage ,
and leave message about the voltage to us .
Or we just send you 230VAC . Thanks .
