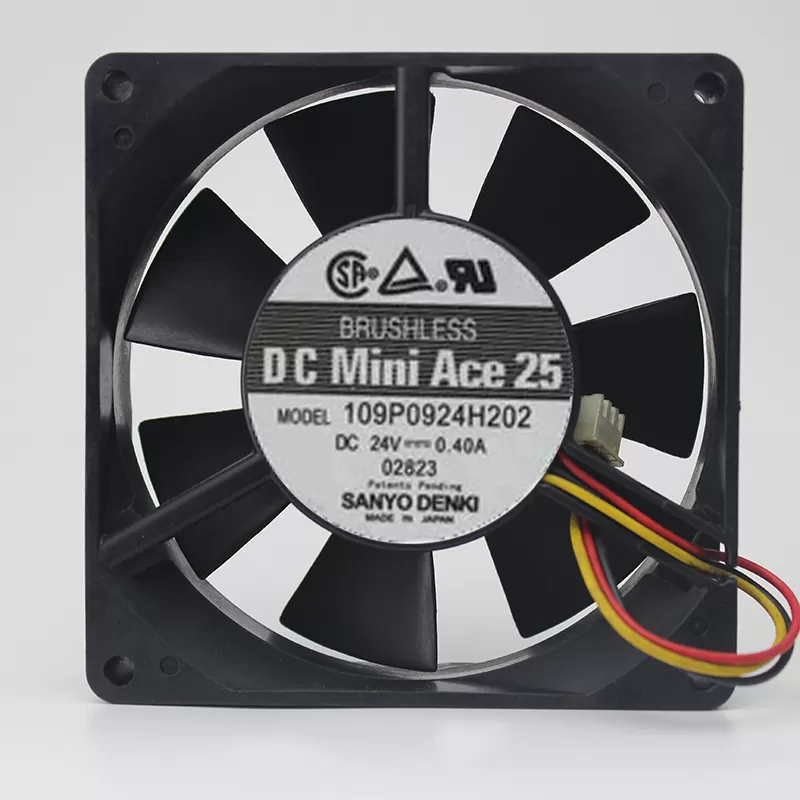

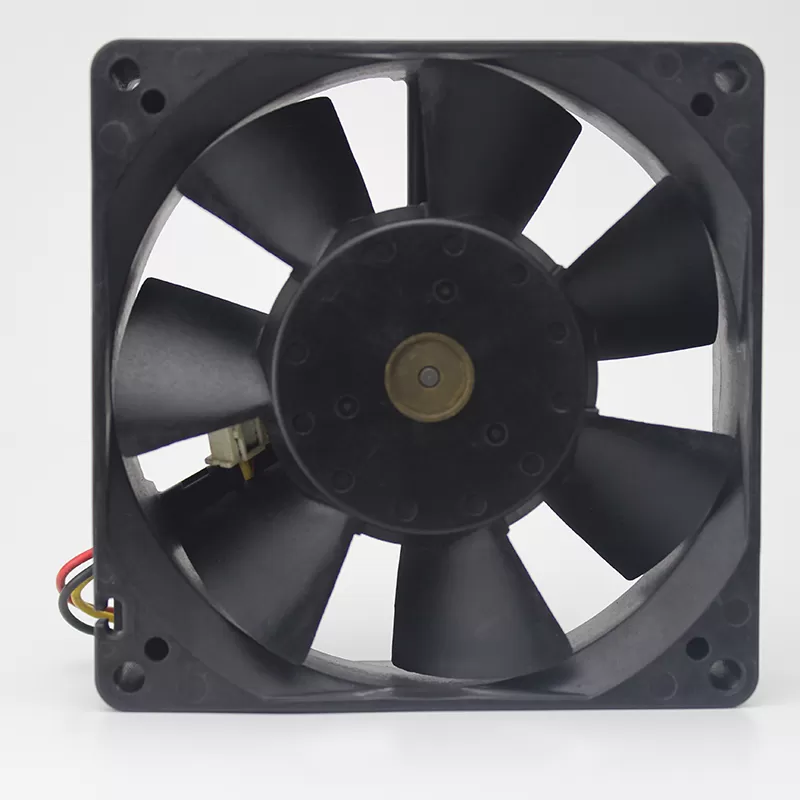

9025 9CM 24V 0.4A inverter cooling fan 109P0924H202

$10.80

64 in stock

SKU: 32800843194 Category:

Description

Model: 109P0924H202

Size: 92X92X25 (mm)

Voltage: DC24V

Current: 0.4A

Power: 9.6W

Bearings: high precision double ball bearings

Connector and wire: 2P interface, such as picture, line length 20.5 cm

Air volume: 56CFM

Number of revolutions: 4000 rev / min

Noise: 38db

Working life: ambient temperature 25 degrees 100000 hours

Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Fan rotation: run counterclockwise from fan blade
Temperature: -20 degrees Celsius to +70 degrees Celsius Storage temperature: -40 degrees Celsius to +80 degrees Celsius
Power range: plus or minus 15% of rated power supply
Insulation resistance: greater than 500 megohms
Withstanding voltage: sink current 0.5mA 500V / 1 minute

Additional information

Brand Name

HUAERXINDIAN

Application

Computer Case

Lines

3 Lines

Model Number

fans

Type

Fan

Heatsink Material

Plastic

Compatible CPU

cpu

Noise

17dBA

Fan Size

80x80x25mm

Package

Yes

Air Volume

45CFM

Power

1.2W

Bearing

Two Ball Bearing

Power Interface

3pin/4pin

Fan Life

50000 hrs

Fan Speed Control

2500RPM
