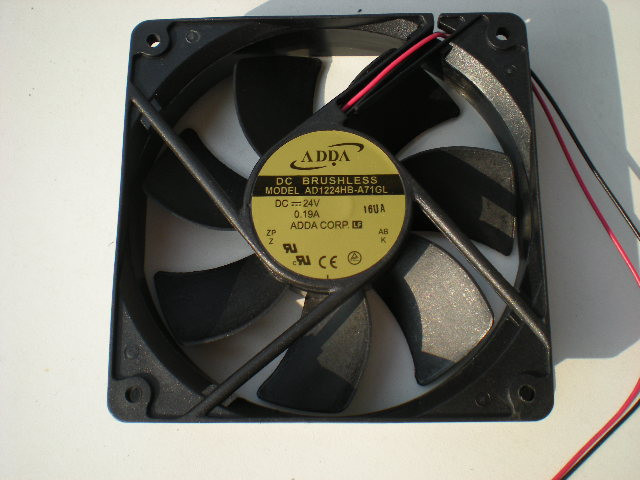

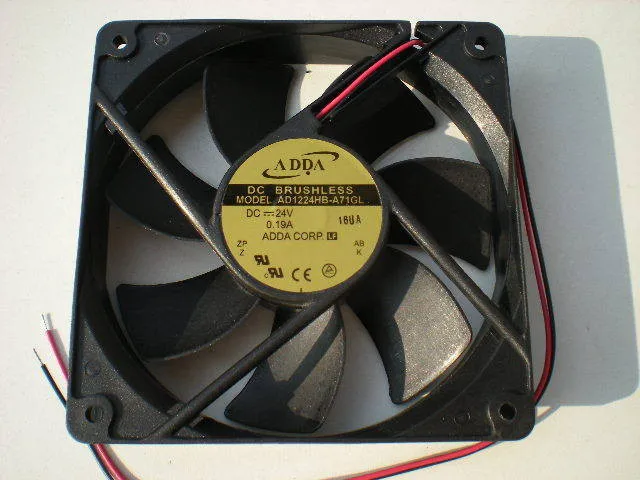

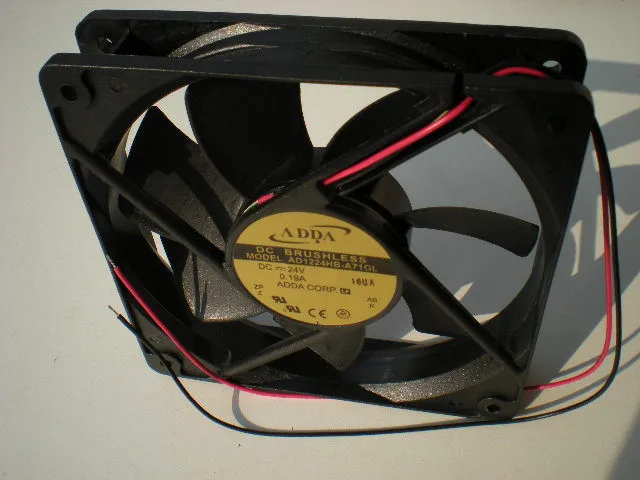

New original Taiwan ADDA AD1224HB-A71GL 12025 24V 120 * 120 * 25MM cooling fan axial fan

Leírás

AD1224HB-A71GL

[Product Specifications]: 120 × 120 × 25mm

[Motor speed]: 2500 r.p.m

[Rotation]: from the rotor, the counter-clockwise direction

[Bearings]: Maintenance-free double ball bearing

[Légáramlat]: 117 m / h?

[Minimum pressure]: 0 .. 30 Pa

[Input voltage]: 24VDC /

[Input Current]: 0.25 A

[Input Power]: 6.00 W

[Élet]: 25 degrees Celsius L10 life expectancy of 70,000 órák

[Insulation Class]: B grade (135)

[Outlet mode]: qualifying long edge of the housing 270mm, 0.5cm bare tinned ends

[Noise Index]: 38.0 dB (A)
