説明

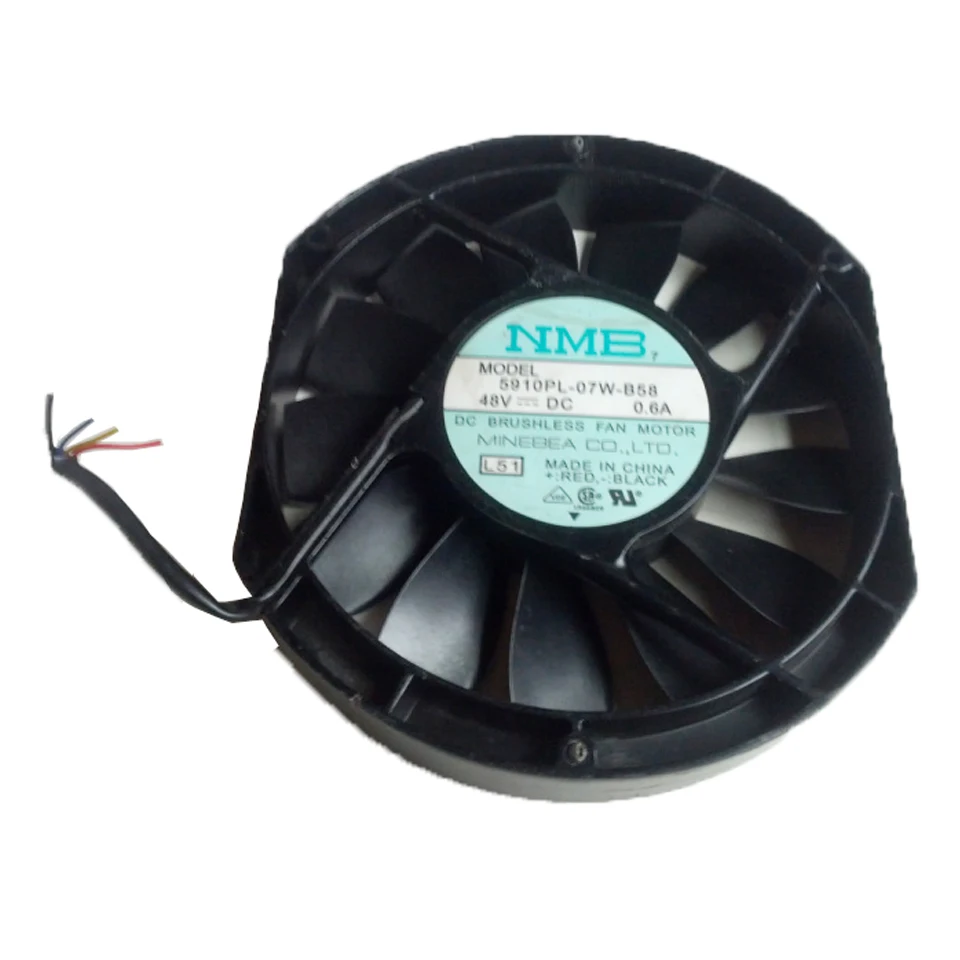

モデル : 5910PL-07W-B58
ベアリング :Dual Ball(2 Ball Bearing with Special Designed IC Inside)
サイズ:173 * 150 * 25んん
MTBF(MTTF):180,000 時間
定格電圧 : 48V
電流:0.6A
力 ; 28.8W
重さ: 500 grams
インターフェース ; four lines

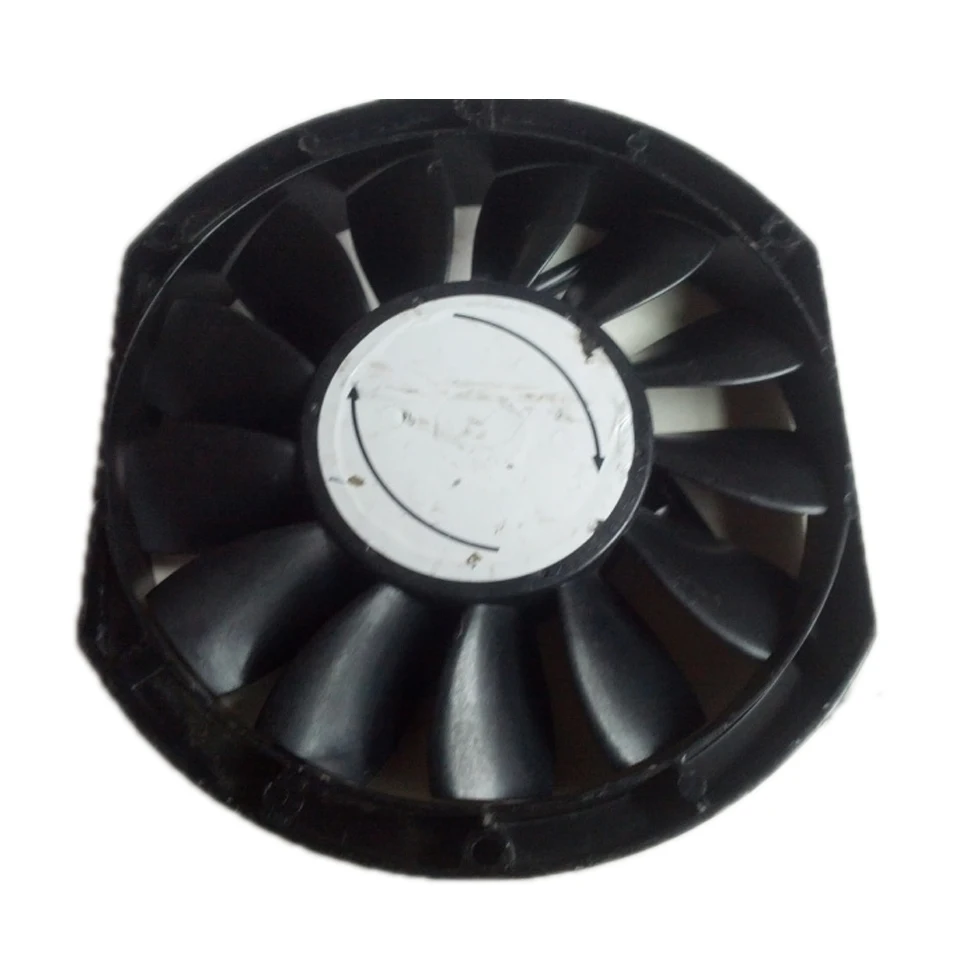

Cast aluminum frame, plastic mixing high strength fiberglass blades 13 ブレード .
Fans thickness of only 25MM, easy installation, 力, strong wind, is a very good fan .
Aluminum frame structure ,IntensiveMoreWind page structure , the nominalVoltage DC48V, nominal current 0.6A, air volume .
The fan voltage higher than 32V can run the test as follows :
Current voltage 32V = 0.35A, about current voltage 48V 0.5A, of course, low voltage small amount of wind , the wind is very light .
Wiring Method : Only connect the red ( positive ) black wire ( negative ) , the other line is not connected . Dimensions 172mm x 150mm x 26mm, weight about 500 grams
