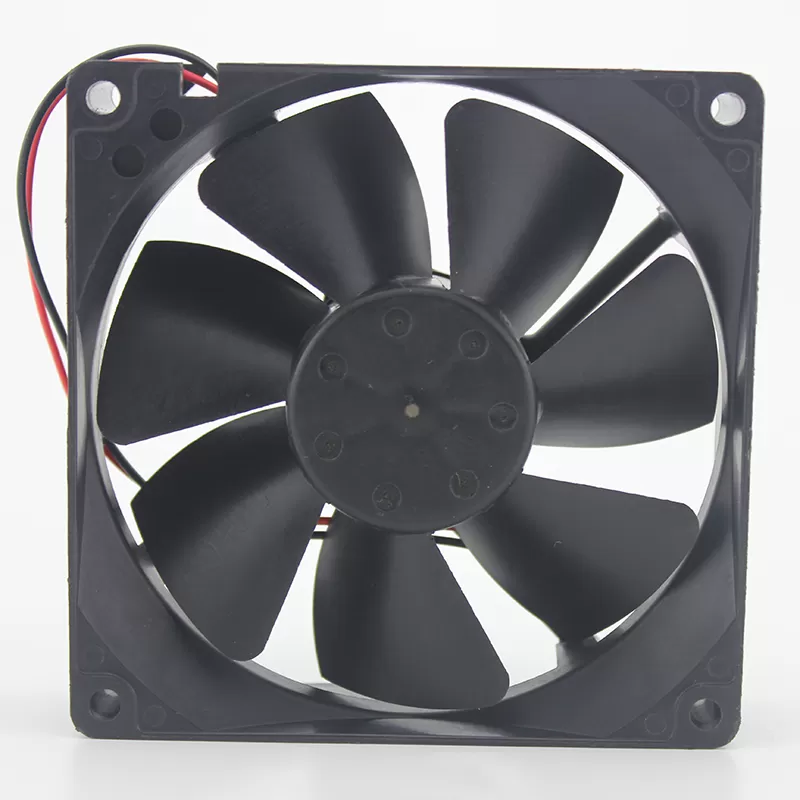

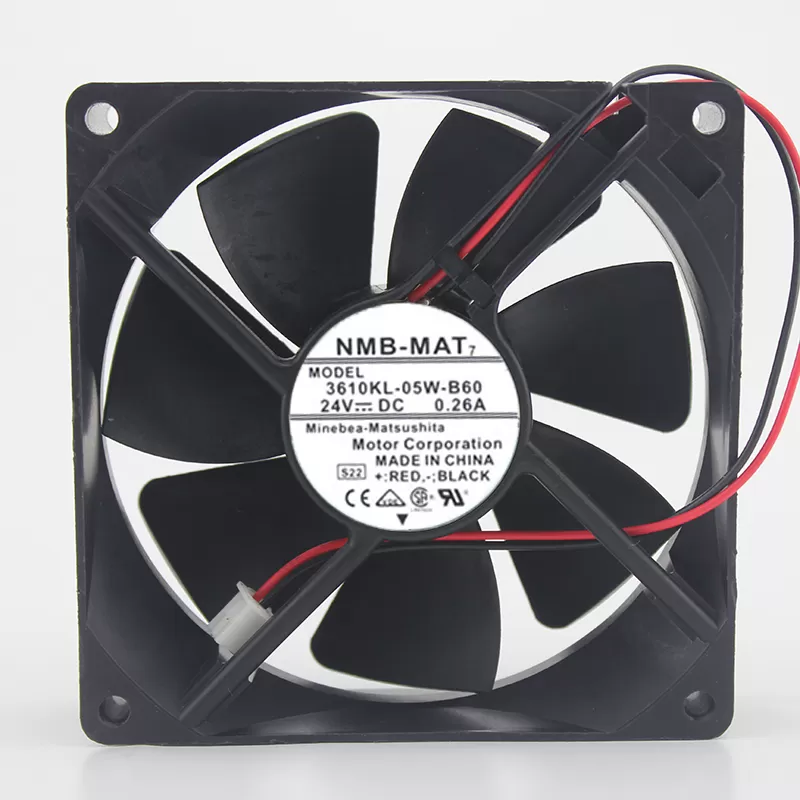

Spot original 3610KL-05W-B69 / B60 9025 24V 0.26A 9CM inverter fan

$10.40

10 in stock

SKU: 32798582841 Category:

Description

Commodity attributes
[Product Model]: 3610KL-05W-B60
[Appearance size]: 92 × 92 × 25mm
[Rated voltage]: DC24V
[Voltage range]: DC10.0V-25.0V
[Input power]: 0.26A (nominal current)
[Rated speed]: 3600 r.p.m.
[Maximum air volume]: 61.8 CFM
[Minimum wind pressure]: 0 .. 57.2 Pa
[Noise figure]: 44.5 dB (A)
[Temperature range]: -10 .. 70 ° C
[Expected life]: 25 ° C L10 estimated life of 50,000 hours
[Bearing structure]: maintenance-free double ball bearing
[Direction of rotation]: The wind is discharged from the bracket, facing the rotor counterclockwise rotationSpot original 3610KL-05W-B69 / B60 9025 24V 0.26A 9CM inverter fanSpot original 3610KL-05W-B69 / B60 9025 24V 0.26A 9CM inverter fan

Additional information

Power

1.2W

Air Volume

45CFM

Package

Yes

Bearing

Two Ball Bearing

Power Interface

3pin/4pin

Fan Speed Control

2500RPM

Fan Life

50000 hrs

Fan Size

80x80x25mm

Noise

17dBA

Lines

3 Lines

Application

Computer Case

Model Number

fans

Type

Fan

Compatible CPU

cpu

Heatsink Material

Plastic

Brand Name

HUAERXINDIAN
