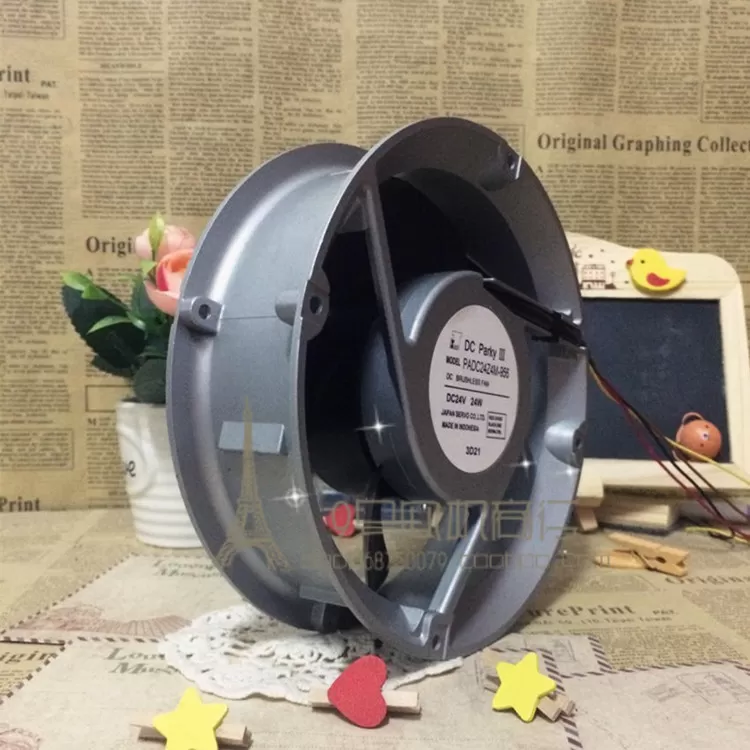

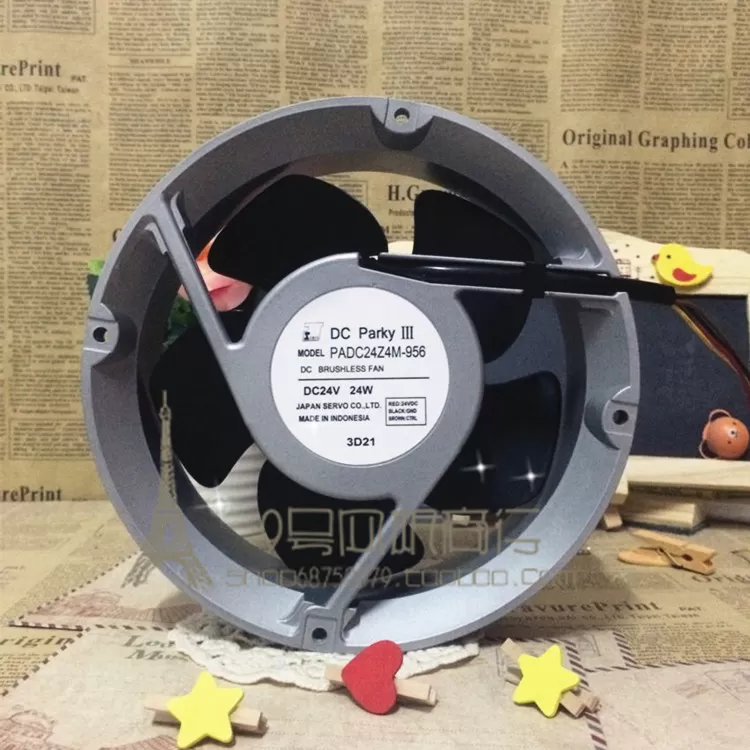

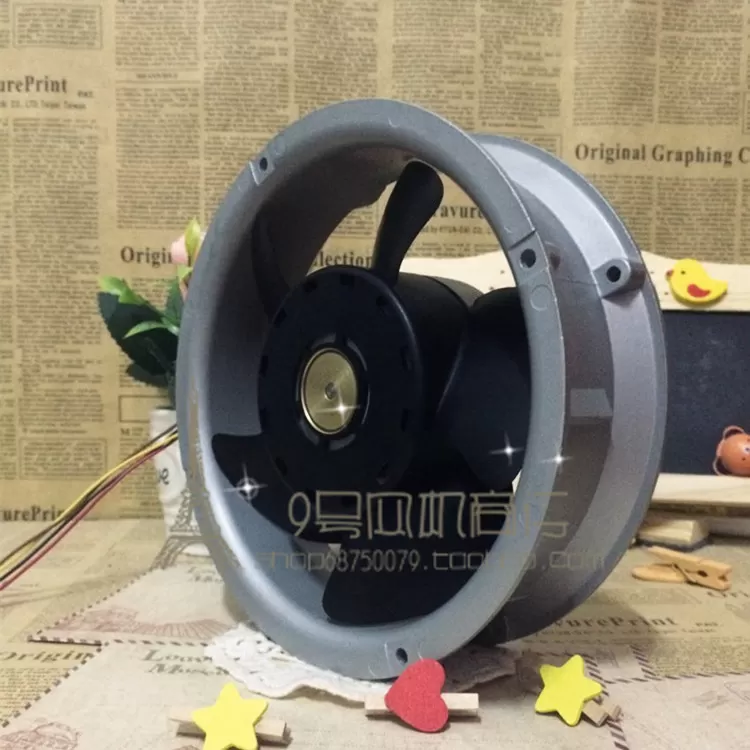

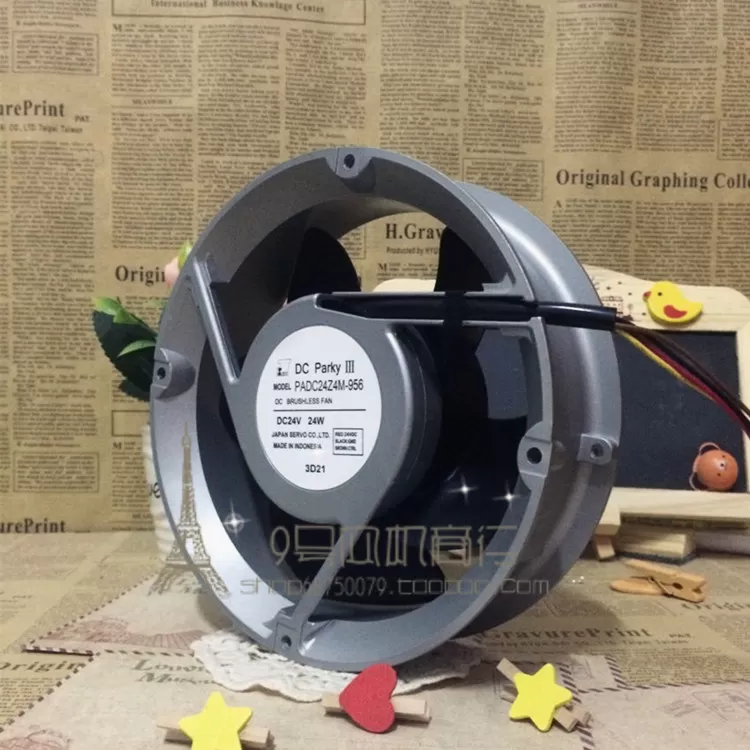

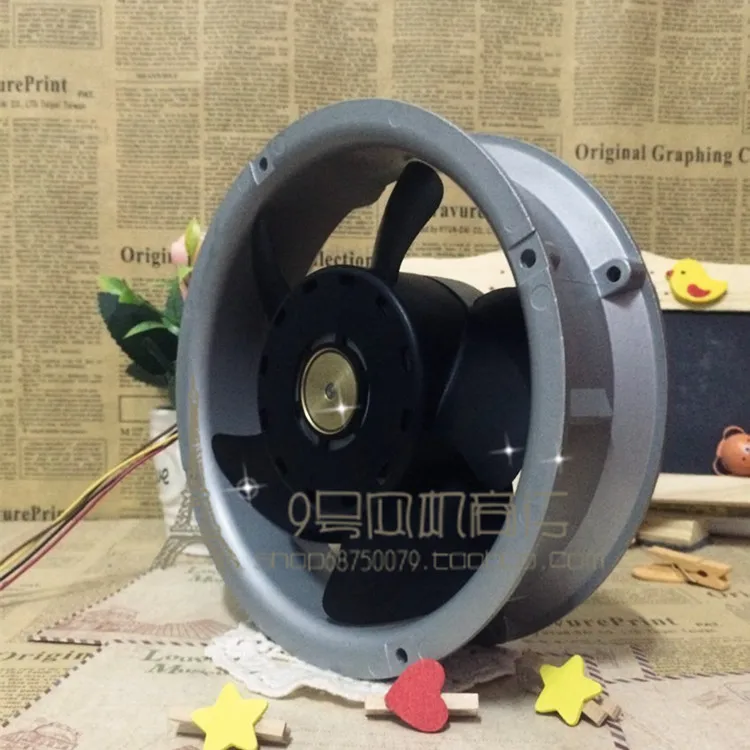

Original PADC24Z4M-956 17CM 17050 24V 24W 170 * 170 * 50MM double ball bearing fan

$129.99

100 in stock

SKU: 32810065465 Category:

Description

Size: 172 * 50mm

● Brand: DC Parky

● Model: PADC24Z4M-956

● bearing structure: S: (double ball bearing)

● Operating voltage: 24V

● Current: 1.0A

● Power: 24 (W)

● Speed: 2850 (R / min)

● Air volume: 240CFM

● Noise: 45 (dB-A)

● Weight: 1.0 (Kg)

● frame: black paint aluminum alloy die-casting anti-corrosion, moisture-proof structure;

● leaves: plastic leaves

● bearings: the use of high precision, long life and low noise imported ball bearings;

● Insulation: enameled wire with B-class insulation, temperature 155 degrees Celsius;

● Wiring method: wiring type

Insulation resistance: 500 megohm above;

● Withstanding voltage: leakage current 0.5mA. Withstanding voltage 1500V / min

● fan rotation: counterclockwise from the direction of the fan;

● Life: 50000 (hours)

Original PADC24Z4M-956 17CM 17050 24V 24W 170 * 170 * 50MM double ball bearing fanOriginal PADC24Z4M-956 17CM 17050 24V 24W 170 * 170 * 50MM double ball bearing fanOriginal PADC24Z4M-956 17CM 17050 24V 24W 170 * 170 * 50MM double ball bearing fanOriginal PADC24Z4M-956 17CM 17050 24V 24W 170 * 170 * 50MM double ball bearing fan

Additional information

Brand Name

SANYO

Lines

2 Lines

Model Number

PADC24Z4M-956

Heatsink Material

Copper & Aluminum

Application

Processor

Type

Fan
