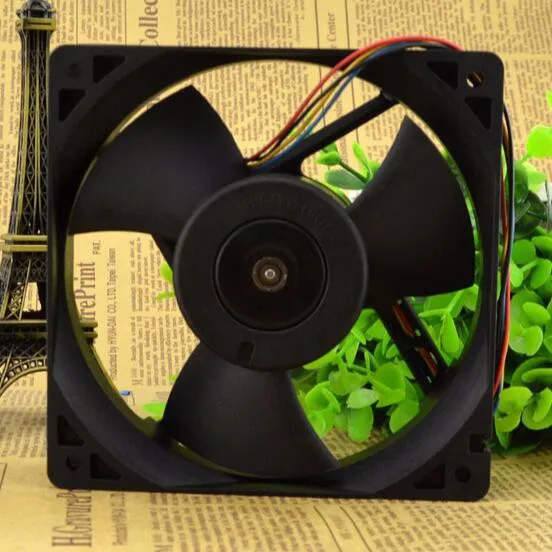

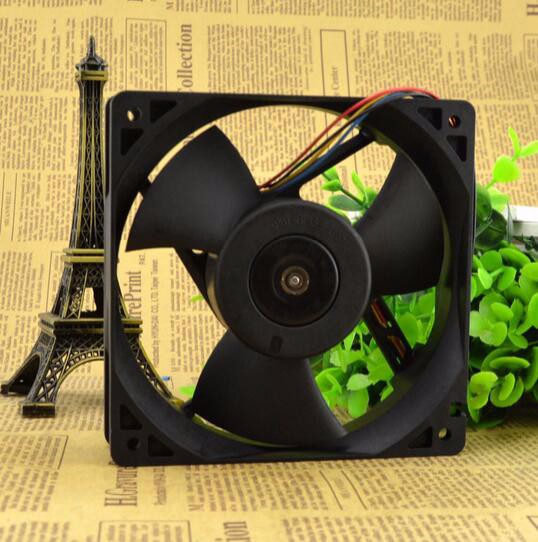

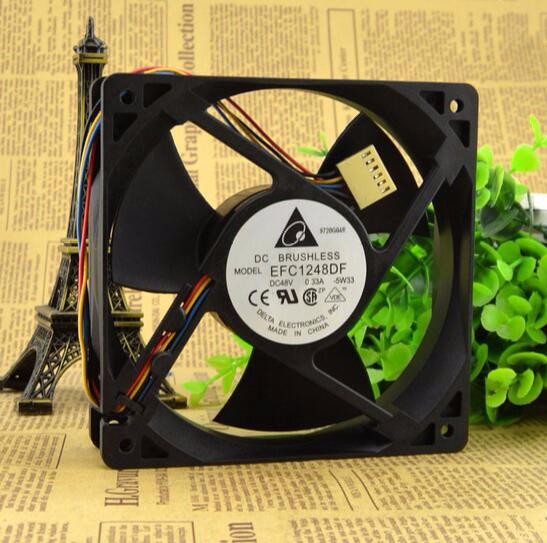

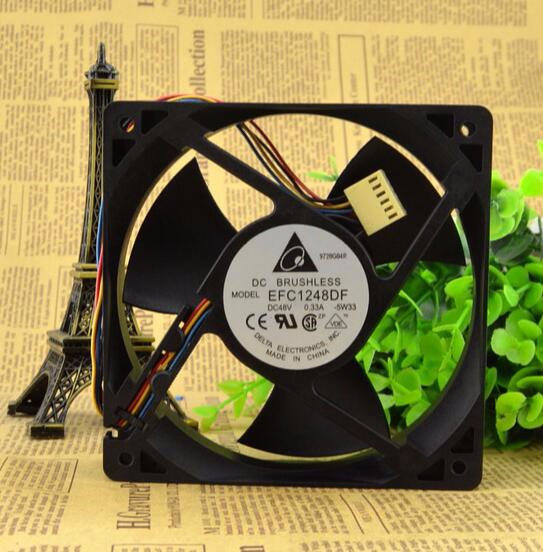

Original DELTA 120*120*32 48V 0.33A EFC1248DF 12 cm four wire fan

$18.00 $16.20

7 in stock

SKU: 32489064603 Category: Tags: , Brand:

Description

Model EFC1248DF-5W33

Size: 120*120*38MM. each 42PCS single branch no independent packaging.

Voltage: DC48V, working voltage: 28 53.4V to

Current: 0.33A

Air volume: /5.7 200CFM cubic meter

Power: 16W

Speed: 4000RPM range of-40 degrees Celsius to 70 degrees Celsius

Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant

Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant

Fan rotation direction: from the direction of the fan leaf to counter clockwise

Operating temperature: – 40 degrees Celsius to 70 degrees Celsius

Storage temperature: – 40 degrees Celsius to 90 degrees Celsius

Bearing: high precision ball bearing

Power range: rated power plus or minus 15%

Insulation resistance: greater than 500000000000000 ohm

Voltage resistance: sink current 0.5mA500V/1 minutes

Working life: 80000 hours at 25 degrees in the ambient temperature. In particular, there is no plug in the fan 4
.

Additional information

Lines

4 Lines

Package

Yes

Brand Name

Delta

Type

Fan

Application

Computer Case

Heatsink Material

Copper

Model Number

EFC1248DF

Bearing

Two Ball Bearing

Fan Size

12032 inch
