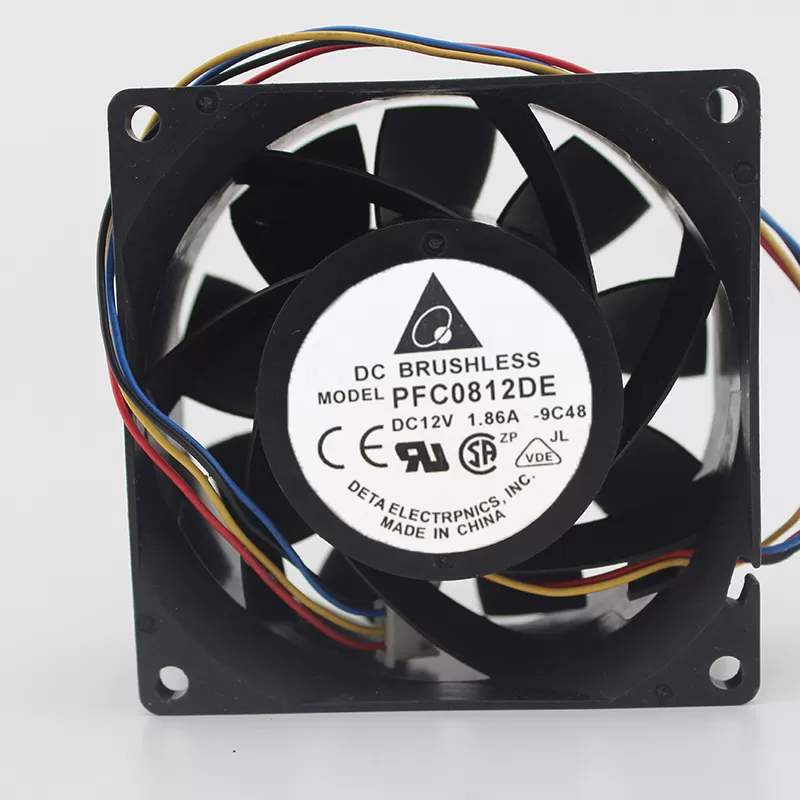

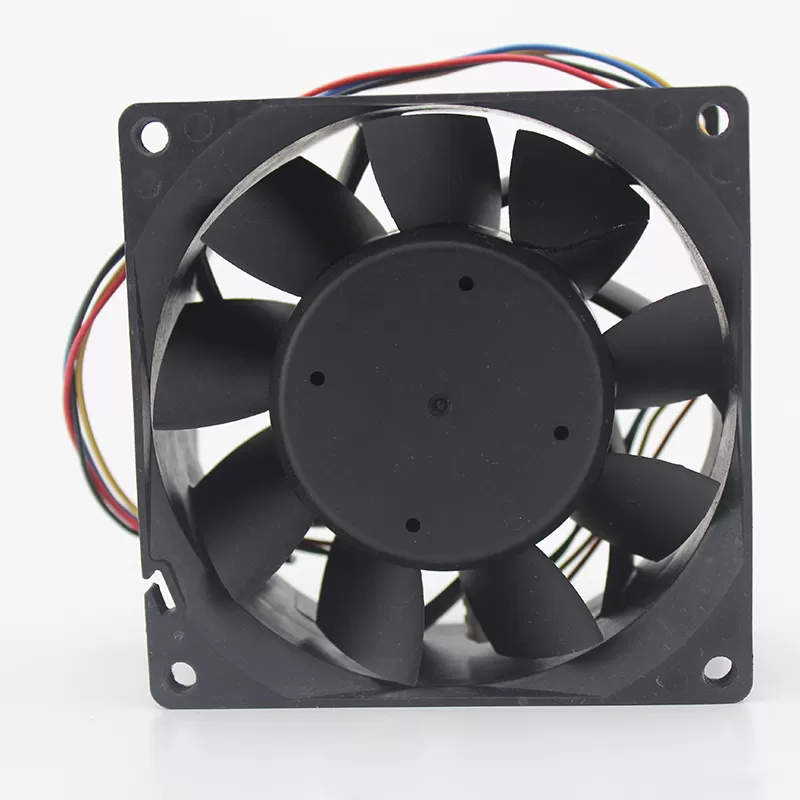

Original 8038 8CM server fan four-wire PWM control speed 1.86A large air volume PFC0812DE

$10.60

66 in stock

SKU: 32798606970 Category:

Description

Model: PFC0812DE

Size: 80 × 80 × 38MM

Voltage: DC 12V

Current: 3.30A (tag current)

Plug: Motherboard standard 4P plug

Air volume: 152.06CFM;

Power: 39.6W;

Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;

Fan rotation: counterclockwise from fan blade;

Operating temperature: -10 degrees Celsius to +70 degrees Celsius;

Storage temperature: -40 degrees Celsius to +70 degrees Celsius;

Bearing: high-precision ball bearings;

Source range: plus or minus 15% of rated power supply;

Insulation resistance: greater than 500 megohms;

Withstand voltage: drain current 0.5mA 500V / 1 minute;

Working life: ambient temperature 25 degrees 10.0000 hours

Original 8038 8CM server fan four-wire PWM control speed 1.86A large air volume PFC0812DEOriginal 8038 8CM server fan four-wire PWM control speed 1.86A large air volume PFC0812DE

Additional information

Brand Name

HUAERXINDIAN

Application

Computer Case

Lines

3 Lines

Model Number

fans

Type

Fan

Heatsink Material

Plastic

Compatible CPU

cpu

Noise

17dBA

Fan Size

80x80x25mm

Package

Yes

Air Volume

45CFM

Power

1.2W

Bearing

Two Ball Bearing

Power Interface

3pin/4pin

Fan Life

50000 hrs

Fan Speed Control

2500RPM
