Description

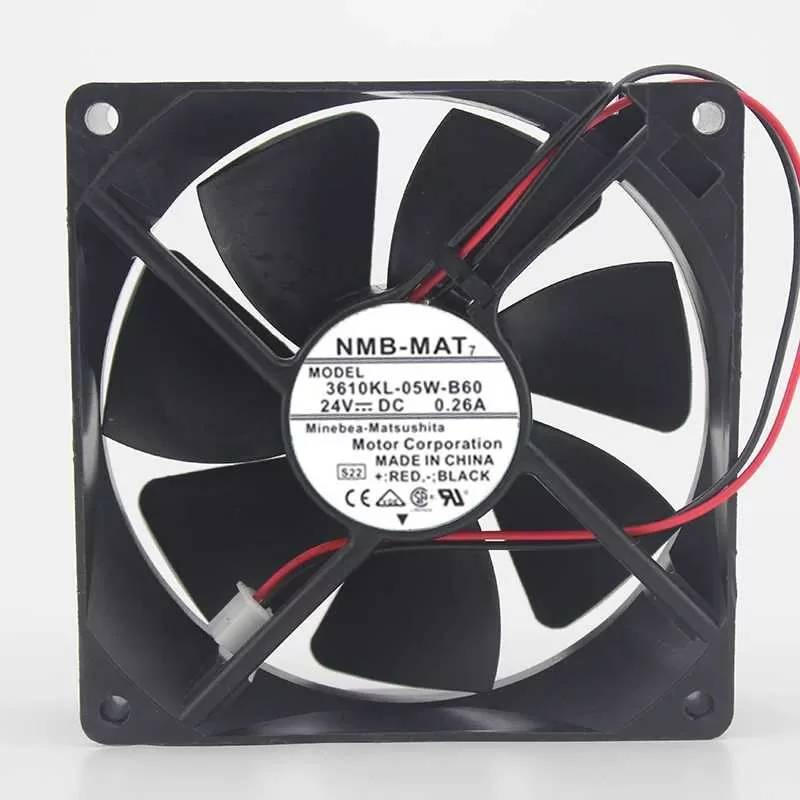

[Product]: 3610KL-05W-B60
[Dimension]: 92x92x25mm
[Rated]: DC24V
[Range]: DC10.0V-25.0V
[Power]: 0.26A (nominal current)
[Speed]: 3600 r.p.m
[Maximum air volume]: 61.8 CFM
[Minimum air pressure]: 0. 57.2 Pa
[Noise indicators]: 44.5 dB (a)
[Temperature range]:-10 … 70 °C
[Life expectancy]: 25 ° c L10 life expectancy of 50,000 hours
[Bearing]: maintenance-free double ball bearing
[Direction of rotation]: air discharged from the bracket, facing the rotor counterclockwise
