Description

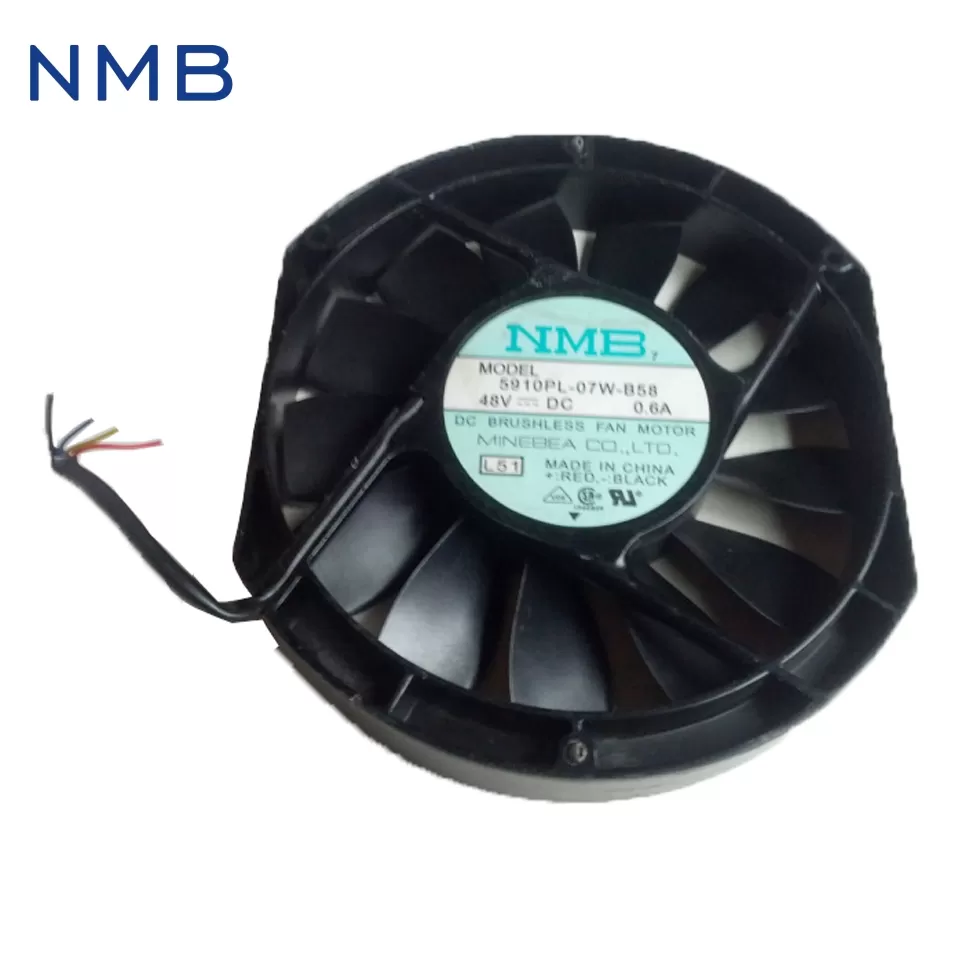

Model : 5910PL-07W-B58
Bearings :Dual Ball(2 Ball Bearing with Special Designed IC Inside)
Size:173 * 150 * 25MM
MTBF(MTTF):180,000 hours
Rated voltage : 48V
Current:0.6A
Power ; 28.8W
Weight: 500 grams
Interface ; four lines

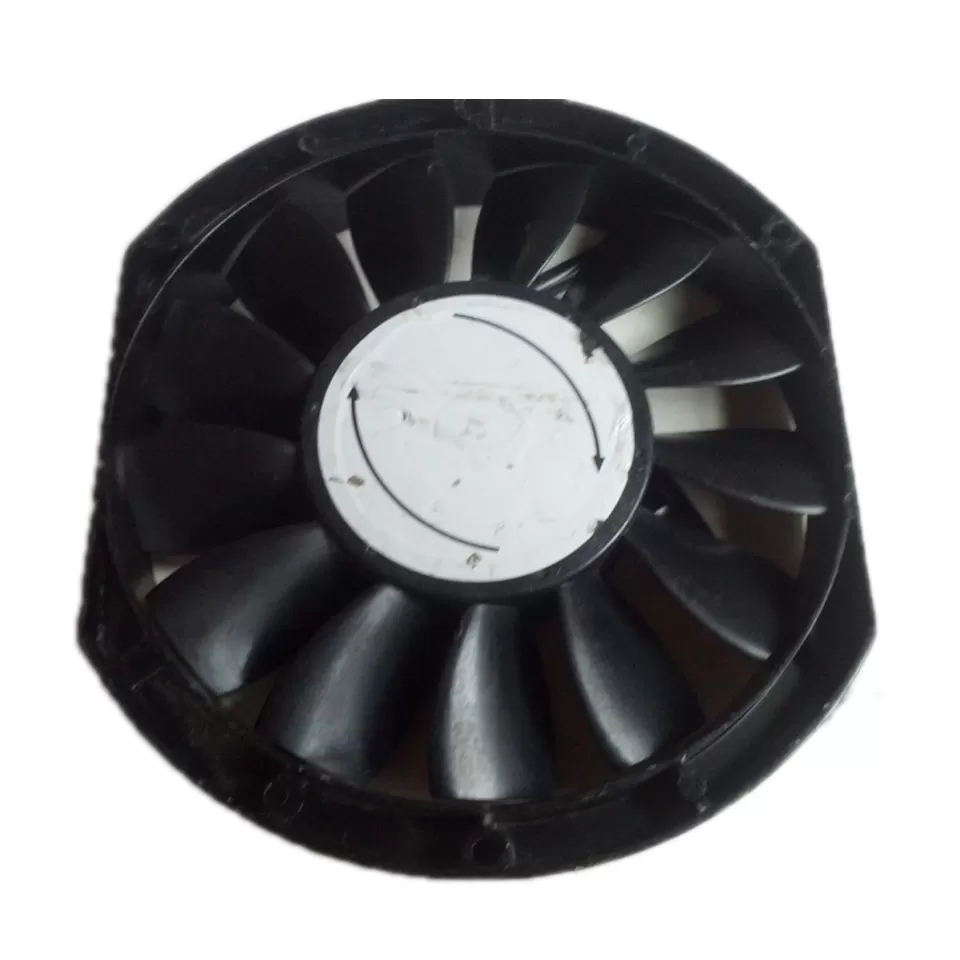

Cast aluminum frame, plastic mixing high strength fiberglass blades 13 blades .
Fans thickness of only 25MM, easy installation, power, strong wind, is a very good fan .
Aluminum frame structure ,IntensiveMoreWind page structure , the nominalVoltage DC48V, nominal current 0.6A, air volume .
The fan voltage higher than 32V can run the test as follows :
Current voltage 32V = 0.35A, about current voltage 48V 0.5A, of course, low voltage small amount of wind , the wind is very light .
Wiring Method : Only connect the red ( positive ) black wire ( negative ) , the other line is not connected . Dimensions 172mm x 150mm x 26mm, weight about 500 grams
