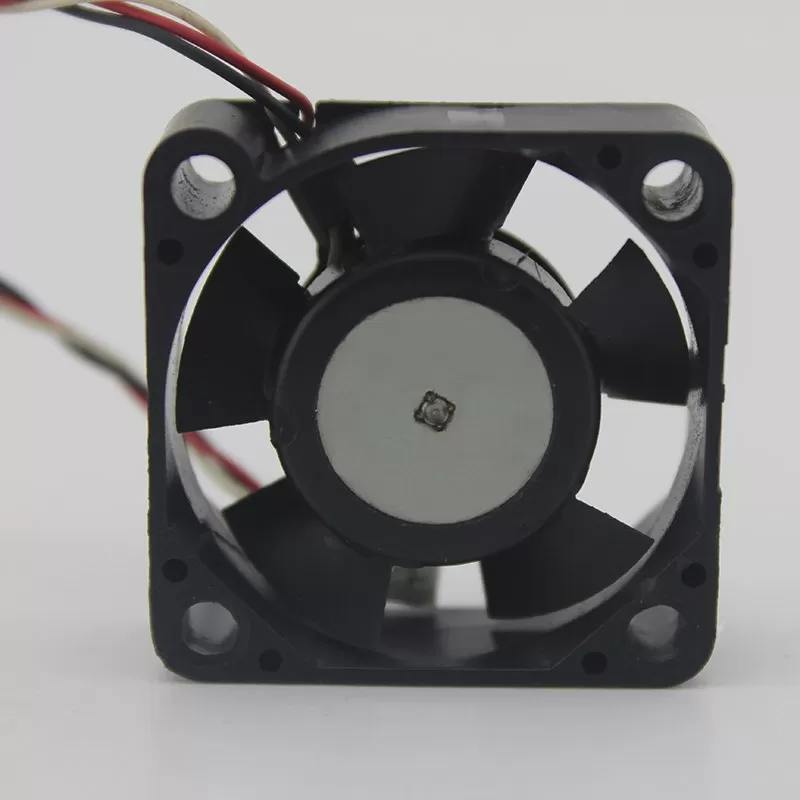

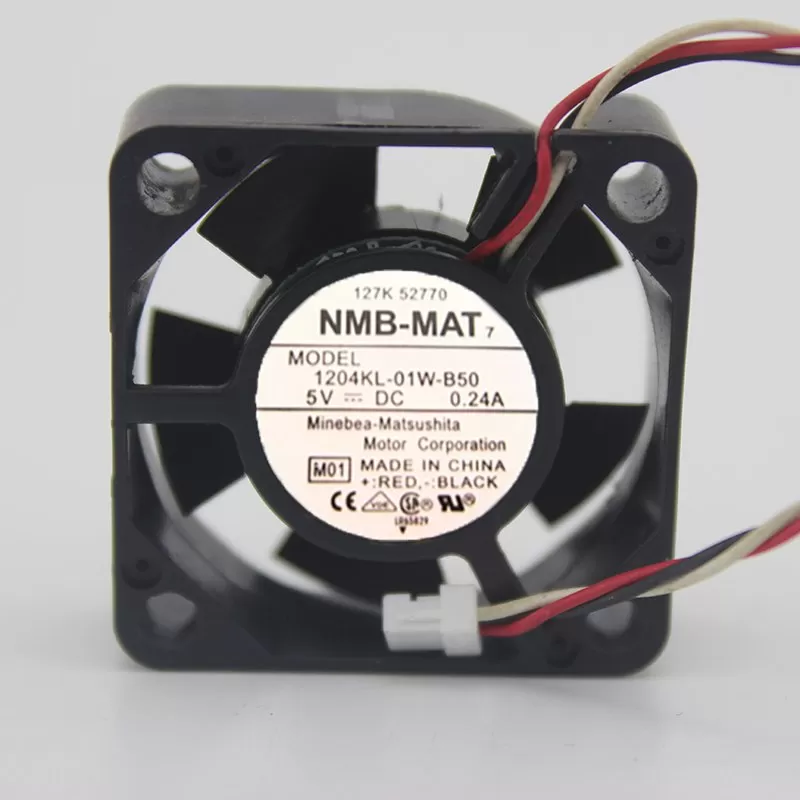

NMB 1204KL-01W-B50 3CM 5V 0.24A large air volume cooling fan

$12.60

656 in stock

SKU: 1204KL-01W-B50 Category: Tag:

Description

Manufacturer Part Number: 1204KL-01W-B50
Manufacturer: NMB Technologies Corporation
Description: FAN DC AXIAL 30X10 5V LOCK RTR
Voltage – Rated: 5VDC
Size / Size: Square – 30mm long x 30mm high x 10mm wide
Airflow: 3.8 CFM (0.108 m / min)
Static pressure: 0.216 inch water column (53.8 Pa)
Bearing Type: Ball
Fan type: tube axis type
Features: Lock the rotor sensor
Noise: 27 dB
Power (W): 1.2W
RPM: 12500 RPM
Termination: 3 leads
Weight: 0.025 lbs (11.02 g)

NMB 1204KL-01W-B50 3CM 5V 0.24A large air volume cooling fan
NMB 1204KL-01W-B50 3CM 5V 0.24A large air volume cooling fan

NMB 1204KL-01W-B50 3CM 5V 0.24A large air volume cooling fan



Additional information

Power Interface

3pin/4pin

Air Volume

45CFM

Package

Yes

Fan Life

50000 hrs

Fan Speed Control

2500RPM

Bearing

Two Ball Bearing

Power

1.2W

Fan Size

80x80x25mm

Noise

17dBA

Lines

3 Lines

Application

Computer Case

Compatible CPU

cpu

Heatsink Material

Plastic

Brand Name

HUAERXINDIAN

Model Number

fans

Type

Fan
