Description

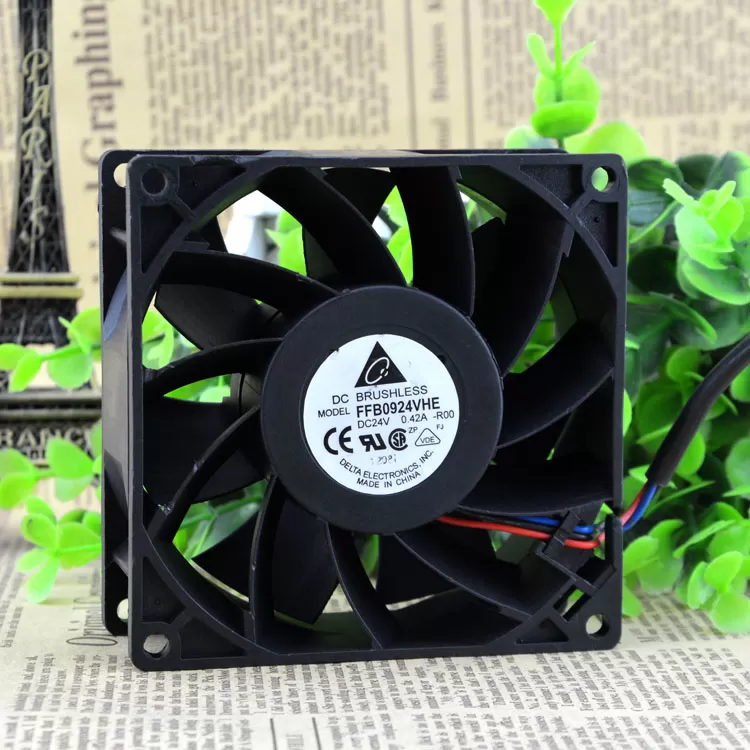

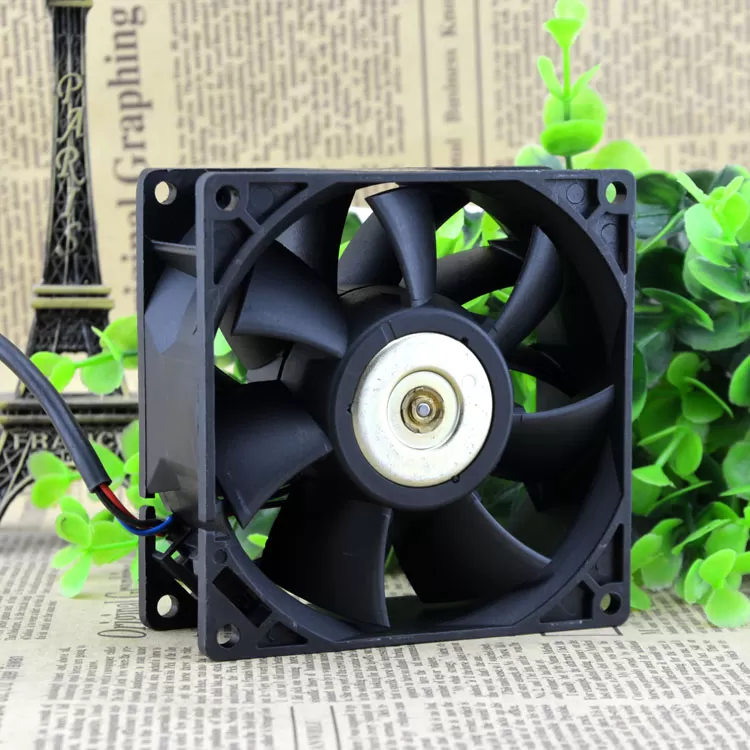

New original 9038 24 V0.42A Double Ball Cooling Fan FFB0924VHE inverter cooling fan
[Appearance Size]: 92 × 92 × 38mm [Rated voltage]: DC24V [Voltage Range]: DC16.0-28.0V [Input Power]: 0.42 A (nominal current) [Rated speed]: 3800 r.p.m [Temperature Range]: -10 .. 70 ° C [Estimated life expectancy]: L10 life expectancy 50,000 hours at 25 ° C [Bearing Structure]: Maintenance-free double ball bearing [Direction of rotation]: The wind is discharged from the bracket and rotates counterclockwise facing the rotor [Wiring]: + red – black signal: blue [Maximum air volume]: 145.3 m3 / h [Motor Protection]: wrong protection and blocking lock lock flow protection [Minimum air pressure]: 0 .. 99 Pa [Noise Index]: 47.5 dB (A)
