Description

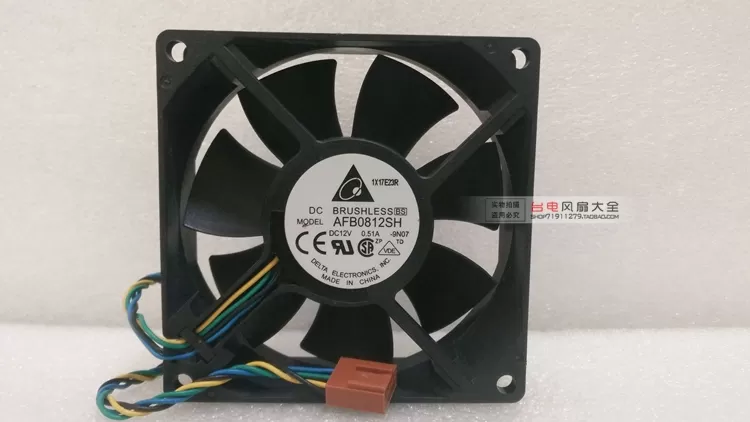

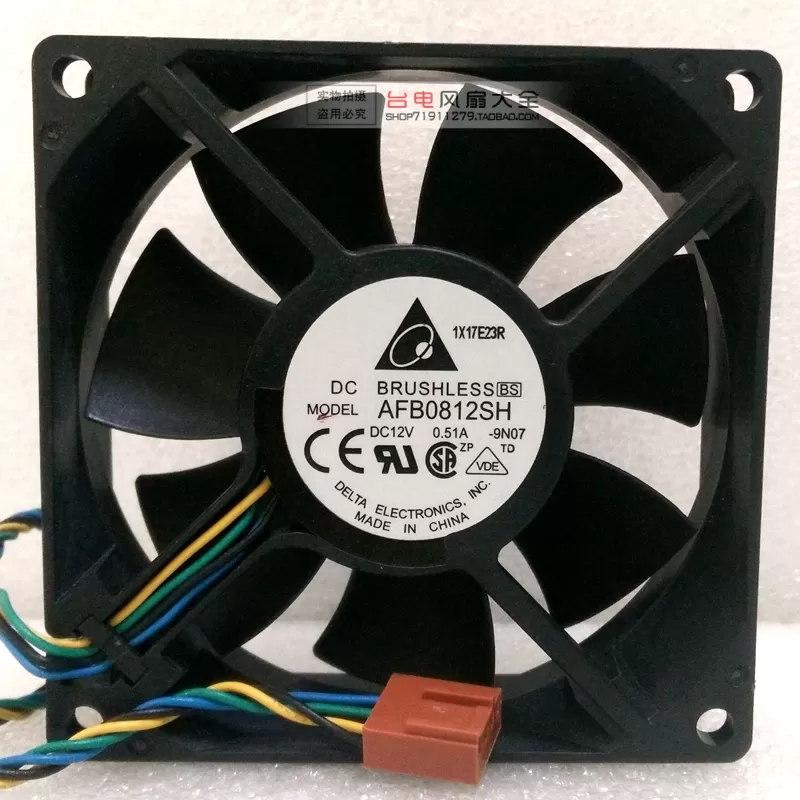

Model: AFB0812SH
Size: 80x80x25mm.
Voltage: 12V
Peak current: 0.51A
Rated current: 0.234A
Speed: 4300RPM
Air volume: 44.72CFM Air pressure: 6.12MMH20 (1.32 m3/min)
Noise: 34.0dB A.
Interface: 4 wires (Yellow wire positive Black wire Negative Green wire FG function Blue wire PWM power)
Bearing: Double ball bearing
