Description
● Size: 1x1x38MM

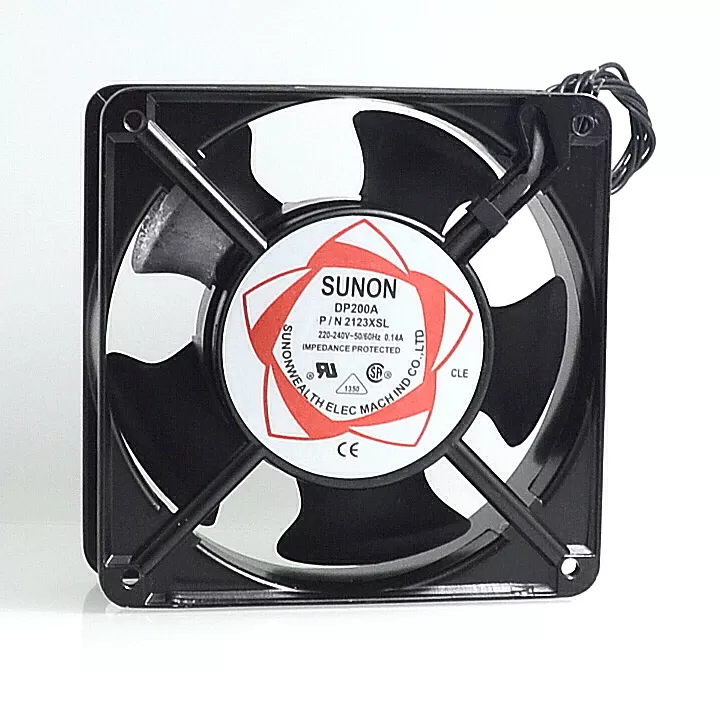

● Model: DP0A P/N 2123XSL
● bearing structure:S: Sleeve (Oil bearing)
● Voltage: 2~240V (AC)
● Power: 29/31 (W)
● Frequency: 50/60 (Hz)
● Speed: 2700-3100 (R / min)
● Air volume: 2.68 / 3.25 (m3 / min)
● Noise: 43/46 (dB-A)
● Weight: 550 (g)
● Packing: no separate packaging, ordinary carton packaging 40/1 Zhengxiang;
● frame: black paint aluminum alloy die-casting anti-corrosion, moisture-proof structure;
● fan: injection molding, PBT + 30% glass + VO grade flame retardant;
● Bearing:Low noise imported oil bearing;
●Insulation: enameled wire with B-class insulation, temperature 1 degrees Celsius;
● Wiring method: lead type (line length 25CM)
Insulation resistance: 500 megohm above;
● withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
● Operating voltage:110V (voltage range: 85V~125V)
● Operating voltage: 2V (voltage range: 185V~245V)
● fan rotation: counterclockwise from the direction of the fan;
● Ambient temperature (°): – °~ 50 ° B: (oil bearing)
● life: working environment temperature 40 ° B: (oil bearing) 30000 (hours)
