Description

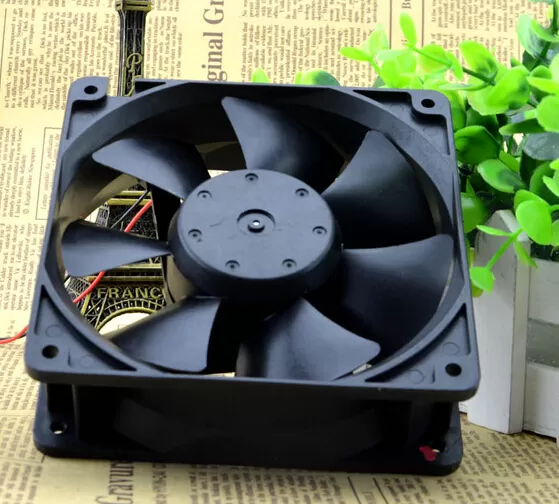

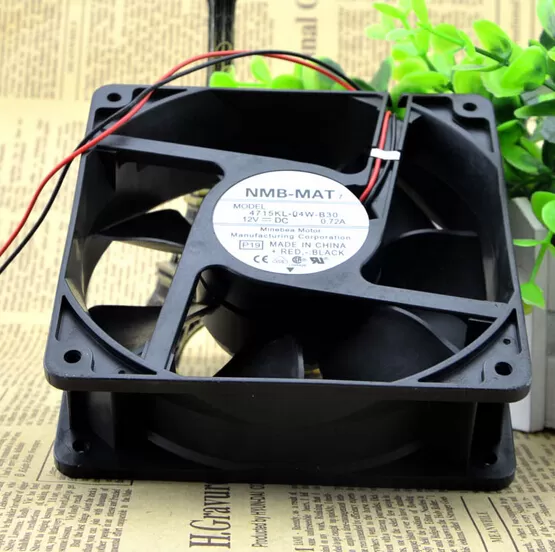

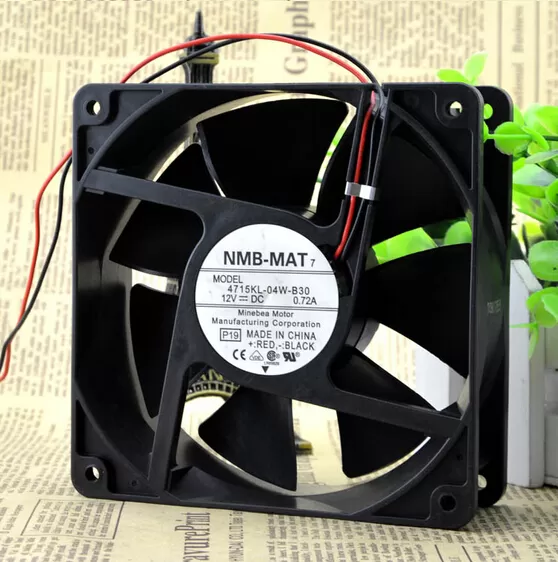

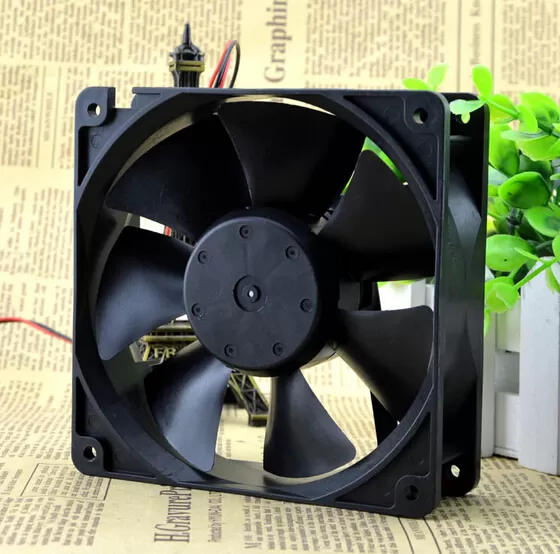

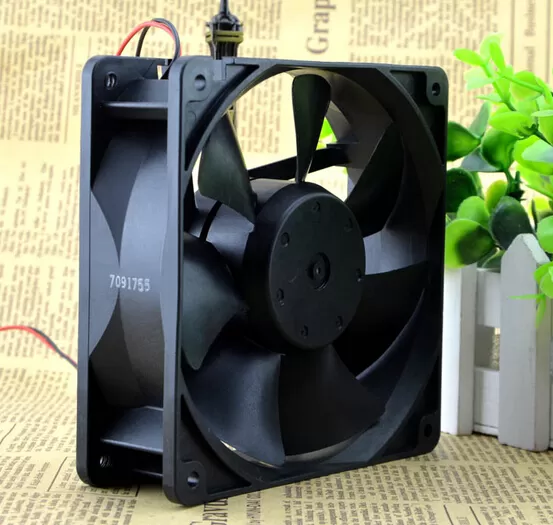

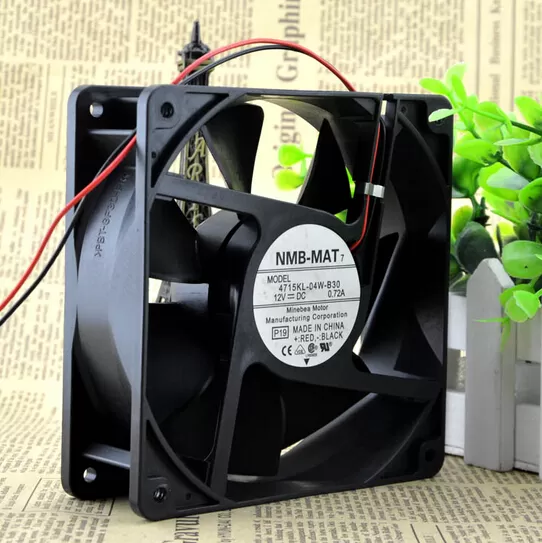

Genuine original NMB 12038 4715KL-04W-B30 DC12V 0.72A 2 lines radiating fan
Product Name: 4715KL-04W-B30
Product specifications: 120MM x 120MM x 38MM
Input voltage: DC12V
Voltage range: DC8V.–12.6V
Motor speed: 3600 rpm
Working current: 0.72A
Input power: 8.6W
Air flow: 2.68 cubic meters / minute
Direction of rotation: from the rotor, direction counterclockwise rotation
Pressure range: 110Pa
Bearing structure: maintenance free NMB double ball bearing
Service life: 25 degrees C L10 the life expectancy of 50000 hours
Insulation grade: E
The noise index: 50
The temperature range of 70 DEG C: -10.
Materials: one fan frame: injection molding, PBT 30% + glass + VO level flame retardant fan: a injection molding,
PBT 30% + glass + VO level flame retardant used in compliance with international environmental standards America GE plastic ring
