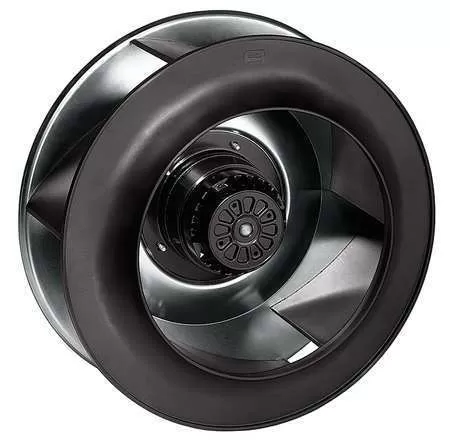

EBM-PAPST R4E355-AF05-09 Motorized Impeller 14-1/8 in 230VAC

$316.52

10 in stock

SKU: 381804372590 Category: Tag: Brand:

Description

EBM-PAPST R4E355-AF05-09 Motorized Impeller, 14-1/8 in 230VAC

Motorized Impeller, Impeller Type Backward Curve, Motor Type Permanent Split Capacitor, Fan Dia. 14-1/8 In., CFM @ 0.000-In. SP 1612, Voltage 230VAC, 1.33 Amps, 270 Watts, 70 dBA, Max. Ambient Temp. 104 Degrees F, Depth 6-1/2 In., Bolt Circle Dia. 3-1/2 In., Blade Material Fiberglass Reinforced Polyamide, Mounting Position All Position Except Rotor Up, 60 Hz, Thermal Protection Auto, Standards UL & CSA Component Recognized Motor

Additional information

Max. Ambient Temp. (F)

104

Mounting Position

All Position Except Rotor Up

Max. Ambient Temp.

104 Degrees F

Bolt Circle Dia.

3-1/2"

dBA

70

CFM @ 0.000-In. SP

1612

Thermal Protection

Auto

Impeller Type

Backward Curve

Bolt Circle Dia. (In.)

3-1/2

Fan Dia.

14-1/8"

Watts

270

Hz

60

Agency Compliance

UL & CSA Component Recognized Motor

Depth

6-1/2"

NumberOfItems

1

Motor Type

Permanent Split Capacitor

Brand

EBM-PAPST

MPN

R4E355-AF05-09

Depth (In.)

6-1/2

Amps

1.33

Voltage

230VAC

Blade Material

Fiberglass Reinforced Polyamide
