Sale!

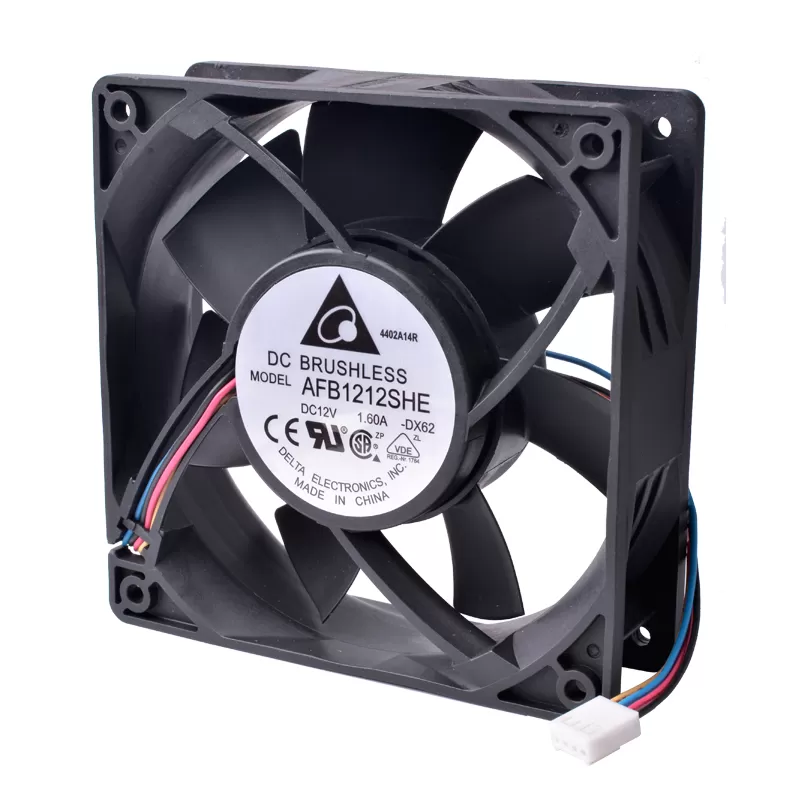

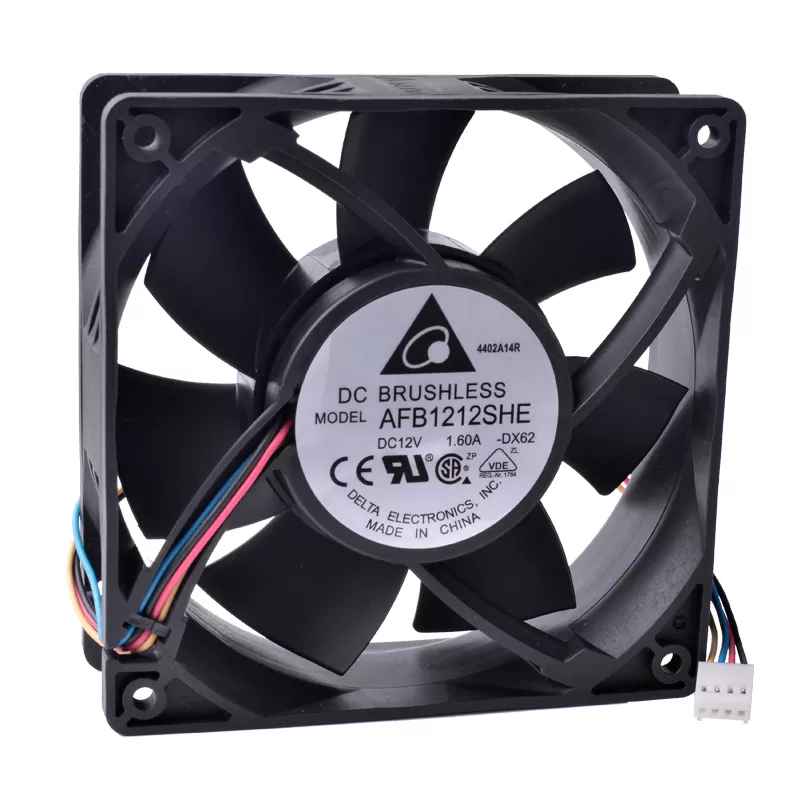

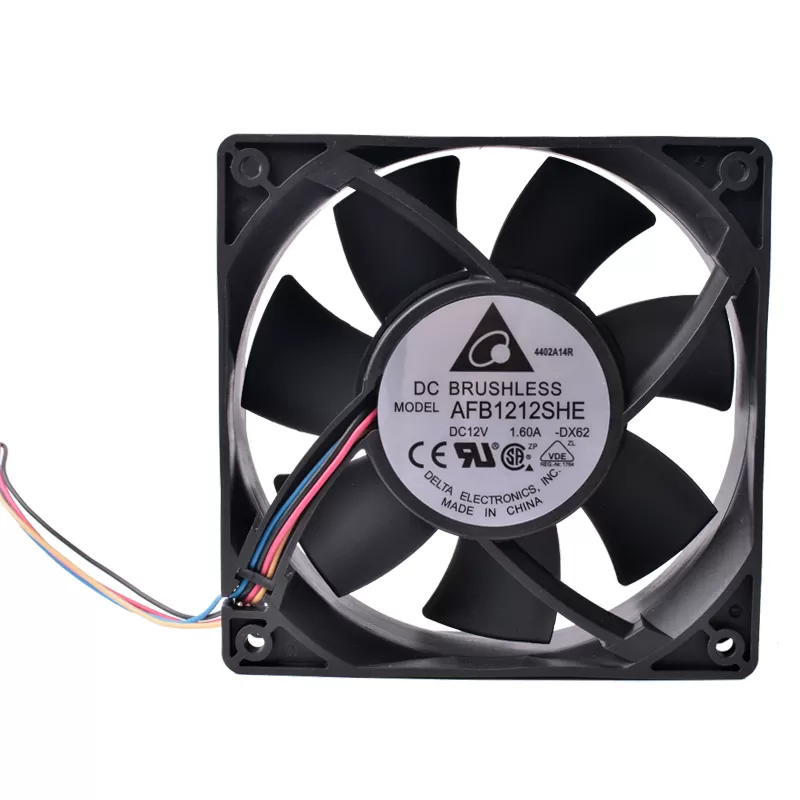

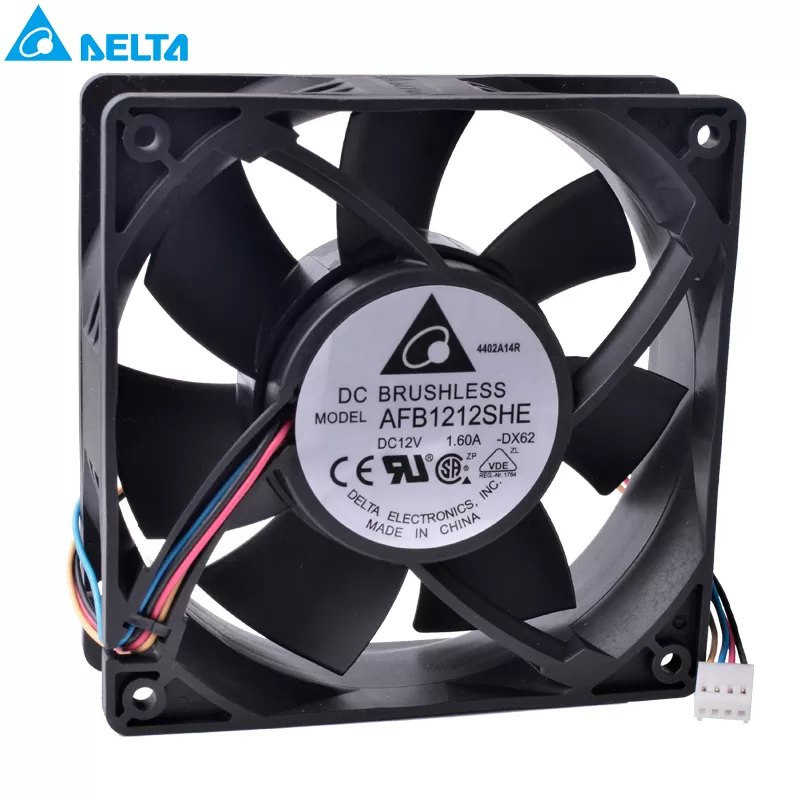

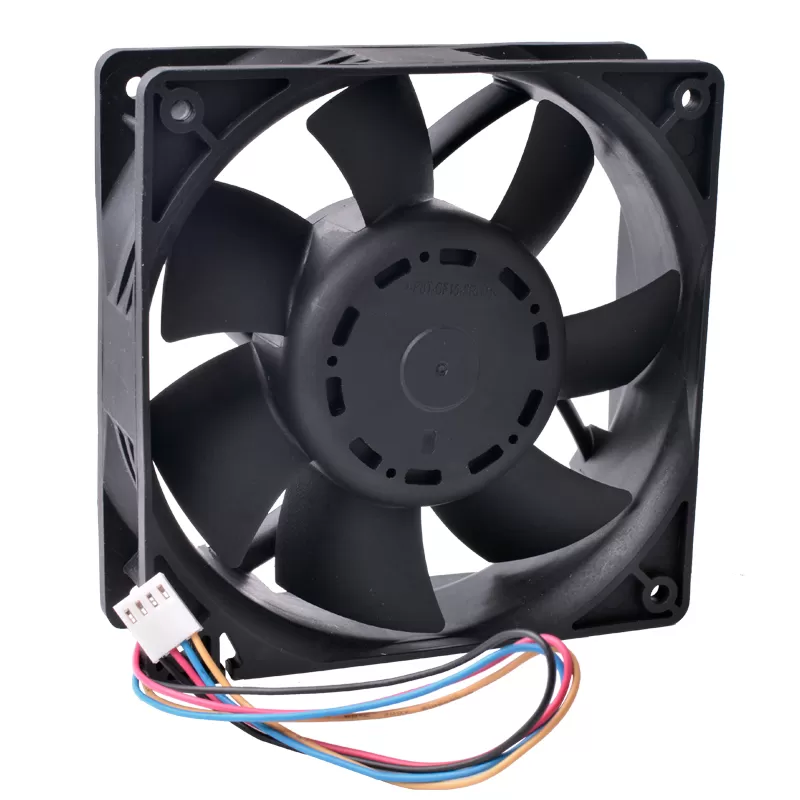

DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan

$20.00 $9.99

6 in stock

SKU: AFB1212SHE Category: Tag: Brand:

Description

Manufacturer: DELTA

Model: AFB1212SHE

Lead :4 lines (support temperature control)

Line length: 30 cm

Interface: main board 4P interface)

Voltage: DC 12 v

Current :1.60A nominal.

Speed: the maximum speed of 4000RPM under normal temperature of 2100RPM.

Air volume :45CFM normal temperature 154.5CFM full speed maximum turn.

Noise :23dB-A room temperature 45.4db -A full speed.

Bearing: high precision double ball bearing.

Fan frame: injection molding, PBT+ 30% fiberglass VO flame retardant.

Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.

Fan rotation: the direction of the fan blade is counterclockwise.

Operating temperature: -10 degrees Celsius to +70 degrees Celsius.

Storage temperature: -40 degrees Celsius to +70 degrees Celsius.

Power supply range: plus or minus 15% of rated power supply.

Insulation resistance: greater than 500 megohm.

Voltage resistance: 0.5ma 500V / 1 minute leakage current.

Working life: 80000 hours at ambient temperature of 25 degrees.

Scope :DELL Precision 390 workstation CPU heat dissipation.

DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan
DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan

DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan

DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan

DELTA AFB1212SHE 12V 1.6A 4-wire 4Pin PWM double ball bearing cooling fan

Additional information

Brand Name

Delta

Fan Speed Control

3500RPM

Compatible CPU

DELL

Bearing

Two Ball Bearing

Lines

4 Lines

Application

Computer Case

Package

Yes

Fan Life

100000 hrs

Model Number

AFB1212SHE

Fan Size

Other

Noise

Other

Type

Fan

Power Interface

4PIN
