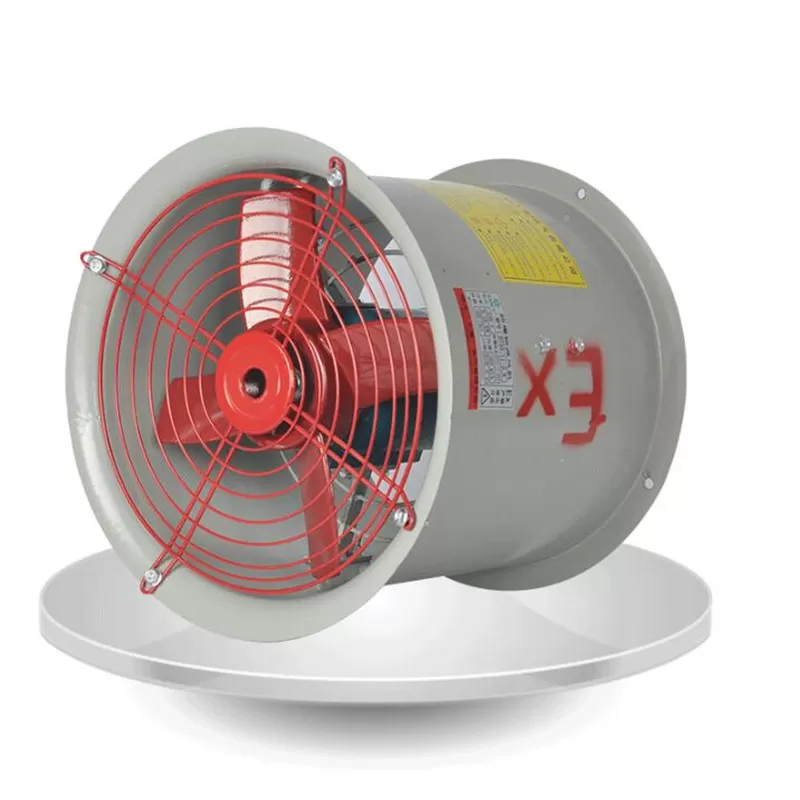

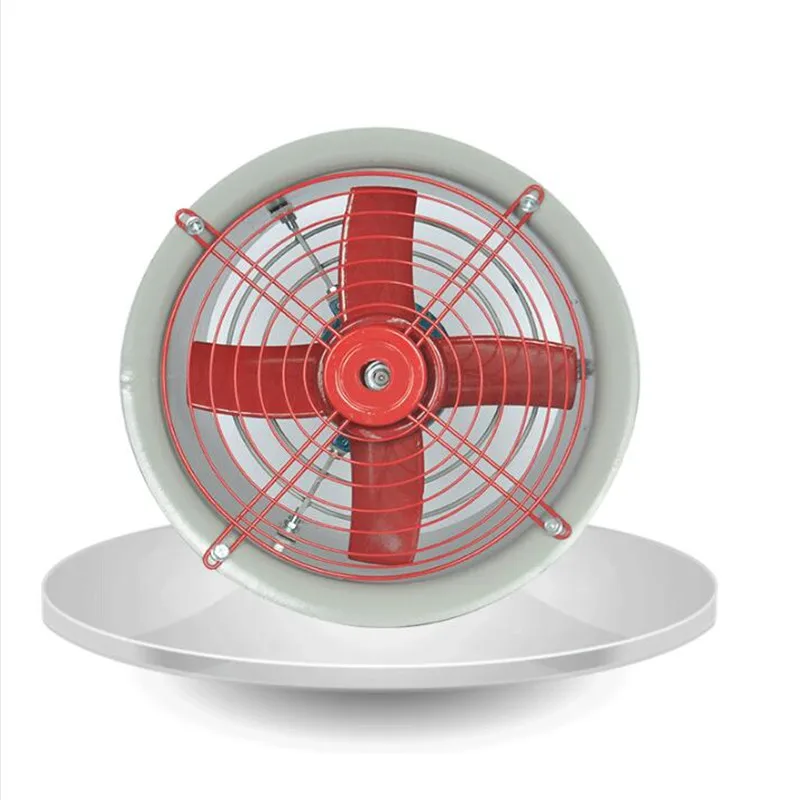

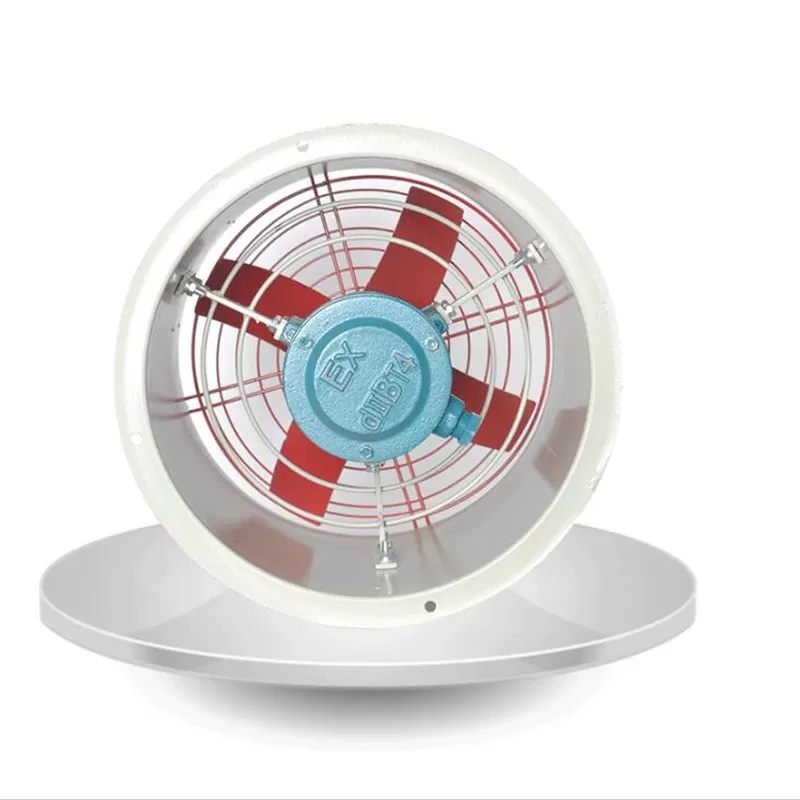

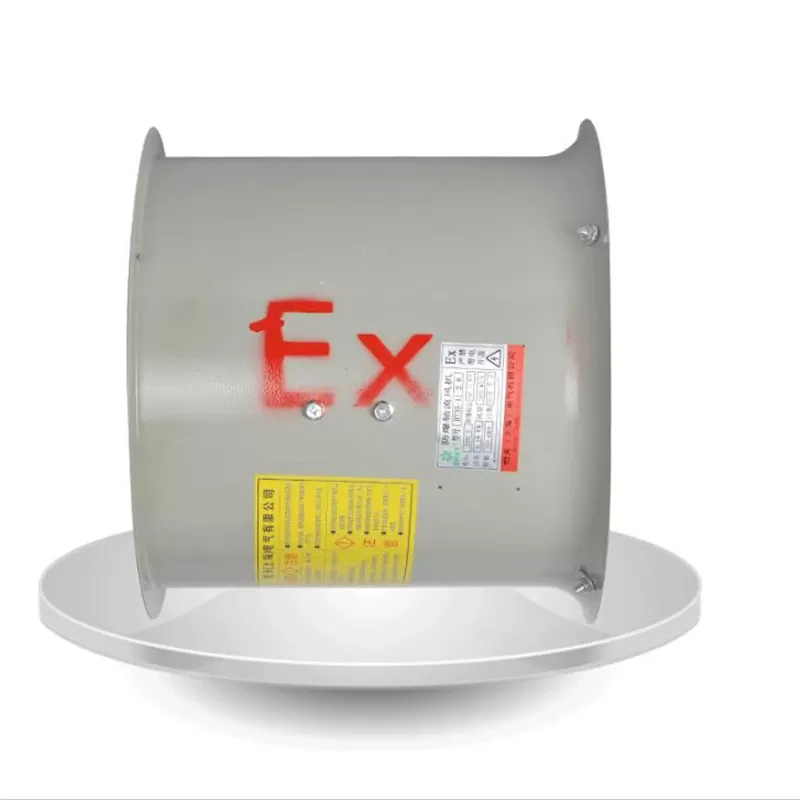

Axial fan 220V 180W/250W Explosion proof axial fan Pure copper motor Large air volume Factory tunnel Ventilation

Description

Explosion-proof axial fans have low noise. Air volume, reliable explosion-proof, wide range of performance parameters, easy installation
Advanced external rotor or inner rotor fan motor
Use and transmission of flammable and explosive non-corrosive gases, the ambient temperature can not exceed 60 degrees Celsius.
Used in flammable and explosive gas environments, humid environments, harsh environments, coal mines. Underground mine, tunnel. factory. Dangerous gas warehouses, shopping malls, fire exits, etc.

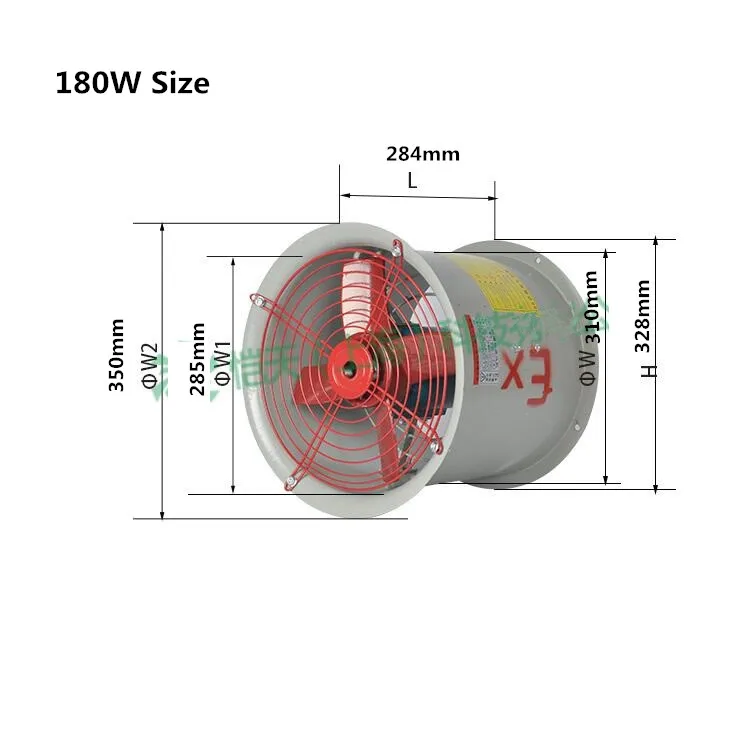

Model:2.8
Voltage: 220V/330V
Blade diameter: 280mm
Speed: 1450r/min
Power: 180W
Air volume: 1605m/h
Wind pressure: 60Pa

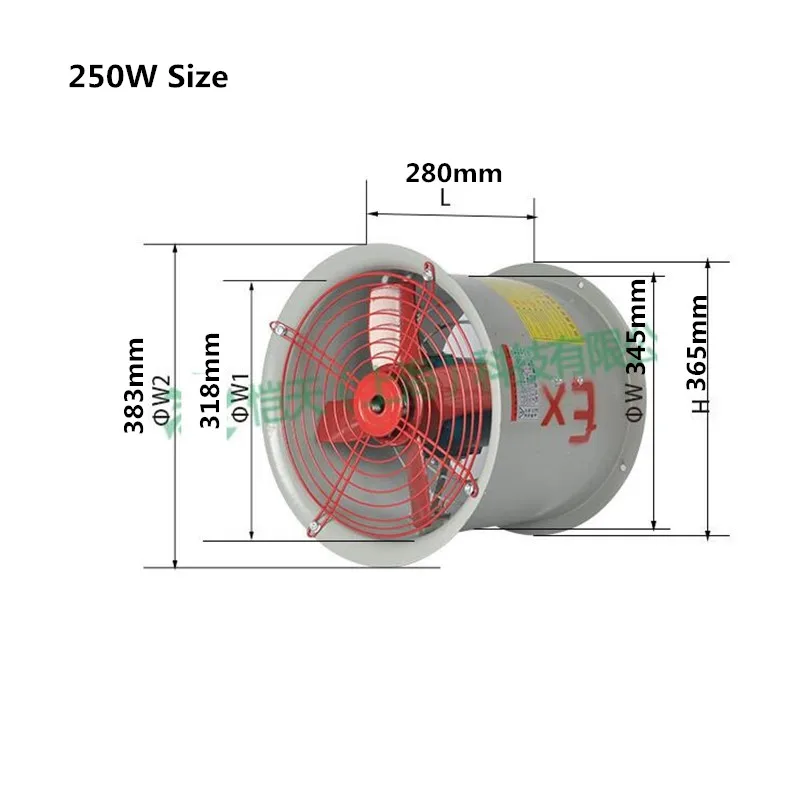

Model:3.15
Voltage: 220V
Blade diameter: 315mm
Speed: 1450r/min
Power: 250W
Air volume: 2273m3/h
Wind pressure: 74Pa
