ALSEYE a-100L(B) Fan Controller, Blue Touch Screen 6 Channels Computer Fan speed control for CPU Cooler/Water Cooling

$47.05 $39.05

7 in stock

SKU: 32347094974 Category:


ALSEYE a-100L(B) 6 Channel fan speed controller gaming computer fan 5.25 LCD touch screen for CPU cooler / Liquid / Water Cooling Pump / case fan control

Choose your color

a-100L series without Wifi function

a-100H series with Wifi function


1. Default shipment declared value for USD$15,

If you have any requirement about this, please tell us.

2. We will pack it very well to prevent damage in transit,

if you recieve items are damaged, please contact us immediately.

Wish you a good day!

Thank you very much.

You may say, it is so expensive!

But, have you compared our products with other brands?

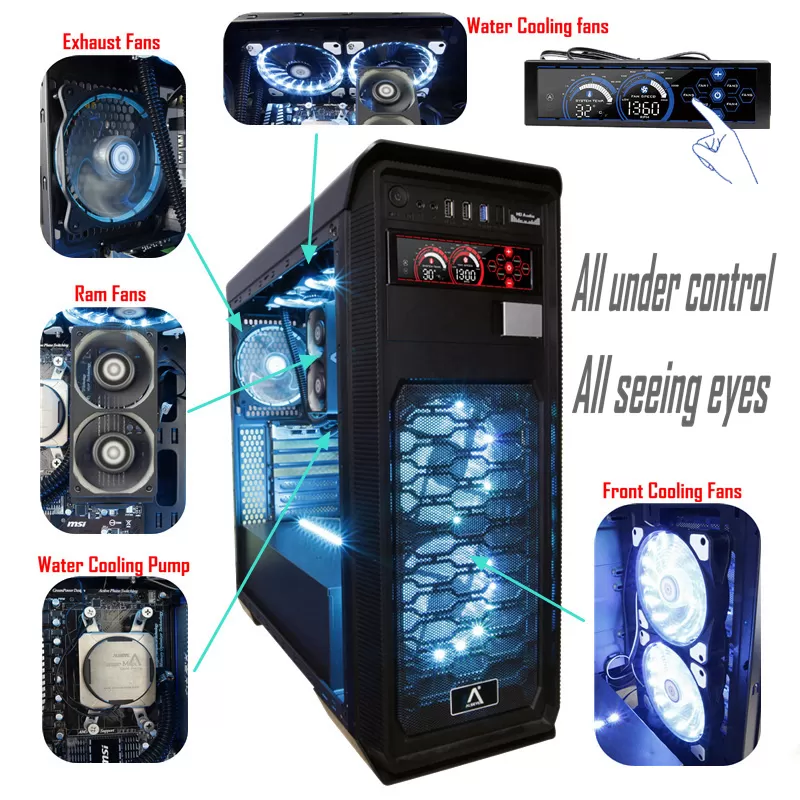

For 6 channels by 24 watts and for control of water cooling pump it is not expensive absolutely.

It is the newest design currently in the world.

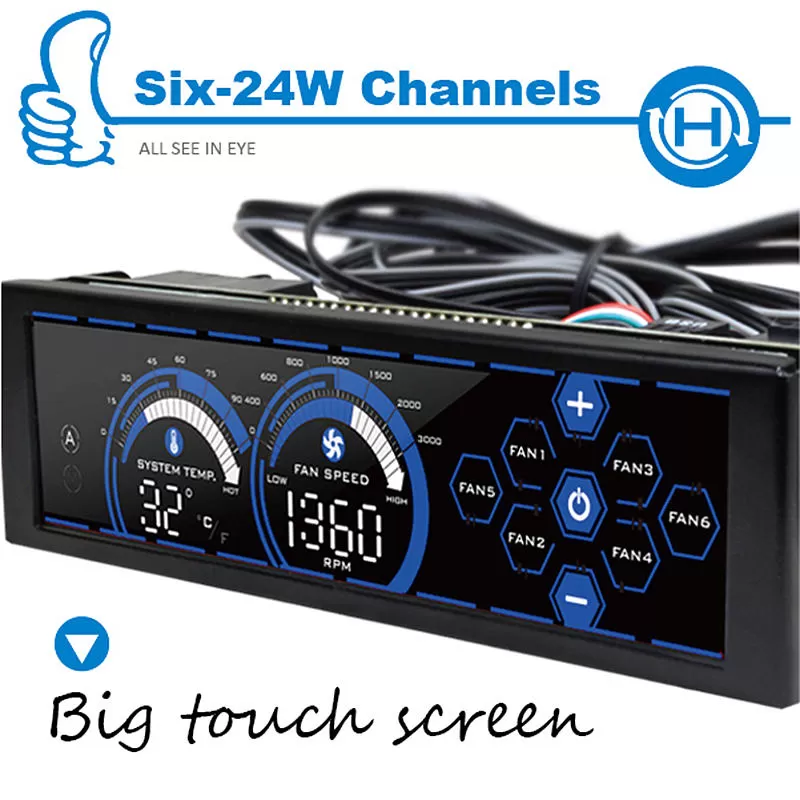

You will like it! * Features 1. Super-big single bay LCD touch screen; 2. Six channels for temperature & fan speed control. Usually it controls 6 fans. But you may use 1 to 2 adapter (for 2 fans, but only one fan with FG signal) or 1 to 3 adapter (for 3 fans, but only one fan with FG signal). So it may also control 12 fans or 18 fans depending on your additional cable type; 3. 6×24 watt channels for liquid /water cooling pump control; 4. Integrated short circuit protection; 5. Be compatible with 3pin & 4pin fans. * SPECIFICATIONS

  • Demensions
  • 147*66*42.6 mm
  • Weight
  • 258.8 g
  • Material
  • LCD Screen, Metal, PCB
  • Fan Connector
  • 3 pin/4 pin
  • Included Accessories
  • 4 x M3 Screws
  • Temperature Sensors
  • 6 x Temperature Sensors
  • Control Modes
  • Manual / Automatic
  • Fan Channel Quantity
  • 6
  • Fan Channel Wattage
  • 24W x 2 + 15W x 4
  • Temperature Range
  • 0 to 100 degree centigrade
  • Measurement Frequency
  • 2 Seconds
  • Temperature Alarm Range
  • 25 to 90 degree centigrade
  • Minimum Power To Fans
  • 40%
  • Screen Size
  • 5.25 Inches
  • Screen Type
  • Resistive Touch
  • Fan Control Method
  • PWM

Notice: This model is WITHOUT Wifi function. a-100L, a-100L(WR) and a-100L(R) don’t have WIFI function, either. Model WITH Wifi function please see a-100H or a-100H(B).


Shipping: (free shipping) which has tracking information that keep your item more safer . Items will ship within 3 business days on payment received. We are not responsible for wrong or undeliverable address. Delivery time: By airmail: 2-3 weeks to ASIA,WEST EURO,and North America. 3-4 weeks to South America,Mid-east,EAST-EURO and Africa. By EMS: 7-9 businessdays By DHL: 5-7 businessdays Refund: Full refund if products isn’t recieved in garanteed delivery time. Refund or re-send if products damaged in transit. (About Damage: Refuse to accept if the package have a obvious damage and take a picture) Return : If you are not please with our item about its quality , we can give you full refund 1. Contact us via email or ‘s message center and specify the problems and product conditions BEFORE you confirm receipt of the items on .com. We’ll appreciate that you let us know the problem details supplied with pictures. 2. Open dispute on .com and wait for notification. 3. Return the products within 7 days of ‘ notification. The items must be in original conditions as you receive them. 4. We will offer exchange, refund or other appropriate arrangement as we agreed after we receive the returned items. Please note that we are not responsible for any damage caused by misuse of the products Feedback: Your feedback is very important to us. If you are satisfied with our service and product. Pls give us positive feedback (5stars). If you are not satisfied with our service and product. Pls contact us before you give us the negative feedback or low stars. We beleive that everything can be resolved promptly via communication.

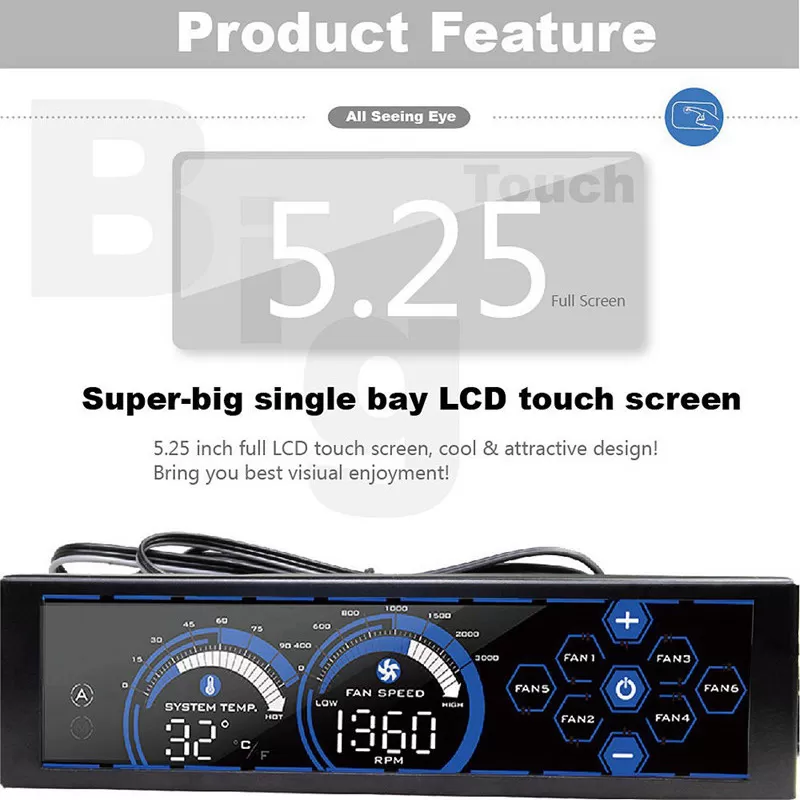

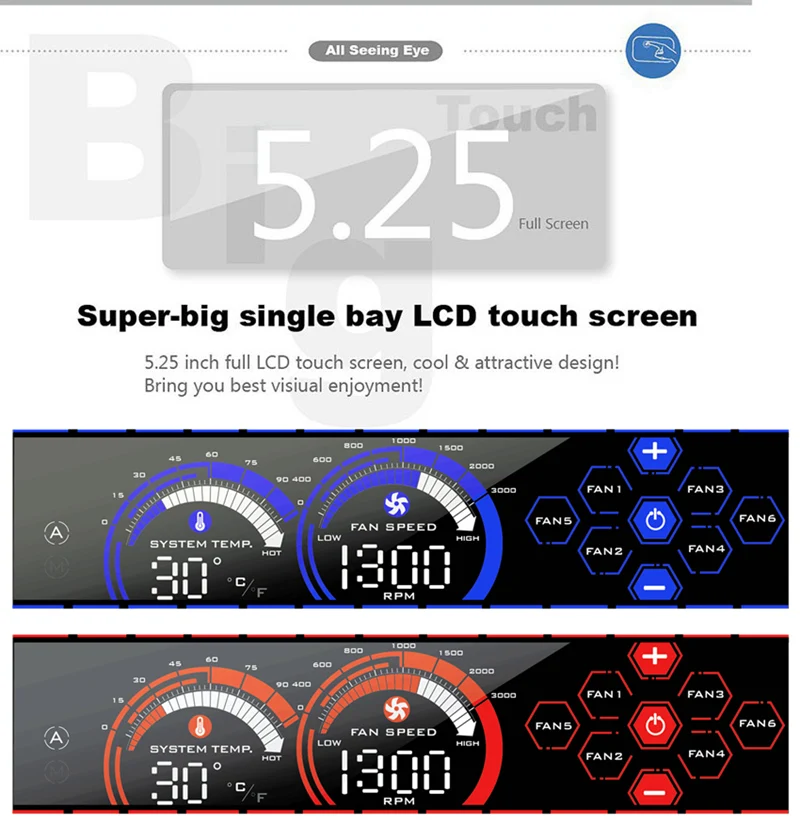

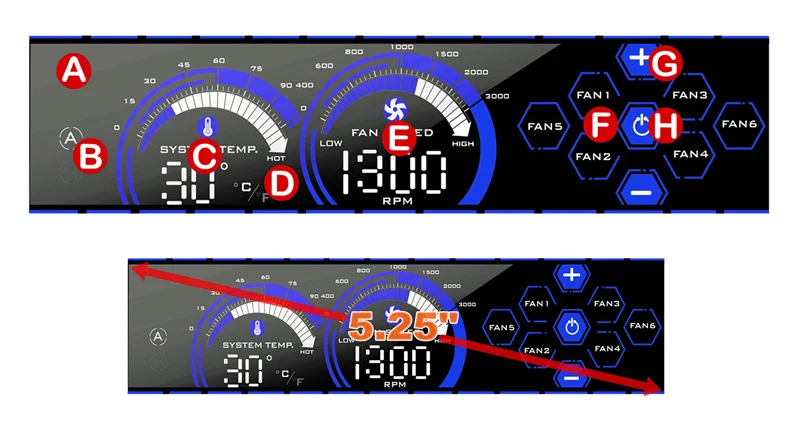

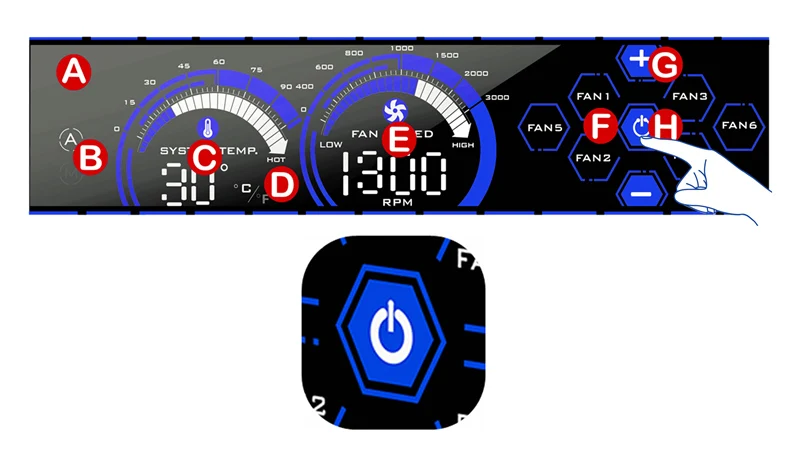

A: 5.25″ Super big touch screen Simple and clear but fashion display, players can be easily grasp the computer’s cooling system.

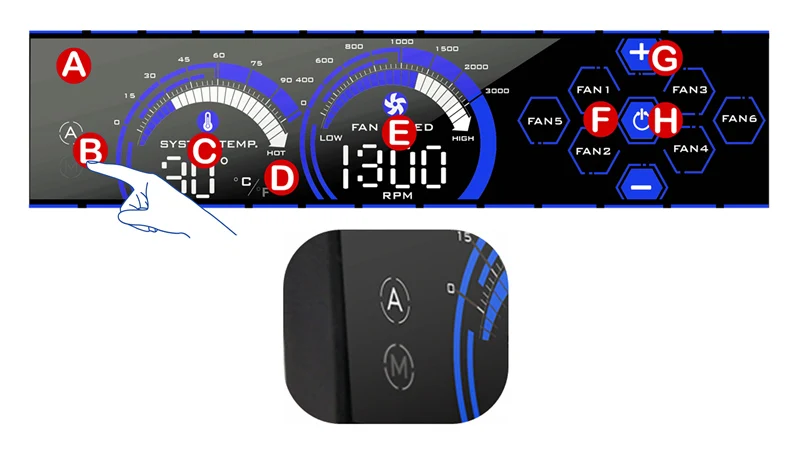

B: Automatic and Manual mode Automatic mode according to the temperature sensor, automatically set the appropriat fan speed, a unified system control multiple fans. While the manual mode according to the player preferences, adjust the individual fan speed, in order to obtain the ideal temperature of the system.

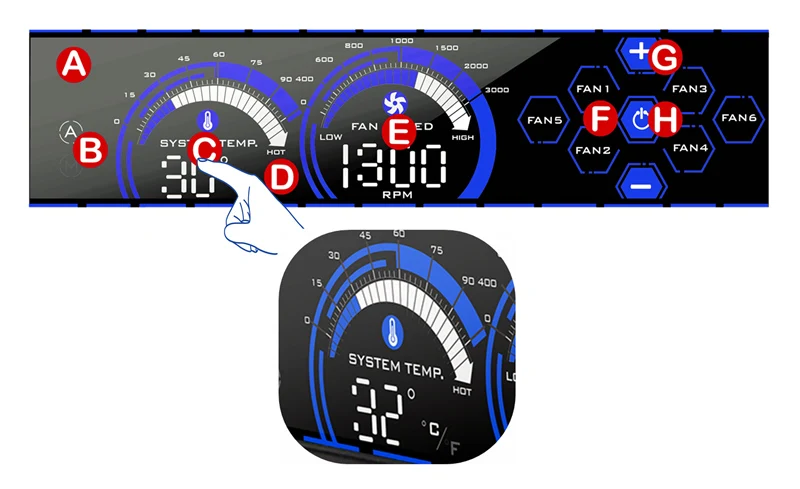

C: Temperature monitoring display Players can monitor the temperature through the temperature sensor at any time, and adjust the fan speed. In addition, you can adjust the required temperature monitoring preset, if there is more than the player preset temperature, there will be “beep” alarm.

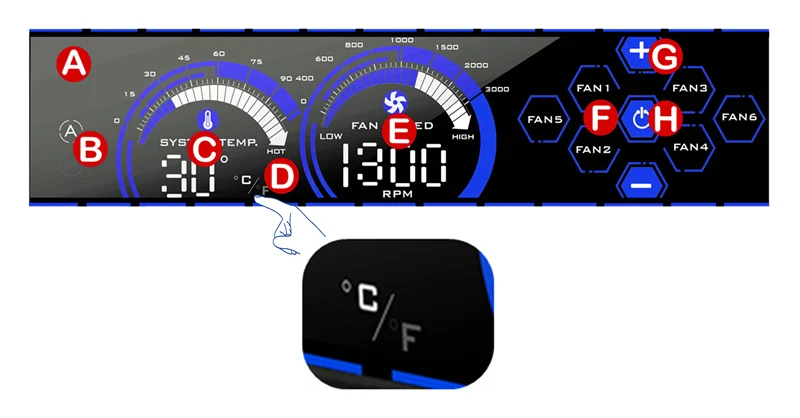

D: Degrees Celsius and Fahrenheit conversion Players can follow the preferences, touch the temperature symbol to convert degrees Celsius or Fahrenheit.

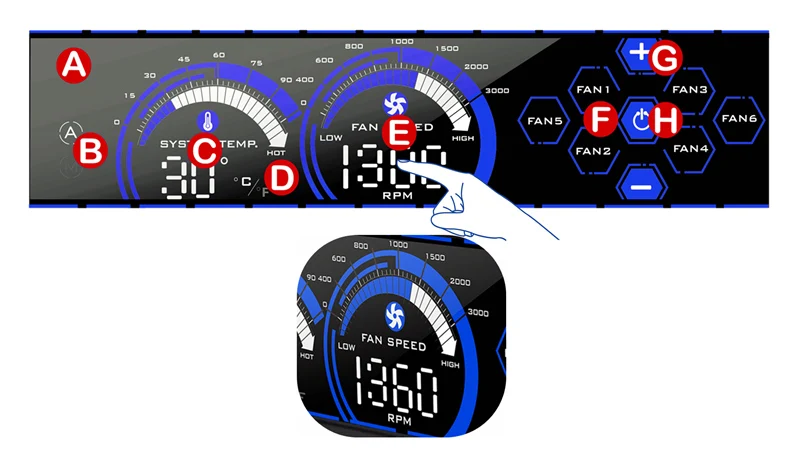

E: Fan speed monitoring display Players can always grasp the speed of each group of fans, combined with temperature display, adjust to the appropriate system temperature.

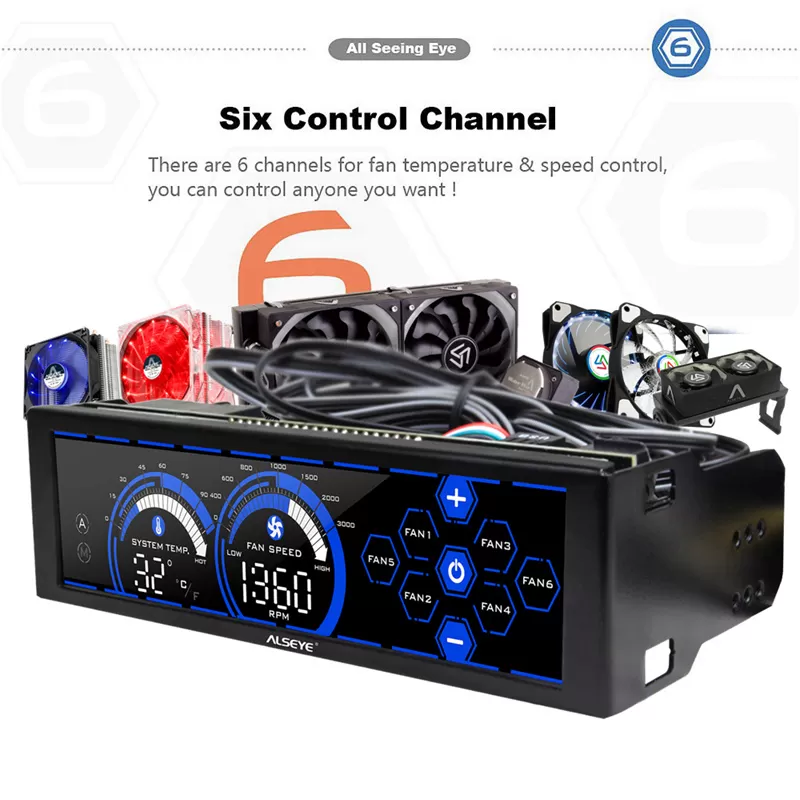

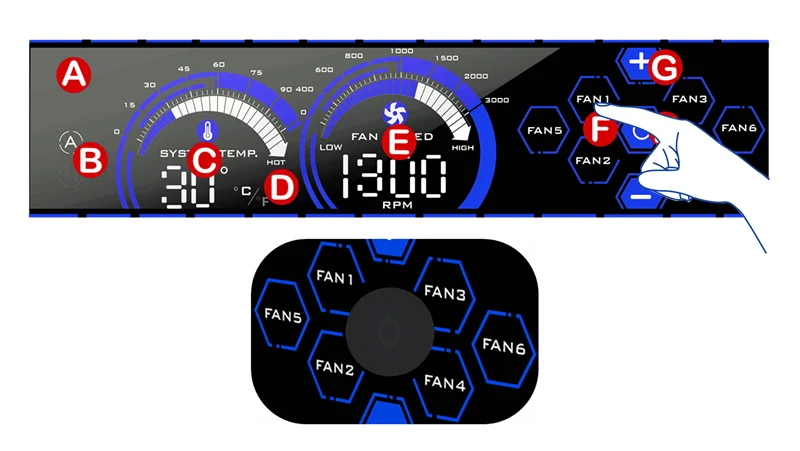

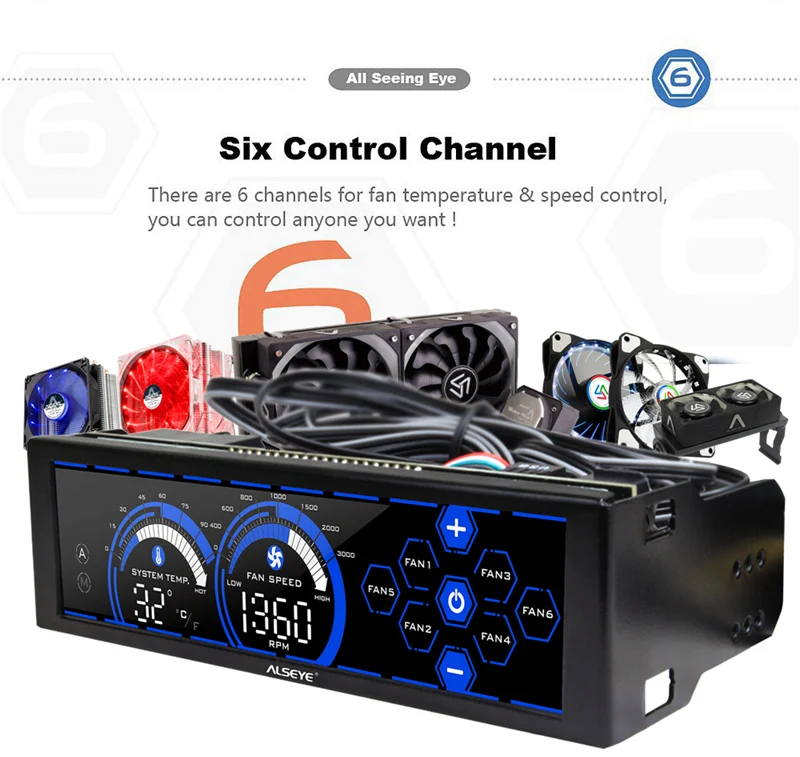

F: Independent fan channels Fan controller panel can support 6 groups of fans and has FAN1 – FAN6 independent channels, which can be set individually. The highest channel output up to 24W, can completely provide the power required for the chassis fans.

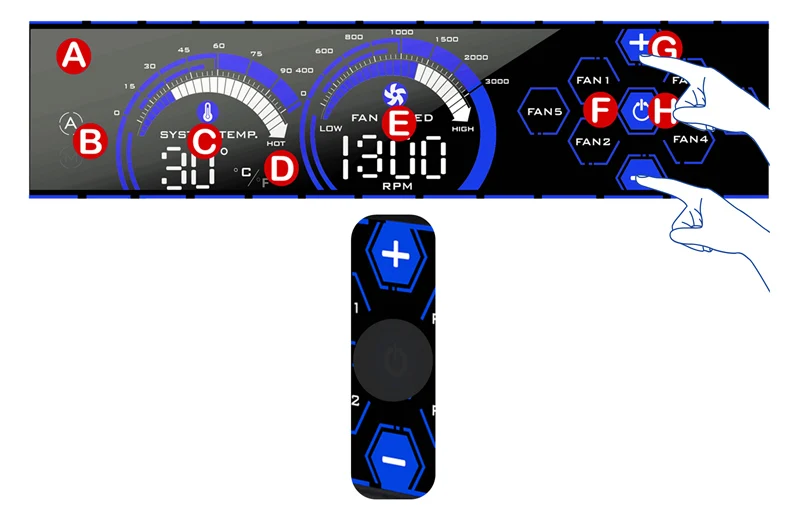

G: Temperature and Fan speed adjustment In manual mode, keep press the temperature, or FAN1, FAN2 … and FAN6 for about 3 seconds until the fan speed display flashing, and then use the plus or minus keys to adjust the temperature and fan speed.

H: Screen hibernation Keep press “power” button for about 5 seconds, the screen into sleep. The temperature and the fan groups keep working in the status of player’s seting.

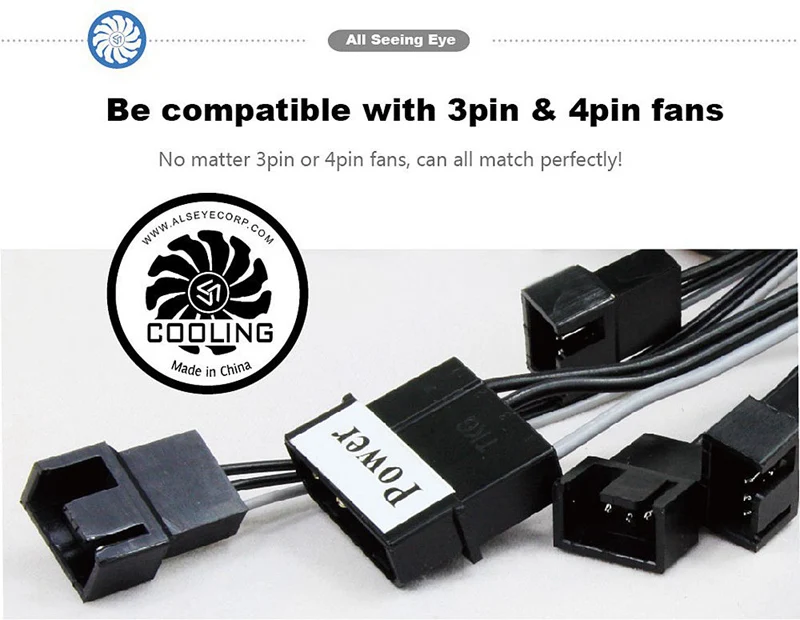

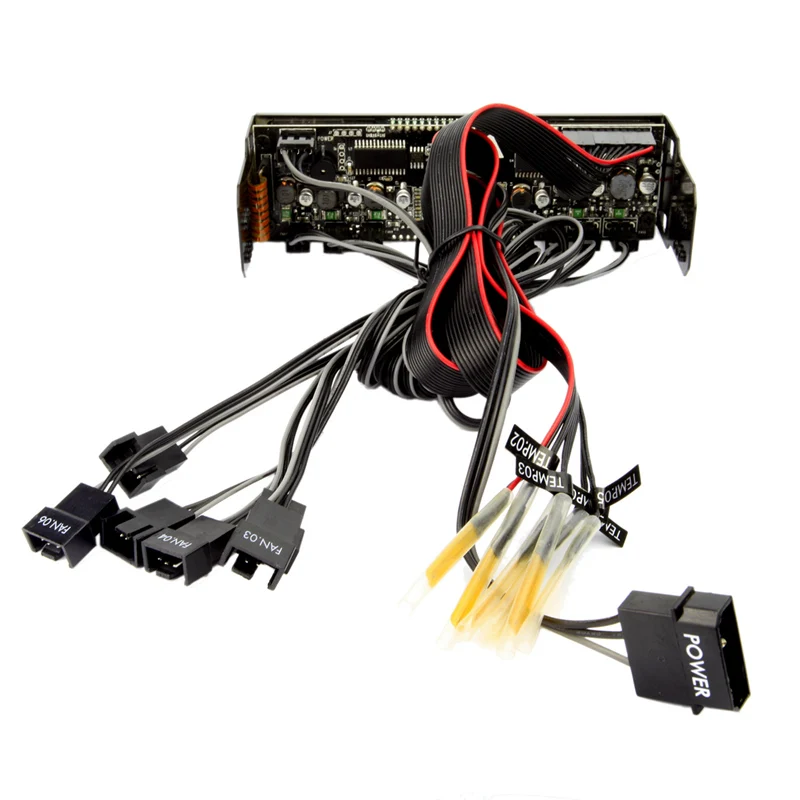

I: Cables Six fan lines with connector, can connect both 3pin and 4pin fans. Six temperature sensor lines, and a D-connector power line. All lines are longer than 600mm.

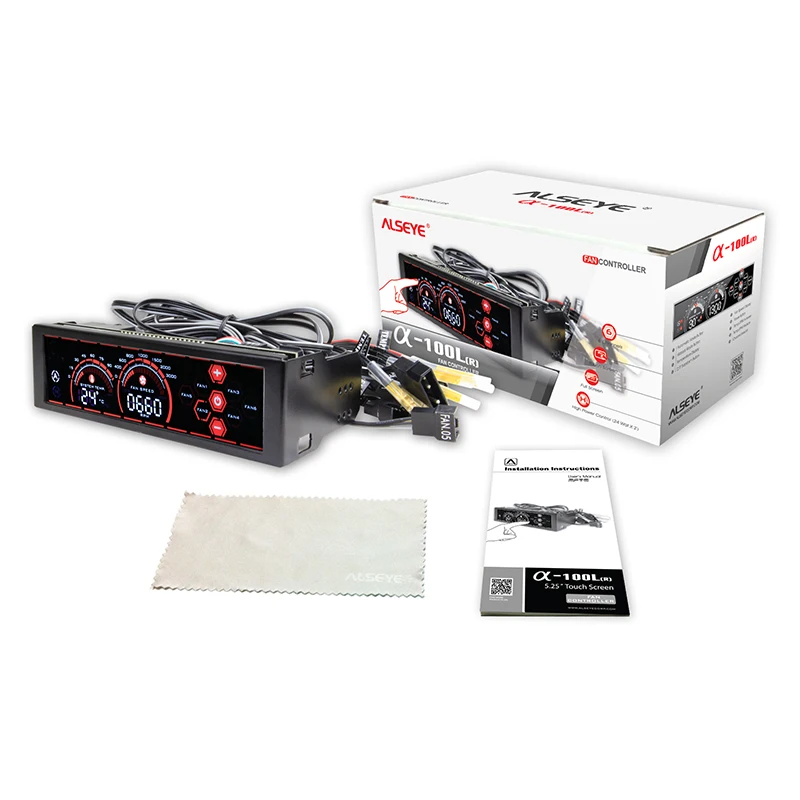

J: Package Including the host, manual, screen wipes, mounting screws.

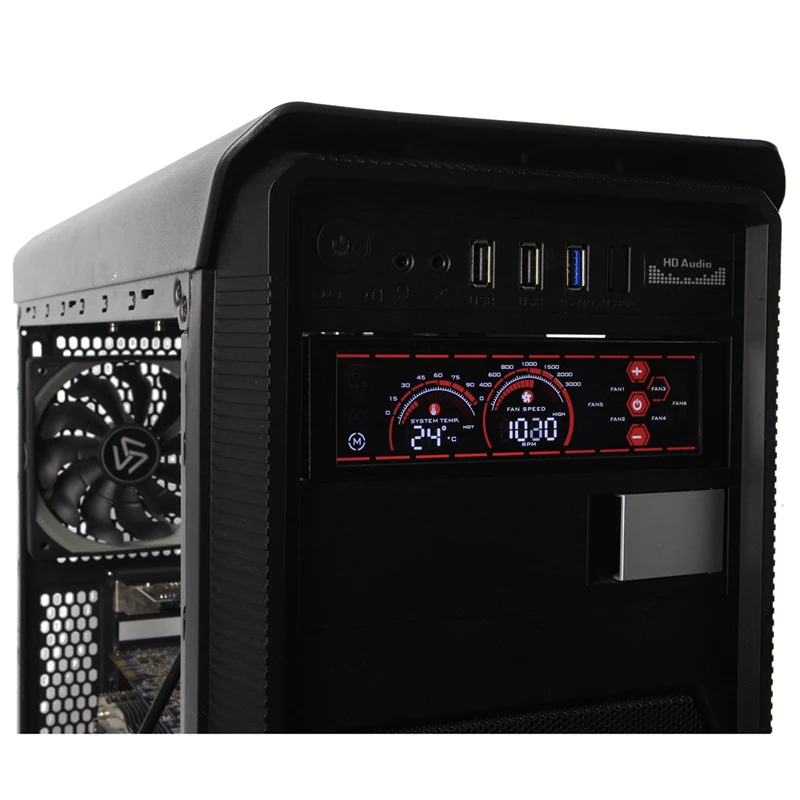

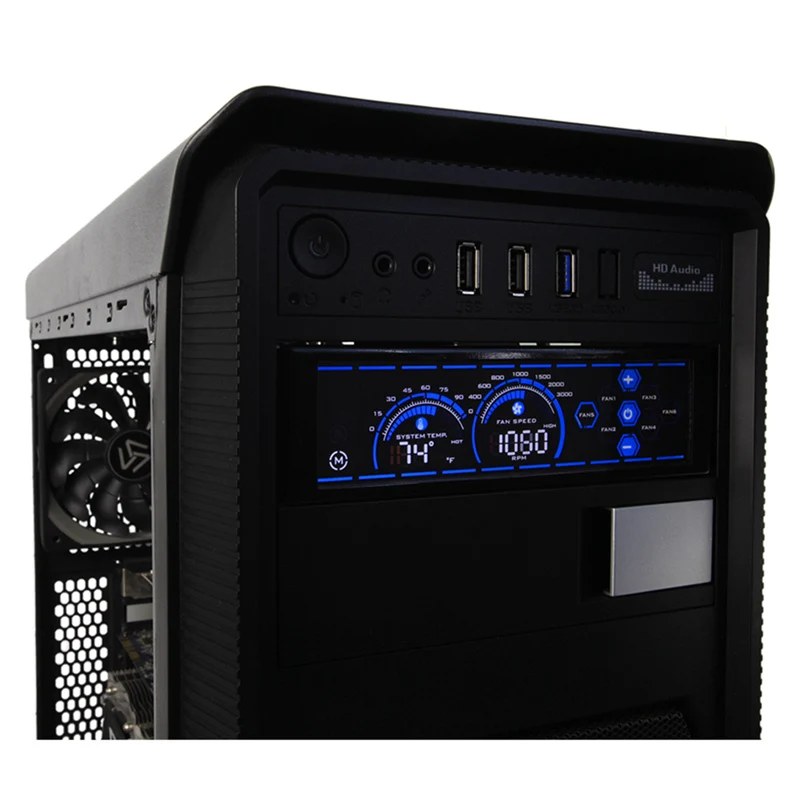

K: Easy to install Too easy, when you put your CD-ROM drive removed from the chassis, you will understand how to install.

Buy it or not , that is a question.

However doesn’t matter.

Plaese add it to your wish list or cart,

and come back when you considered well.

Additional information


for fans -12V, for LCD and IC -5V



Fan Size


Power Interface


length of the wires for the fans

60 cm

length of the wires for the sensors

64 cm

Channel Power

FAN1-2(24W per) / FAN3-6 (15W per)

Screen Size

5.25 inch

Retailed box

The same as 100L(R)

Procuct color

Black frame & Blue screen

Fan Life

100000 hrs

Heatsink Material

Copper & Aluminum


Fluid Bearing


Computer Case

Air Volume


Model Number

a-100L(B) – (Black frame & Blue screen)

Compatible CPU








Fan Speed Control


Brand Name



4 Lines
