Description
Size: 92 * 92 * 25mm
Bearings: high precision double ball

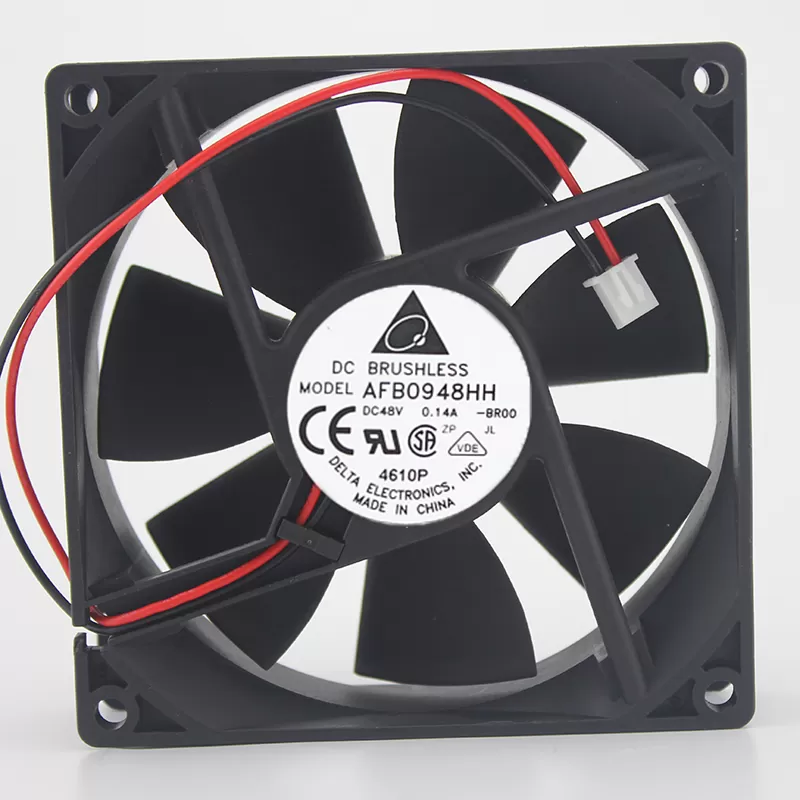

Model: AFB0948HH
Voltage: 48VDC
Current: 0.14A
Interface: 3-wire / 3PIN interface
Life: 8.0000 hours (25 °, 45 ~ 85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5mA 500V / 1 minute;
Working life: ambient temperature 25 degrees 8000 hours \
