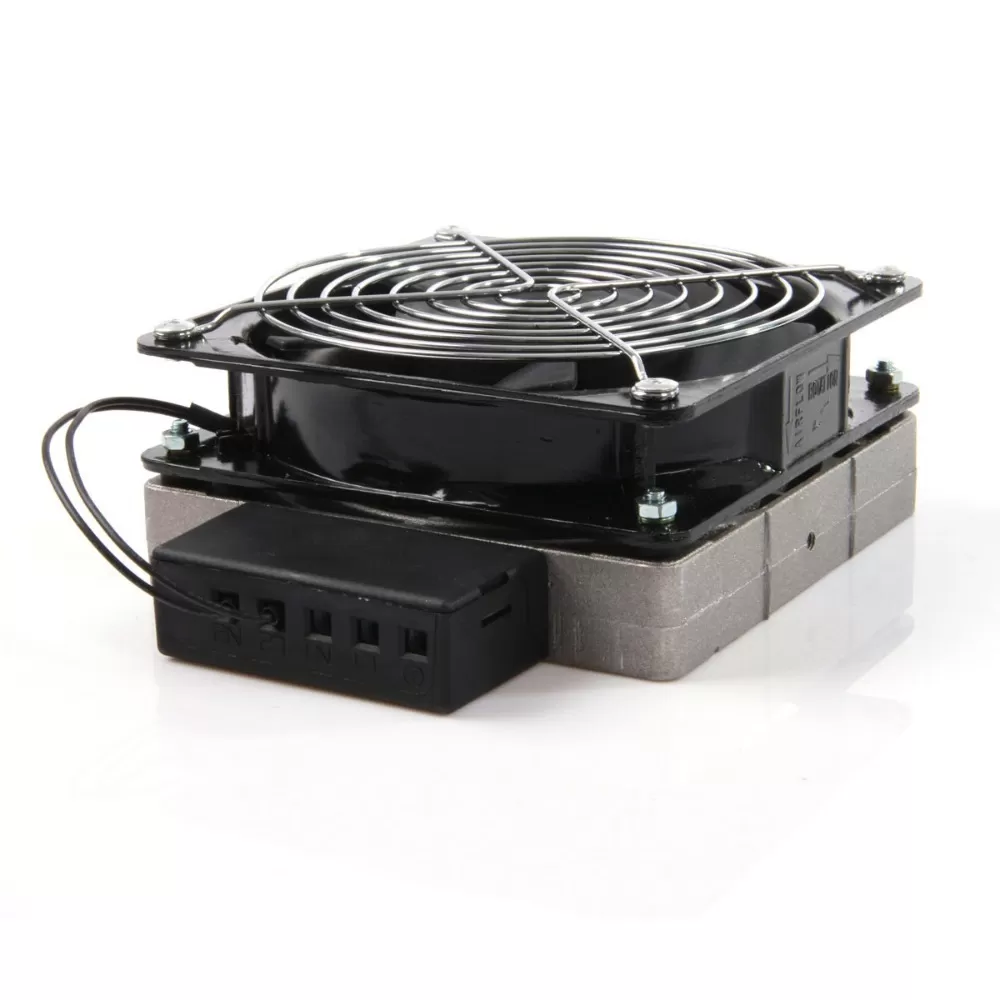

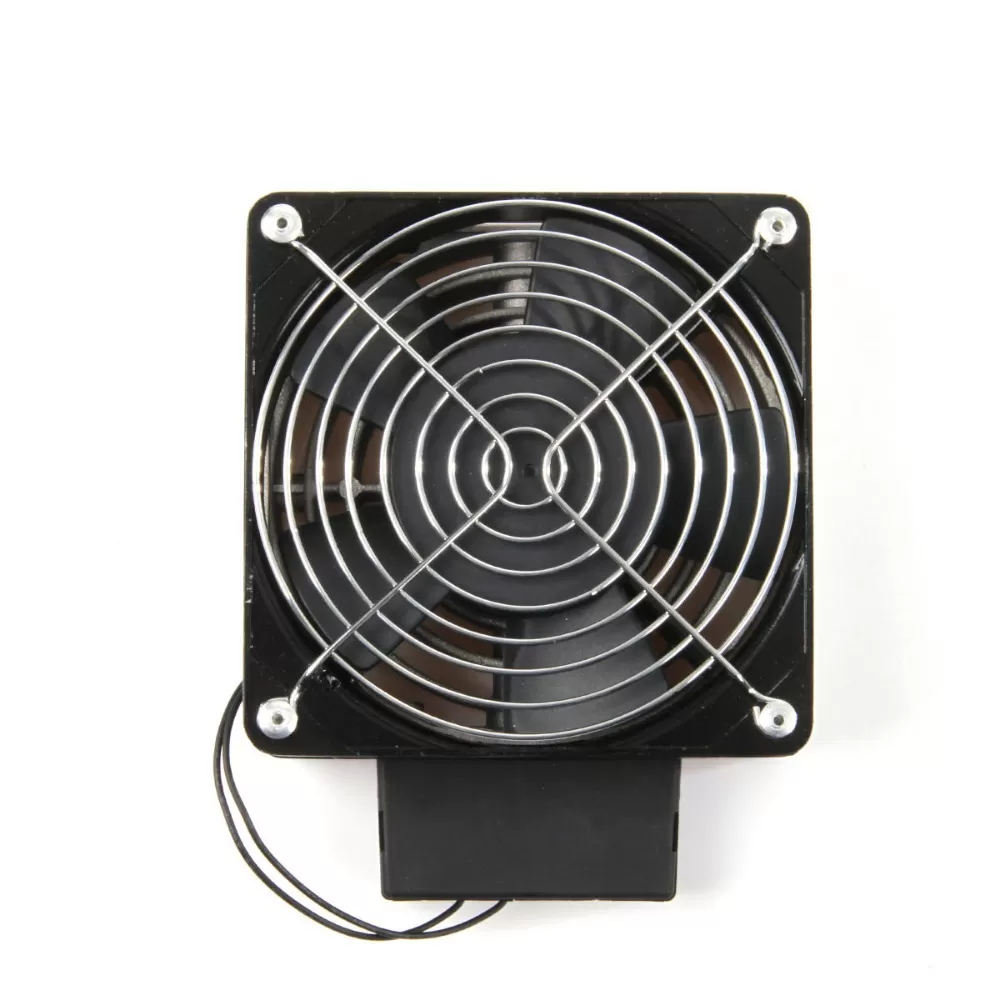

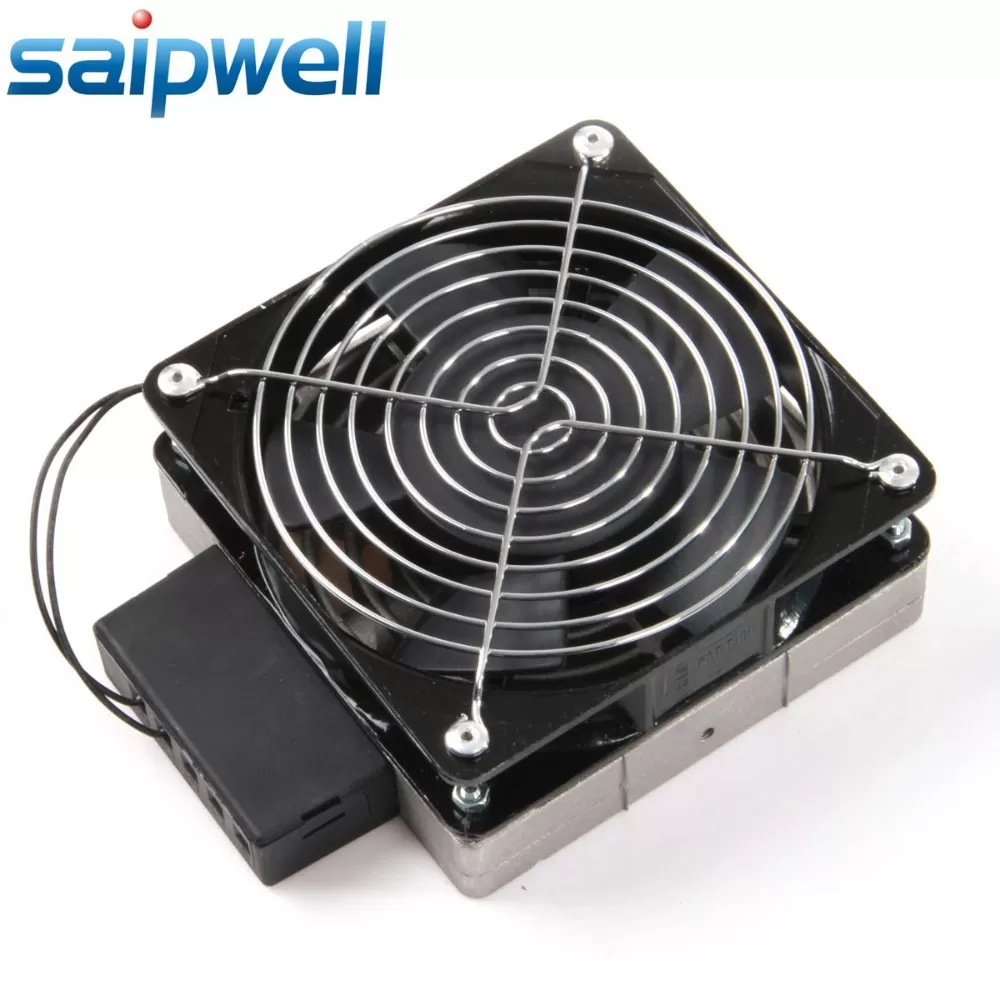

400w Heater with Fan Industrial Cabinet Fan Heater HVL 031-400W
- Compact
- Flat design
- High air through-flow
- Temperature safety cut-out
- Clip fixing
The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with fan (HVL 031) as well as without fan (HV 031).
|
HVL 031 |
Heater with fan |
|
Heating element |
high performance cartridge |
|
Temperature safety cut-out |
to protect against overheating in case of fan failure |
|
Heater body |
die-cast aluminium (glass bead blasted) |
|
Connection |
3-pole screw connector 2.5mm⊃2;, clamping torque 0.8Nm max. |
|
Connection casing |
plastic according to UL94 V-0, black |
|
Mounting |
clip for 35mm DIN rail, EN 50022 |
|
Fitting position |
horizontal |
|
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
|
Protection type/Protection class |
IP20 / I (earthed) |
|
Axial fan, ball bearing |
airflow see table |
|
service life 50 000h at 25°C (77°F) |
|
|
Connection (axial fan) |
2-pole screw connector 2.5mm⊃2; (L2/N2) |
|
Approvals |
UL File No. E187294 (VDE: 230VAC only) |
Important! Heater may only be operated together with fan. Danger of overheating!
|
Art. No. 230VAC, 50/60 Hz |
Art. No. 120VAC, 50/60 Hz |
Heating capacity |
Airflow min., free flow |
Dimensions |
Weight (approx.) |
|
03102.0-00 |
03102.9-00 |
100W |
35m⊃3;/h |
80 x 112 x 47mm |
0.60kg |
|
03103.0-00 |
03103.9-00 |
150W |
35m⊃3;/h |
80 x 112 x 47mm |
0.60kg |
|
03113.0-00 |
03113.9-00 |
200W |
108m⊃3;/h |
119 x 151 x 47mm |
0.90kg |
|
03114.0-00 |
03114.9-00 |
300W |
108m⊃3;/h |
119 x 151 x 47mm |
0.90kg |
|
03115.0-00 |
03115.9-00 |
400W |
108m⊃3;/h |
119 x 151 x 47mm |
0.90kg |
