Description

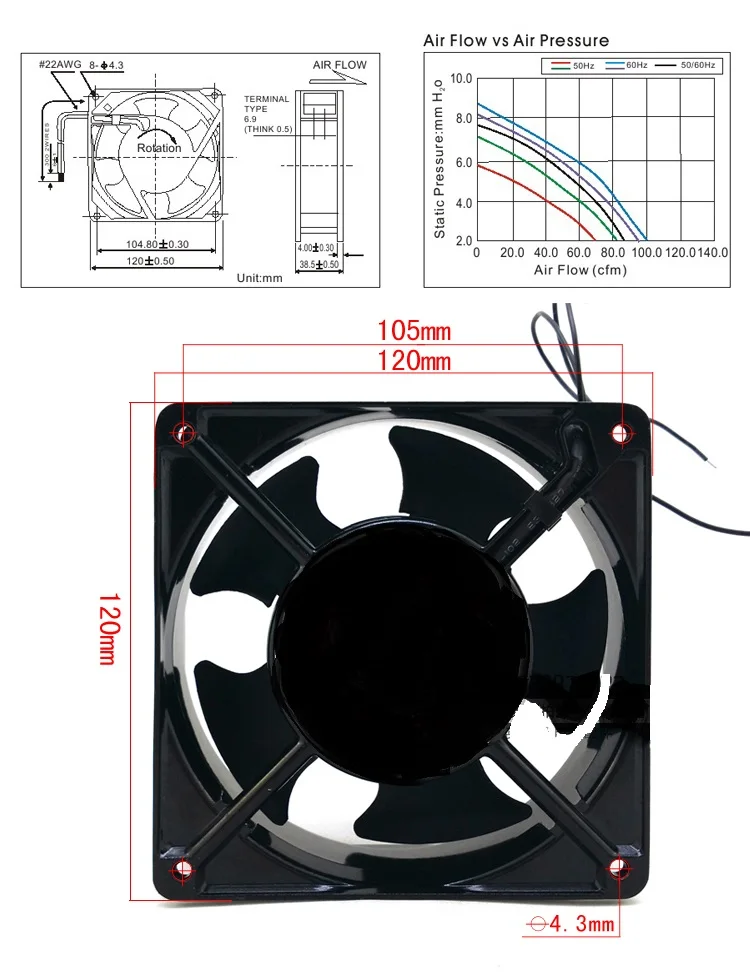

[Product name] Taiwan’s quasi-built AC AC fans Size: 120x120x38MM Type: P / N2123HBL bearing structure: B: BaLL (ball bearing) Voltage: 110 ~ 120V AC / 220 ~ 240V AC Power: 29/31 (W) Frequency: 50/60 (Hz) rotational speed: 2700-3100 (R / min) air volume: 2.68 / 3.25 (m3 / min) Noise: 43/46 (dB-A) Weight: 550 (g) Package: no individual packaging, general carton packaging 40/1 FCL; Frame: black painted aluminum alloy corrosion, moisture-proof structure; Wind leaves: plastic injection molding, PBT + 30% glass line + VO grade flame retardant; Bearings: High-precision, long life and low noise imported ball bearings; Insulation: enameled wire class B insulation, temperature 120 degrees Celsius; Connection: Leaded (line length 25CM) Insulation resistance: 500 megohms minimum; Withstand Voltage: leakage current 0.5mA withstand voltage 1500V / 1 min;. operating voltage: 110V (voltage range: 85V ~ 125V) operating voltage: 220V (voltage range: 185V ~ 245V) Fan rotation: counterclockwise as viewed from the fan; Ambient temperature – 40 ~ 70 B 🙁 ball bearing) Life: Operating ambient temperature 40 B 🙁 ball bearing) 50000 (h)
-
product details
