Description

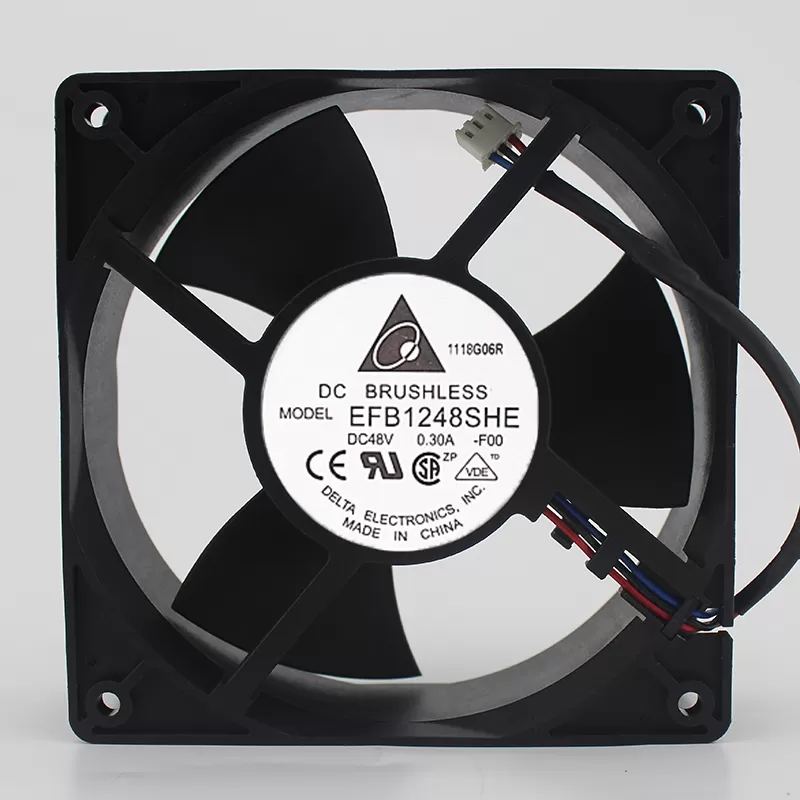

MODEL: EFB1248SHE-FOO
size:120 * 120 * 38MM
Voltage:DC48V
Current: 0.30A
Number of revolutions:3700 RPM
Air volume: 141.96CFM
Wind pressure:0.520 in H2O
Weight: 0.07kg
noise: 52.5 dB (A)
Speed:stand by
interface:Motherboard 3P
Line length: 25cm
Life: 8.0000 hours (25 °, 45 ~ 85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80,000 hours
