Descrizione
“Nidec UltraFlo” series and the standard cooling fan cooling fan series; green, high air flow, high static pressure, high efficiency and low noise, low vibration.
Brand Nidec Nidec
Manufacturer Nidec Corporation (NIDEC CORPORATION)
Manufacturer headquarters Kyoto Prefecture Kyoto City Town Hall of Nam Kuze 338 gu
made in China
Dimensioni: 60 * 60 * 25mm

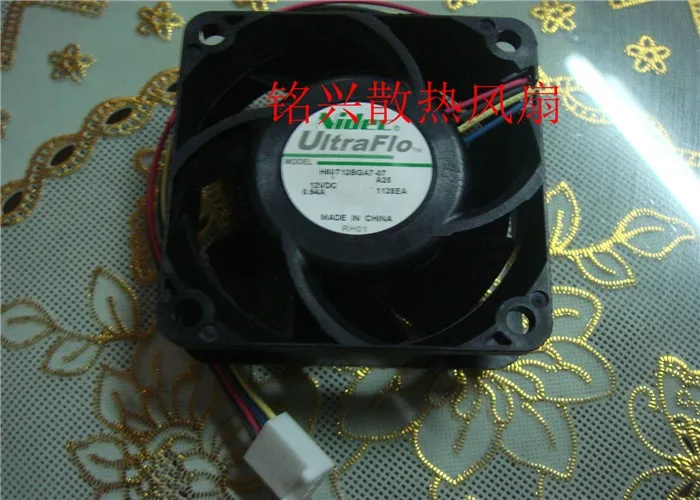

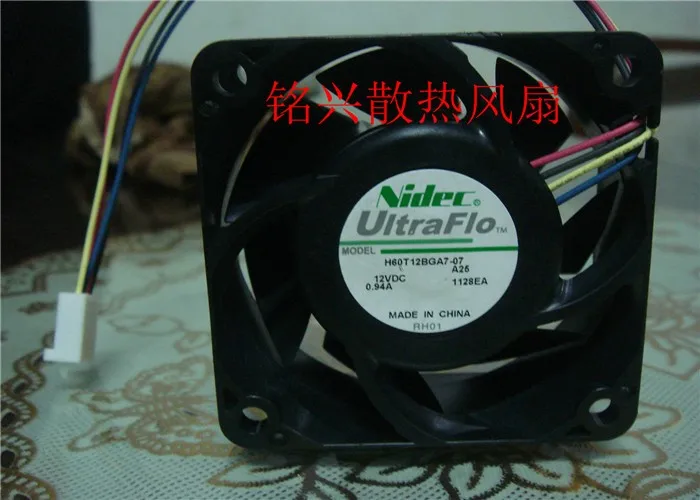

Modello: H60T12BGA7-07
Tensione nominale: 12V 0.94A 3Y12DA
Tensione operativa: 10.2-13.8V
Current Rating: 0.94UN
Plug: 4P standard computer interfaces, linea 15 cm long
Fan Frame: stampaggio a iniezione, PBT + 30% fibra di vetro + VO grade flame retardant;
Lama: plastic injection molding, PBT + 30% fibra di vetro + VO grade flame retardant;

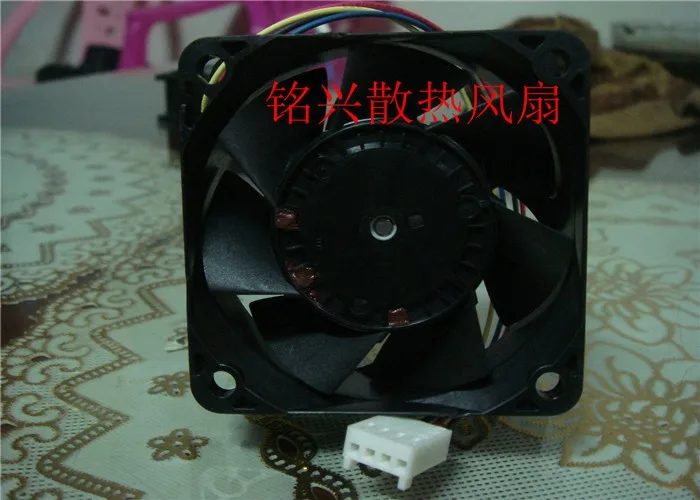

Rotazione della ventola: counterclockwise as viewed from the direction of the blades;
Operating temperature: -10 gradi Celsius a +70 gradi Celsius;
Temperatura di conservazione: -40 gradi Celsius a +70 gradi Celsius;
Cuscinetti: doppio cuscinetto a sfere di precisione;
Power range: plus or minus 15% of the rated power;
Resistenza di isolamento: greater than 500 megohms;
Withstanding voltage: Meeting the leakage current 0.5mA 500V / 1 min;
Vita lavorativa: ambient temperature of 25 gradi 80,000 ore.
